 Post subject: Viscous Heater Delete
PostPosted: Mon Nov 09, 2020 1:37 am
Offline
Moderator
Moderator
User avatar

Joined: Sat Aug 24, 2013 11:36 pm
Posts: 5795
Location: Central GA
Developing a "Viscous Heater Delete" Kit.
Let me know if anyone else is interested in removing their VH for good.
Maintains belt geometry, allows use of OEM belt.
All direct bolt in place of OEM viscous heater, no modifications required.
Thoughts welcome,


_________________
Supporting Vendor and Moderator of LOST
05 Jeep Liberty CRD Limited :JEEPIN:
Ironman Springs/Bilstein/shocks
Yeti StgIV Hot Tune
Sasquatch BatteryTray
No FCV/EGR
Samcos/ProVent
SunCoast/Transgo
Carter Intank-pmp
2mic.Sec.Fuel Filter
Flowmaster/NO CAT
V6Airbox
GM11 bld. fan/NAPA HDclutch
IronrockArms/wwdieselMount


Top
 Profile

 Post subject: Re: Viscous Heater Delete
PostPosted: Mon Nov 09, 2020 5:07 pm
Offline
LOST Newbie

Joined: Sun Aug 13, 2017 4:05 pm
Posts: 84
Great idea.

I have been stocking up on spares including a Viscous Heater but a delete kit would be a positive addition especially if it uses the stock serpentine belt.

_________________
2006 Limited since factory new
HDS 001 with 203° Stant
MBRP Cat Back - Stainless
Fumoto F102
ARB bumper
Bilsteins
Michelin Defender LTX 235/70/R16


Top
 Profile

 Post subject: Re: Viscous Heater Delete
PostPosted: Mon Nov 09, 2020 5:44 pm
Offline
Moderator
Moderator
User avatar

Joined: Sat Aug 24, 2013 11:36 pm
Posts: 5795
Location: Central GA
snowballs wrote:
Great idea.
I have been stocking up on spares including a Viscous Heater but a delete kit would be a positive addition especially if it uses the stock serpentine belt.

It will be a direct replacement for the viscous heater.
Will use stock serpentine belt and one rubber hose going from the thermostat to the viscous heater is removed from the thermostat and discarded.
Then the outlet hose is removed from the viscous heater, shortened about 1 inch and connected back in place to the thermostat where the first hose was removed. (supplies hot coolant to heater core)
Will post some pictures of new hose arrangement later tonight. :wink:

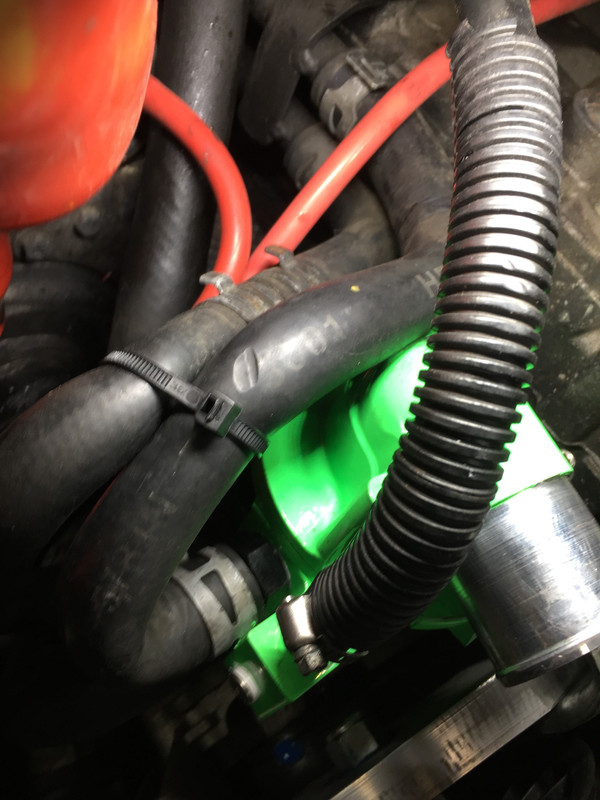

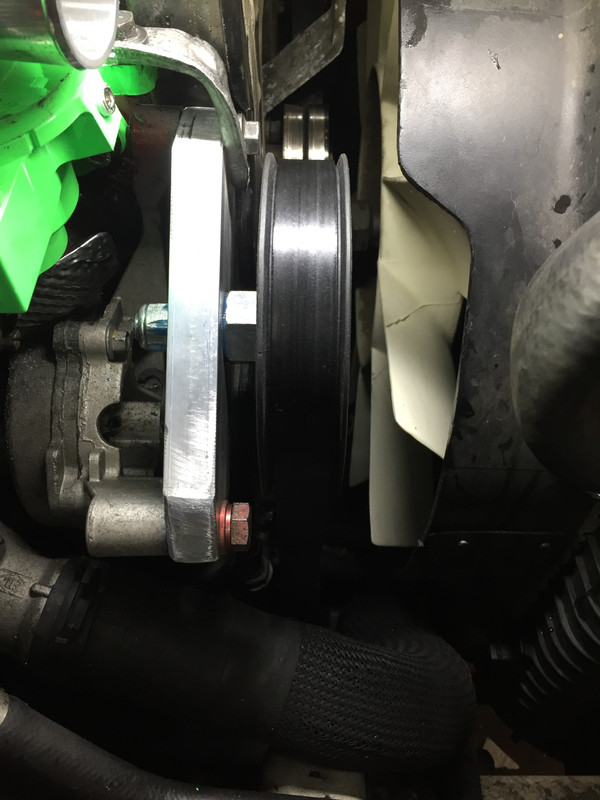

First is a picture of the new hose arrangement, coolant leaves thermostat housing and goes directly to heater core inlet no longer going through viscous heater which is no longer there. Second picture shows belt alignment. Worked a long time on getting the spacing/belt alignment just perfect.

Image---

_________________
Supporting Vendor and Moderator of LOST
05 Jeep Liberty CRD Limited :JEEPIN:
Ironman Springs/Bilstein/shocks
Yeti StgIV Hot Tune
Sasquatch BatteryTray
No FCV/EGR
Samcos/ProVent
SunCoast/Transgo
Carter Intank-pmp
2mic.Sec.Fuel Filter
Flowmaster/NO CAT
V6Airbox
GM11 bld. fan/NAPA HDclutch
IronrockArms/wwdieselMount


Top
 Profile

 Post subject: Re: Viscous Heater Delete
PostPosted: Tue Nov 10, 2020 11:14 pm
Offline
Moderator
Moderator
User avatar

Joined: Sat Aug 24, 2013 11:36 pm
Posts: 5795
Location: Central GA
Install is complete, no more viscous heater.
Additional pictures.
PM me if you would like to to get rid of your viscous heater.



_________________
Supporting Vendor and Moderator of LOST
05 Jeep Liberty CRD Limited :JEEPIN:
Ironman Springs/Bilstein/shocks
Yeti StgIV Hot Tune
Sasquatch BatteryTray
No FCV/EGR
Samcos/ProVent
SunCoast/Transgo
Carter Intank-pmp
2mic.Sec.Fuel Filter
Flowmaster/NO CAT
V6Airbox
GM11 bld. fan/NAPA HDclutch
IronrockArms/wwdieselMount


Top
 Profile

 Post subject: Re: Viscous Heater Delete
PostPosted: Wed Nov 11, 2020 3:07 pm
Offline
LOST Newbie

Joined: Sun Aug 13, 2017 4:05 pm
Posts: 84
Looks good,

Do you need to drain some coolant or can you just clamp off the hoses during install?

_________________
2006 Limited since factory new
HDS 001 with 203° Stant
MBRP Cat Back - Stainless
Fumoto F102
ARB bumper
Bilsteins
Michelin Defender LTX 235/70/R16


Top
 Profile

 Post subject: Re: Viscous Heater Delete
PostPosted: Wed Nov 11, 2020 5:06 pm
Offline
Moderator
Moderator
User avatar

Joined: Sat Aug 24, 2013 11:36 pm
Posts: 5795
Location: Central GA
snowballs wrote:
Looks good,
Do you need to drain some coolant or can you just clamp off the hoses during install?

Thanks!
I was installing a new thermostat at the same time and lost about two quarts of coolant. Did not clamp off anything.
I just simply topped it off with some fresh G-05 50/50 mix.

If you were only doing just the viscous heater removal, you could be real quick on swapping the outlet hose from the VH over to the thermostat connection you should not loose hardly any coolant. :D

_________________
Supporting Vendor and Moderator of LOST
05 Jeep Liberty CRD Limited :JEEPIN:
Ironman Springs/Bilstein/shocks
Yeti StgIV Hot Tune
Sasquatch BatteryTray
No FCV/EGR
Samcos/ProVent
SunCoast/Transgo
Carter Intank-pmp
2mic.Sec.Fuel Filter
Flowmaster/NO CAT
V6Airbox
GM11 bld. fan/NAPA HDclutch
IronrockArms/wwdieselMount


Top
 Profile

 Post subject: Re: Viscous Heater Delete
PostPosted: Fri Nov 20, 2020 1:51 am
Offline
LOST Newbie

Joined: Tue Sep 22, 2015 4:56 am
Posts: 81
Looking great, man! Nice

_________________
2007 Jeep Wrangler JK 2dr 4x4 Rubicon


Top
 Profile

 Post subject: Re: Viscous Heater Delete
PostPosted: Fri Nov 20, 2020 11:49 am
Offline
Moderator
Moderator
User avatar

Joined: Sat Aug 24, 2013 11:36 pm
Posts: 5795
Location: Central GA
Added a post in the vendor section: » Trading Post » Vendors Alley...for Jeep & Off Road related Items only...

See this:
Viscous Heater Delete Kits Now Available
