Hey all

I noticed that almost everybody's Liberty on here looks like the front sits higher than mine. Its a 2004 Sport with a Rusty's 2.5in Lift. The front seems to sit lower than most liberty's on here and just barely higher than stock libertys. Can I just add a 2in Spacer on top of the 2.5in Lift and re-align it and call it a day?

Or should I just get the springs and struts from a different lift and see how that looks?

Thanks,

Ryan

_________________
04 Liberty Sport 4x4;
3.7L V-6
Amsoil Filter
Rusty's 2.5in Lift
Lund Air Deflector
Hella 500 Series Lights (6)
Sirius Sat. Radio; Garmin GPS System
Amer. Racing ATX Chamber w/Teflon; Goodyear Wrangler Silent Armor 265/70/16

Your Rusty springs are sagging, because it has the same spring rate as stock (310lbs), better off getting OME Heavy Duty springs (400lbs).

_________________
2002 Jeep KJ Sport 3.7L 4x4

245/75-16 Mastercraft Courser HSX, 16x7 Cragar, 2" OME MD Lift, ARB Bumper
AEM Brute Force Cold Air Intake, Flowmaster Super 44 Muffler

Currently working on: Full service on transmission & bed-lining ARB bumper

viewtopic.php?f=43&t=84650

well it is an 04 and you know that it is lowered after the year 02 due to high center hieght. but yeah i does sound like your springs are sagging. how long have they been on, or are you using the stockers and the spacer? i have the rusty's with a clevis lift and here is what you get---

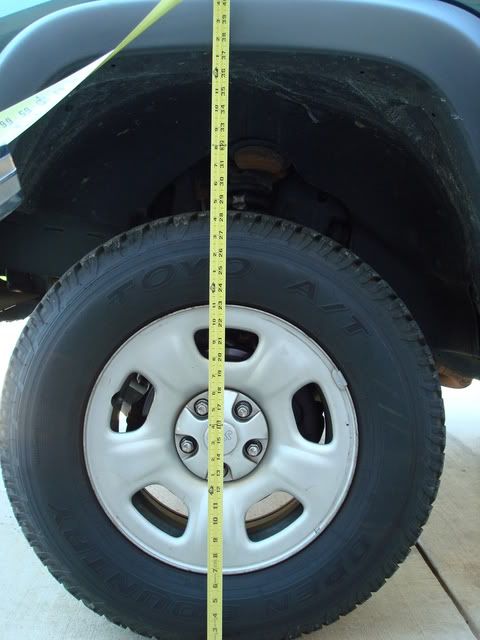

with the 31's


with stockers and a 245 in front

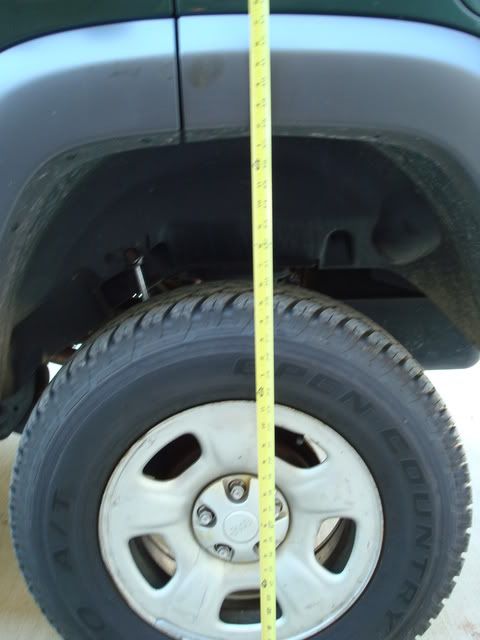

and rear


yeah, mines an 02

measure from the center of the hub to the bottom af the flare and let us know what that is.
If you have had the Rustys on for some time they may be sagging for sure.
Did you do a clevis when you put the springs in, that maybe a difference as well.
I would not go stacking say an OTT on a set of aftermarket springs, more trouble than what you want to deal with, already SEVERAL discussions on this already on here

_________________
MUDD'S MOTORSPORT'S We do IFS lift installs ,
03 OVERLAND EDITION /Kilby-Skidrow-Mopar-4XGuard skids/ 2.5 inch TOTAL CONTROL JBA coilovers -JBA Arms/MOABS-31 FALKEN WILDPEAK AT3W / 4.10's etc, 04 Kilimanjaro Edition loaded, plus 05 KJ limited

Thanks for the replies.

The lift was done at 12,000 miles in August of 2005, a year after we bought it. 50,000 miles now. We didn't do the clevis lift with the install, just the Rusty's lift.

From the center of the hubcap to the bottom of the flare is 21 inches exactly.

No spacers right now, just Rusty's lift.

So should I get the OME Heavy Duty springs in the front as well as the shocks and see where that puts it at?

Thanks again guys!

Ryan

_________________
04 Liberty Sport 4x4;
3.7L V-6
Amsoil Filter
Rusty's 2.5in Lift
Lund Air Deflector
Hella 500 Series Lights (6)
Sirius Sat. Radio; Garmin GPS System
Amer. Racing ATX Chamber w/Teflon; Goodyear Wrangler Silent Armor 265/70/16

I would replace them with OME HD, it is a much better quaility coil and I would get Rancho Struts RSX17505, and then also do a 3 ring clevis

_________________
1980 Jeep CJ7 Buggy
SOA, D44/ FF14B, SBC 350, SM465, NP205, 108" WB, 37" MTs

http://www.dpgoffroad.com/
http://www.ucora.org/
http://www.christianoffroad.com/
http://jeepinbyal.com/

Alright thanks guys...probably going to have to get it aligned after that right? I searched for the clevis lift but didn't find a write up with pictures, anybody have one out there?

Thanks again
Ryan

_________________
04 Liberty Sport 4x4;
3.7L V-6
Amsoil Filter
Rusty's 2.5in Lift
Lund Air Deflector
Hella 500 Series Lights (6)
Sirius Sat. Radio; Garmin GPS System
Amer. Racing ATX Chamber w/Teflon; Goodyear Wrangler Silent Armor 265/70/16

clevis is easy to do , loosen the clevis bolt use a pry bar to move the strut assembly up some and retighten to 90/100 lbs do the same each side
yes anytime you change anything in the front end get it realigned

_________________
MUDD'S MOTORSPORT'S We do IFS lift installs ,
03 OVERLAND EDITION /Kilby-Skidrow-Mopar-4XGuard skids/ 2.5 inch TOTAL CONTROL JBA coilovers -JBA Arms/MOABS-31 FALKEN WILDPEAK AT3W / 4.10's etc, 04 Kilimanjaro Edition loaded, plus 05 KJ limited
