Hannibal roof rack for the KJ.

CRD Joe · **Posted:** Thu Nov 11, 2010 5:20 pm

I found this on an Australian website. Im sure the gent who owns it wouldnt mind me posting the pics.

This is what Im ordering. Hannibal roof rack with a 2.0 meter awning and a high lift lack mount.

I really like this.

JeepinJarhead03 · **Posted:** Thu Nov 11, 2010 5:34 pm

i really like that

i'd /prefer/ for it to be on the back tho, since if its rainin i usually crawl up in the back

it gave me ideas

bugnout · **Posted:** Thu Nov 11, 2010 6:50 pm

I want one, but don't want to pay those high prices. Why doesn't some fabricator (Boiler you listening?) in the U.S. make one just like this in Aluminum. I'll be first in line...

CRD Joe · **Posted:** Thu Nov 11, 2010 8:38 pm

That is aluminum, but I understand your point. They are expensive.

liquidxit2 · **Posted:** Fri Nov 12, 2010 12:09 pm

Would have been awesome for my camping trip.

yodejt02 · **Posted:** Fri Nov 12, 2010 2:13 pm

bugnout wrote:

I want one, but don't want to pay those high prices. Why doesn't some fabricator (Boiler you listening?) in the U.S. make one just like this in Aluminum. I'll be first in line...

He can!!! I got a custom light bar on my Boiler made aluminum roof rack to accomidate for my putting my snowboards on it. All he needed was the Thule snowboard rack that I was using and a snowboard. He was able to come up with the correct geometry to fit the lights and the snowboards! I think he could accomidate for putting a canopy attachment on if you could find the canopy assembly for him to weld onto the rack. His base large rack can be customized to what ever your needs it just takes some time and a little more cash. :JEEPIN:

Sport · **Posted:** Sun Nov 14, 2010 9:40 pm

CRD Joe wrote:

That is aluminum, but I understand your point. They are expensive.

How much is it costing you?

2006 KJ · **Posted:** Sun Nov 14, 2010 10:22 pm

that thing is awesome! although i dont really know what all it could be used for. i mean camping it would be nice to stay out of the rain.. but it's not near large enough to put a tent under. it would be outstanding to have a picnic under.. but seems a bit elaborate for that. What idea's do you have for it? im sure there is a lot i'm missing.

CRD Joe · **Posted:** Mon Nov 15, 2010 1:39 am

Well there are options....

DirtyKK · **Posted:** Mon Nov 15, 2010 1:43 am

i like how the rack actually covers the extent of the roof

STINGN · **Posted:** Mon Nov 15, 2010 2:17 am

CRD Joe wrote:

Well there are options....

imagine that thing in the wind :shock:

audiboy86 · **Posted:** Mon Nov 15, 2010 1:00 pm

I would take one of these in a heart beat i found a few of the two person types for $750 and wonder if they could be adapted to work with the boiler rack.

LI_KJ · **Posted:** Mon Nov 15, 2010 11:45 pm

yodejt02 wrote:

bugnout wrote:

I want one, but don't want to pay those high prices. Why doesn't some fabricator (Boiler you listening?) in the U.S. make one just like this in Aluminum. I'll be first in line...

He can!!! I got a custom light bar on my Boiler made aluminum roof rack to accomidate for my putting my snowboards on it. All he needed was the Thule snowboard rack that I was using and a snowboard. He was able to come up with the correct geometry to fit the lights and the snowboards! I think he could accomidate for putting a canopy attachment on if you could find the canopy assembly for him to weld onto the rack. His base large rack can be customized to what ever your needs it just takes some time and a little more cash. :JEEPIN:

A while back I contacted Boiler about making a custom rack that would also fit my Yakima snowboard and bike roof racks. But decided to go another route. I am curious to see what you came up with for your Thule snowboard racks and still fit the lights on the front. Any pics of the rack, as I am still thinking of going the custom route when I can afford it.
Thanks.

CRD Joe · **Posted:** Mon Nov 15, 2010 11:53 pm

Sport wrote:

CRD Joe wrote:

That is aluminum, but I understand your point. They are expensive.

How much is it costing you?

Im still waiting on a return to my email. Retail is 1500.00

yodejt02 · **Posted:** Tue Nov 16, 2010 9:46 am

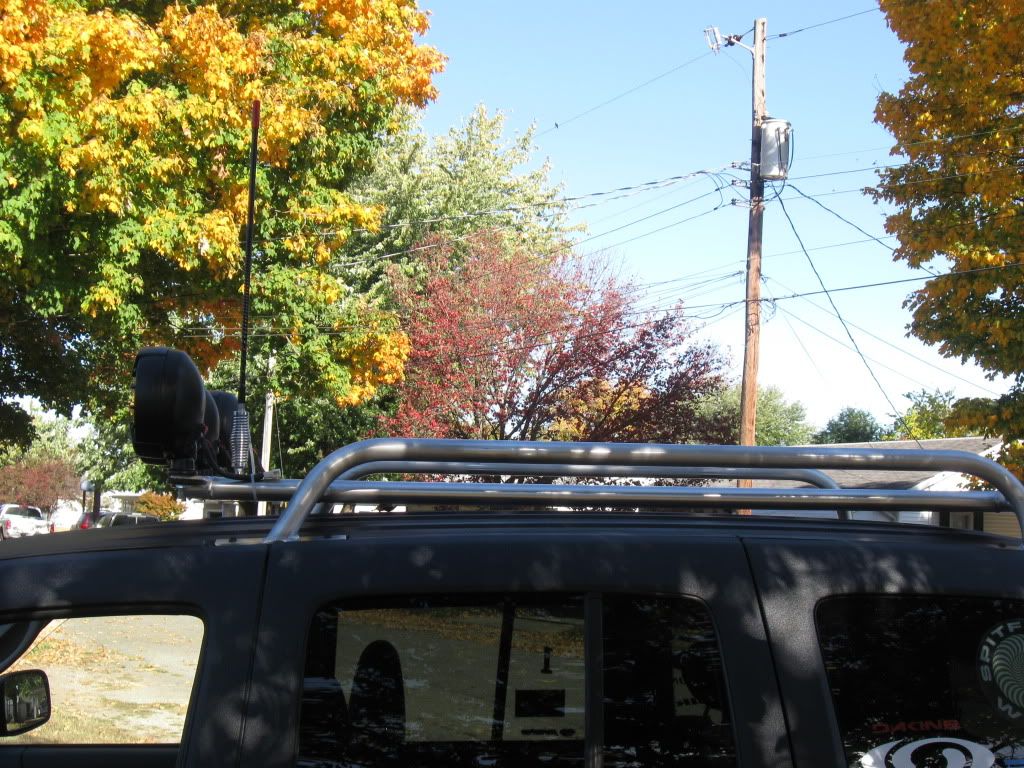

LI_KJ here you go (its alittle dark)

we bumped the lights out about 7 inches from the front of the rack, where normally he would have the light tabs. He took a measure of the lights that I was going to use gave an little more than an inch clearence to the back incase I ever switch lights. On the main part of the rack he measure for mounting points for the snowboard rack by measureing where the bindings would be in comparison with the snowboard rack. Once that measurement was checked out he then welded mounting points onto the rack to bolt down my snowboard rack.

I will see if I cant get some more photos this evening.

LI_KJ · **Posted:** Tue Nov 16, 2010 11:08 am

yodejt02 wrote:

LI_KJ here you go (its alittle dark)

we bumped the lights out about 7 inches from the front of the rack, where normally he would have the light tabs. He took a measure of the lights that I was going to use gave an little more than an inch clearence to the back incase I ever switch lights. On the main part of the rack he measure for mounting points for the snowboard rack by measureing where the bindings would be in comparison with the snowboard rack. Once that measurement was checked out he then welded mounting points onto the rack to bolt down my snowboard rack.

I will see if I cant get some more photos this evening.

Totally would like to see how the snowboard accessory mounts to the rack. Is the Thule rack you have the clamp type http://www.thule.com/en/US/Products/Sno ... 20Top.aspx
Or is it like the upright style? http://www.thule.com/en/US/Products/Sno ... rrier.aspx
I've got a flat top clamp style with round bar mounts. And the bike trays also use the round mount sound imagine I need a different design.

yodejt02 · **Posted:** Tue Nov 16, 2010 12:36 pm

Its the clamp type. I did have to make one concession with this project. With the clamp type using the complete Thule rack system (feet, crossrails, and clamps) you can mount 4 snowboards (base to base). With my new rack I can still do that BUT I would have to take the bindings off of two of the snowboards (the ones facing down).

Its raining today but hopefully when I get home from work it stops of lightens up. Either way I will get some more pics up!

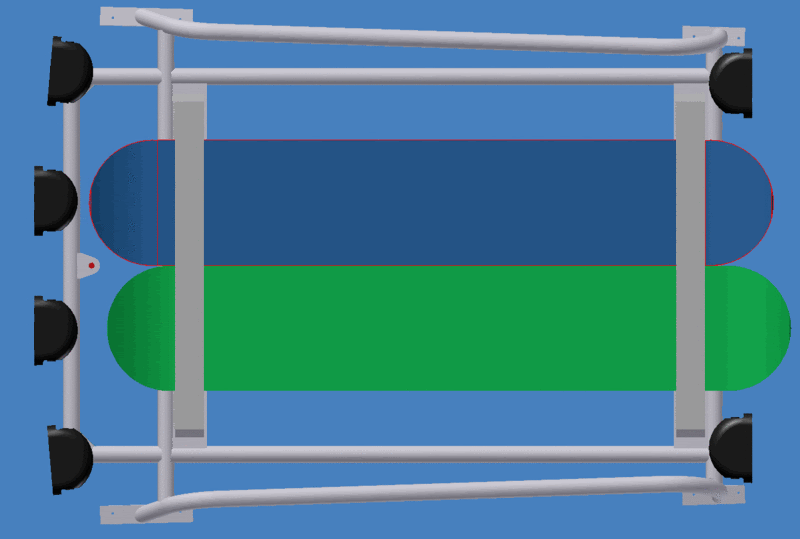

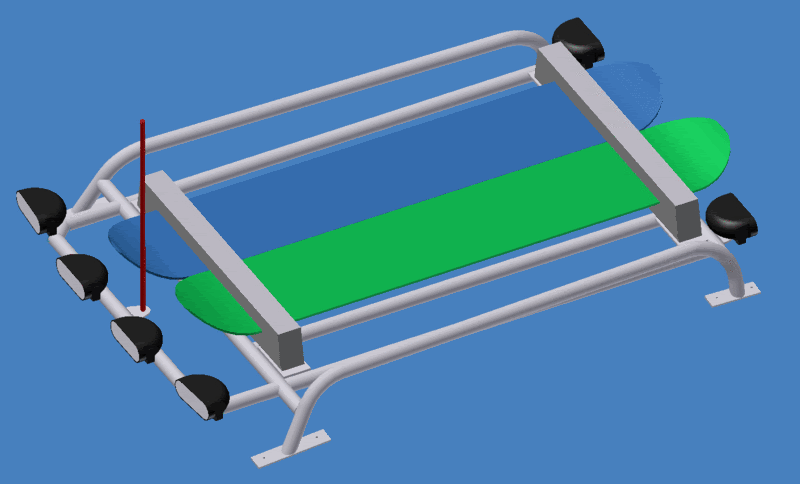

instead of pics I found the actual CAD drawings from Boiler, this should give you a better idea......

tommudd · **Posted:** Thu Nov 18, 2010 4:28 pm

Even though I have a GREAT rack
mmm sounds like Mae West doesn't it
anyways I would like to have one like the Front Runner Wind Cheetah slimline roof rack (FRJEP 4006)
made in South Africa
Equipt Expeditions in Utah can get them I think , need to call Paul and make sure

or if anyone could build a nice flat one like that
or........ :twisted:

infernicus · **Posted:** Thu Nov 18, 2010 5:50 pm

yodejt02 wrote:

]

I think I found my BOILER rack.. That's pretty much exactly what I want..

You can always get a cheap pair of Cross Rails to mount to the top of the rack, so you can mount 4 boards and bindings. (Amazon has a pair for $40.)

How tall are the top of the lights to the roof line?

Also, if you have any other pictures! thanks!!

yodejt02 · **Posted:** Thu Nov 18, 2010 7:59 pm

I will take some measurements on Friday.
