A friend of mine just gave me his tow hooks (he installed a brush guard) so I ordered the plates to hold them on to mine, but I'm not sure how they install, looks like the bumper or something has to be removed? any help or pics would be great.

Thanx

_________________
2003 Timberline green KJ, K&N Intake, vortex exhaust , Jet chip,Panasonic in dash DVD / Kicker Audio system,sirius sat radio, Light force 170's, Garmin GPS, Firestone air bags, Clear corner lights
http://www.cardomain.com/ride/2421676

Depends on the type of 'plate' you got. If you got the U-bolts then you do not need to take the bumper off. If you got the plates that come on the tow-hooks when you get them from the factory then you will need to take the bumper off.

Where did you get the plates?

_________________
LOST KJ'S
Where are you going???
Current Jeep: 2004 Jeep Liberty
-Atlantic Blue
-Air Ride Rear Suspension ; OME/Rustys Lift ; Powertrax Locker ; Moog Lower Ball-Joints ; 245/70/16 Yokohama Geolander A/T-S's on MOABS ; Flowmaster 50 SUV
Lost #007082
http://www.cardomain.com/id/jeepjeepster

once you pop your bumper off theres two caps on each side with a bolt in each, look like metal bump stops like old chrome bumpers had. pop those off and you can put the plates in there

_________________
'05 Black Renegade.
Frankenlifted
front/rear hitch with tow hook/d ring
custom Hella 500 cowl mounted offroad lights.
full tints
Ipod wired up
Possbily the first OIIIO Jeep license plater.
"Full" belly protection....who needs a gas tank skid anyways
Just need a bumper...
http://s180.photobucket.com/albums/x180 ... eRenegade/

How hard is it to get the bumper off? pics

_________________
2003 Timberline green KJ, K&N Intake, vortex exhaust , Jet chip,Panasonic in dash DVD / Kicker Audio system,sirius sat radio, Light force 170's, Garmin GPS, Firestone air bags, Clear corner lights
http://www.cardomain.com/ride/2421676

4 bolts and 4 snaps

_________________
'05 Black Renegade.
Frankenlifted
front/rear hitch with tow hook/d ring
custom Hella 500 cowl mounted offroad lights.
full tints
Ipod wired up
Possbily the first OIIIO Jeep license plater.
"Full" belly protection....who needs a gas tank skid anyways
Just need a bumper...
http://s180.photobucket.com/albums/x180 ... eRenegade/

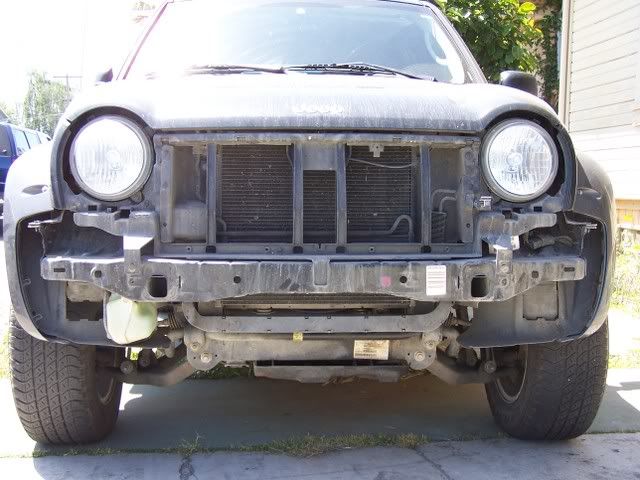

I put the stock hooks on my 03 without taking the bumper off. A ratcheting wrench will help, so will smaller hands. If you have man hands, I think you'll have to take the bumper cover off. Here's what it looks like off.

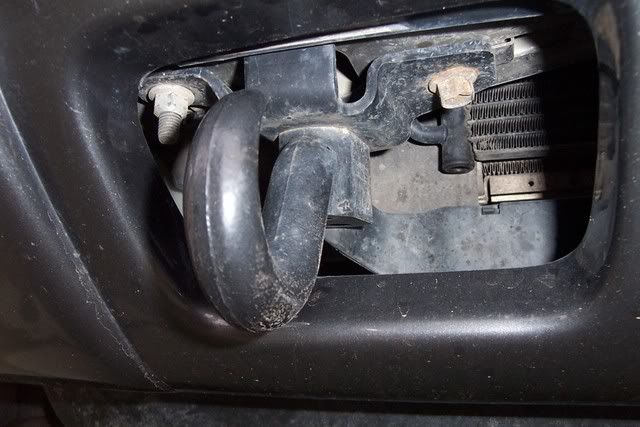

Tow hook

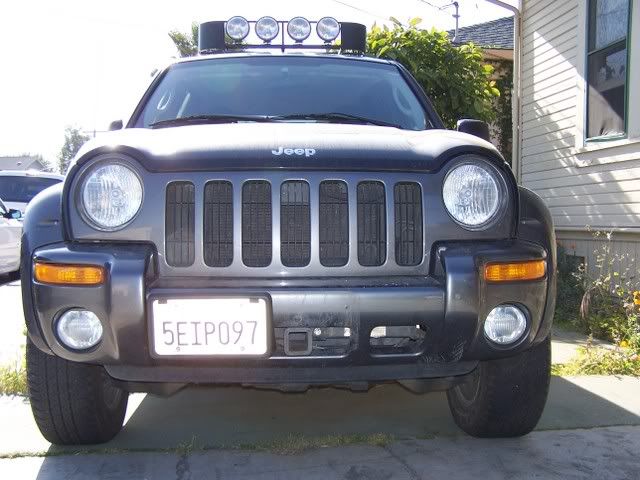

Took off tow hooks and added a bar instead later

_________________
Nanette

03 Freedom with some neat stuff done to it that I learned about here.

Notice what's sitting on the frame. I certainly needed one after pulling the grill and bumper off mine. I suggest you have plenty on hand.

_________________
Sun, Sand, Surf, Freedom and LIBERTY!! Who can ask for more??

'02 Limited 4x4 (since 07/01)
Rene light bar
ARB Bumper
Warn XD9000
Hella Comet 500 lights
255/70R16 Rusty's 2.5" coil lift
Al's arms
2" receiver
Surco rack

I just installed my tow hooks and it was pretty straight forward removing the front bumper.

The grille unclips easily, the bumper was held in place with 4 10mm bolts and I was able to pop out the snap-in rivets and pop them back in place. I ended up drilling out two of the plasic rivets and realised that they didn't have to be drilled (that a flat-head screwdriver would pry them out easily).

There were two bolts inderneath the radiator that I had to get under the vehicle for, but other than that watch that you don't force anything and break any plastic clips.

Also, I used some loctite blue on the bolts just for insurance.

Good luck!
-Mark

_________________
2008 VW Rabbit- 5-speed 5-cylinders
2000 TJ 4-cylinders 5-speed I'll let you know when I figure it out.
2006 Liberty SOLD.

Thanx for all the help, this will be my project for the weekend, I will let you all know how it went, also my new lightforce 170 will be on so I will post some pic's
