OME HD lift on an 07, brake line problems?

loosvelt · **Posted:** Sun Feb 08, 2009 7:31 pm

How worried should I be about my brake lines when I install a OME HD lift on my 07. I remember reading on here somewhere that they are pretty tight. Really don't want to pony up for the SS kit. I believe it is 250+ (wanna save that money for a rock moniter).

dieselenthusiast · **Posted:** Sun Feb 08, 2009 8:46 pm

loosvelt wrote:

How worried should I be about my brake lines when I install a OME HD lift on my 07. I remember reading on here somewhere that they are pretty tight. Really don't want to pony up for the SS kit. I believe it is 250+ (wanna save that money for a rock moniter).

All you need is a brakeline extension

loosvelt · **Posted:** Sun Feb 08, 2009 9:09 pm

is that the same thing as a brake line relocation bracket? if not where do I get an extension kit?

tjkj2002 · **Posted:** Sun Feb 08, 2009 9:18 pm

loosvelt wrote:

is that the same thing as a brake line relocation bracket? if not where do I get an extension kit?

Make your own,very simple to do and way cheaper.You will need to make 2 for your '07,both rear brake lines on the L/R side needs to be extended.

Diesel can post pics of his brake line extensions we made for his Frankinlift.

dieselenthusiast · **Posted:** Sun Feb 08, 2009 10:30 pm

tjkj2002 wrote:

loosvelt wrote:

is that the same thing as a brake line relocation bracket? if not where do I get an extension kit?

Make your own,very simple to do and way cheaper.You will need to make 2 for your '07,both rear brake lines on the L/R side needs to be extended.

Diesel can post pics of his brake line extensions we made for his Frankinlift.

If you need a picture, I can take one tomorrow and post it. Let me know.

loosvelt · **Posted:** Sun Feb 08, 2009 11:51 pm

If you dont mind. Thanks.

Sport · **Posted:** Mon Feb 09, 2009 3:18 pm

This would be great to know, I also don't not want to spend the money on SS line but think it is time to extend them somehow.

jamangus · **Posted:** Mon Feb 09, 2009 7:13 pm

my 07 only needed driverside rear. passenger side had plenty of slack.

2006 KJ · **Posted:** Mon Feb 09, 2009 7:28 pm

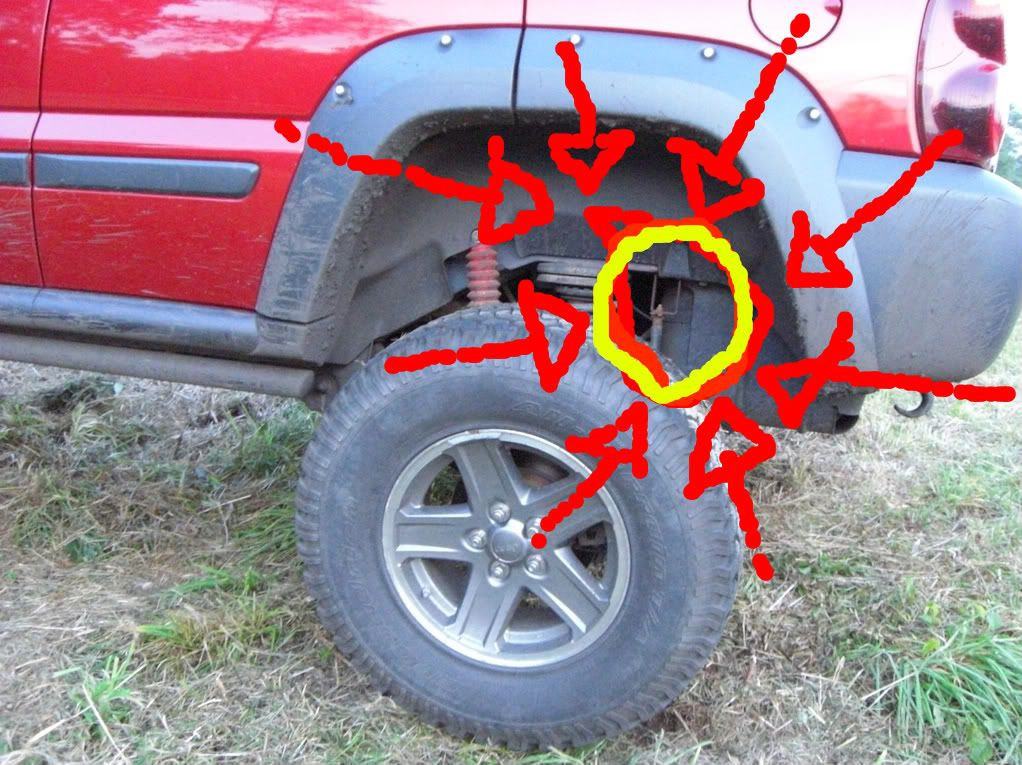

hope this helps

dieselenthusiast · **Posted:** Mon Feb 09, 2009 8:31 pm

loosvelt, it looks like KJ 2006 beat me to it. The bracket is nothing more than 3" X 2" square tubing that Rock Lizard fabricated for me.

tjkj2002 · **Posted:** Mon Feb 09, 2009 9:01 pm

2006 KJ wrote:

hope this helps

You forgot one since the '06-'07 KJ's have 2 brake lines back there.

Quote:

dieselenthusiast

loosvelt, it looks like KJ 2006 beat me to it. The bracket is nothing more than 3" X 2" square tubing that Rock Lizard fabricated for me.

We made 2 brake line extensions,both on the R/R side when we installed your FrankinLift.

Sport · **Posted:** Tue Feb 10, 2009 3:42 pm

dieselenthusiast wrote:

loosvelt, it looks like KJ 2006 beat me to it. The bracket is nothing more than 3" X 2" square tubing that Rock Lizard fabricated for me.

Do you have a picture of the square tubing and what it looks like connected to the brake line? A picture speaks a thousand words.

dieselenthusiast · **Posted:** Tue Feb 10, 2009 6:36 pm

Here are the photos that tjkj2002 is talking about. Both brake line extension brackets are on the rear driver side.

loosvelt · **Posted:** Tue Feb 10, 2009 11:06 pm

Wow, that is alot more simplistic then I would have imagined. Thanks. How much more likely is that to get snagged on something or ripped off?

dieselenthusiast · **Posted:** Tue Feb 10, 2009 11:21 pm

loosvelt wrote:

Wow, that is alot more simplistic then I would have imagined. Thanks. How much more likely is that to get snagged on something or ripped off?

There is no need to worry about snagging, the extension brackets are tucked high enough that it shouldn't be a problem, or should I say no more exposed than where the factory had them mounted. Either way, you don't want banjo strings for brake lines.

2006 KJ · **Posted:** Tue Feb 10, 2009 11:27 pm

i only have the one that i showed.. and as you can see that's at almost full flex and it's not bangoed... i've never heard of anyone using a 2nd brake line relocation bracket... but i guess if i lose my back brakes someday i'll know what needs done!

Sport · **Posted:** Wed Feb 11, 2009 9:47 am

2006 KJ wrote:

i only have the one that i showed.. and as you can see that's at almost full flex and it's not bangoed... i've never heard of anyone using a 2nd brake line relocation bracket... but i guess if i lose my back brakes someday i'll know what needs done!

Dude, not to go off topic but do you have a larger pic of your avator? Looks sick!
