Chain Jingle Sound While Driving

HedsIc · **Posted:** Sat Jun 15, 2013 12:26 pm

I posted this over on JeepKJ so I apologize if it's repetative.

I have this weird jingling sound. It's not just coming from just one side but from both the passenger front and driver front side. It's like an oscillating chain jingle sound. I cannot hear it at all driving unless I'm near a median or curb and the sound bounces off. It started pretty subtle but it appears to be getting louder.

I recently got the rotors and pads replaced about a month and a half/2 months ago. Could this be an issue with that? Or does it sound like it may be something else?

I'm still learning as I go so I don't even really know what to look for if I get down there to look.

If it helps I'll try to get a video taken of it. Not sure if I can or if it will just sound like wind blowing but I'll try.

John3:17 · **Posted:** Sat Jun 15, 2013 12:40 pm

Front drive shaft cv joint

There's other articles on here dealing with this and its replacement. Part can be bought online for about $60 vs about $175 at napa.

HedsIc · **Posted:** Sat Jun 15, 2013 4:25 pm

John3:17 wrote:

Front drive shaft cv joint

There's other articles on here dealing with this and its replacement. Part can be bought online for about $60 vs about $175 at napa.

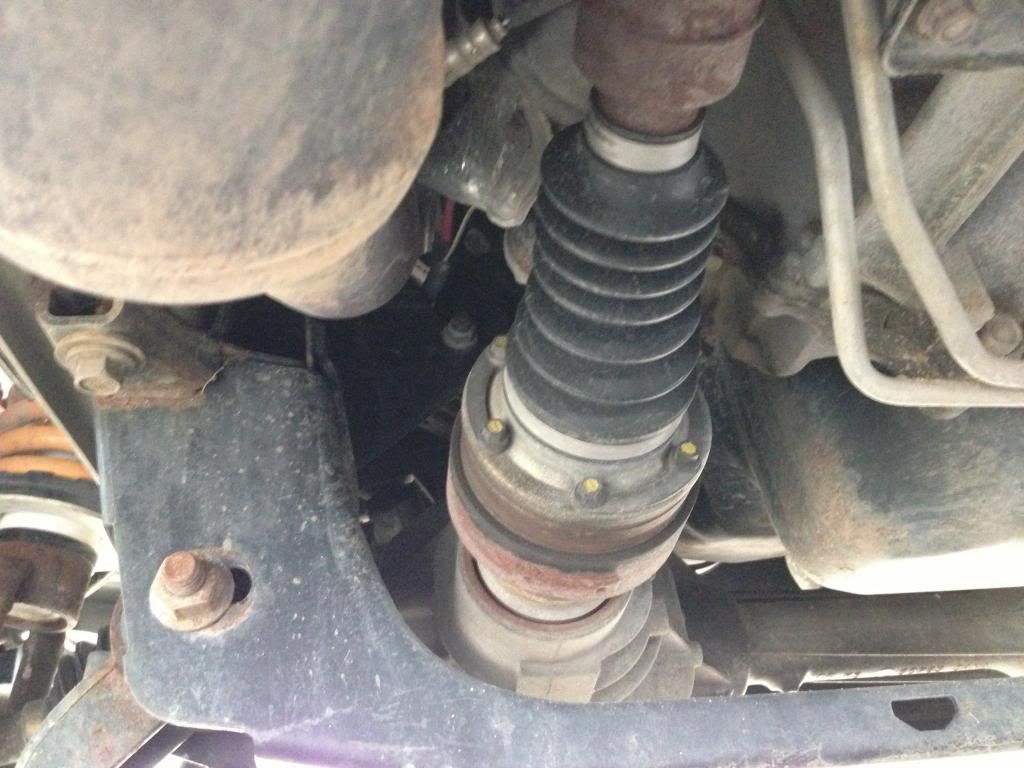

I assume this is what I am looking for? How do I tell if it needs replaced? The black boot seems all there.
Is this what I'm looking for? And if so what should I look at to see if it is the cause? I've read to check if the black boot is ripped.

John3:17 · **Posted:** Sat Jun 15, 2013 4:43 pm

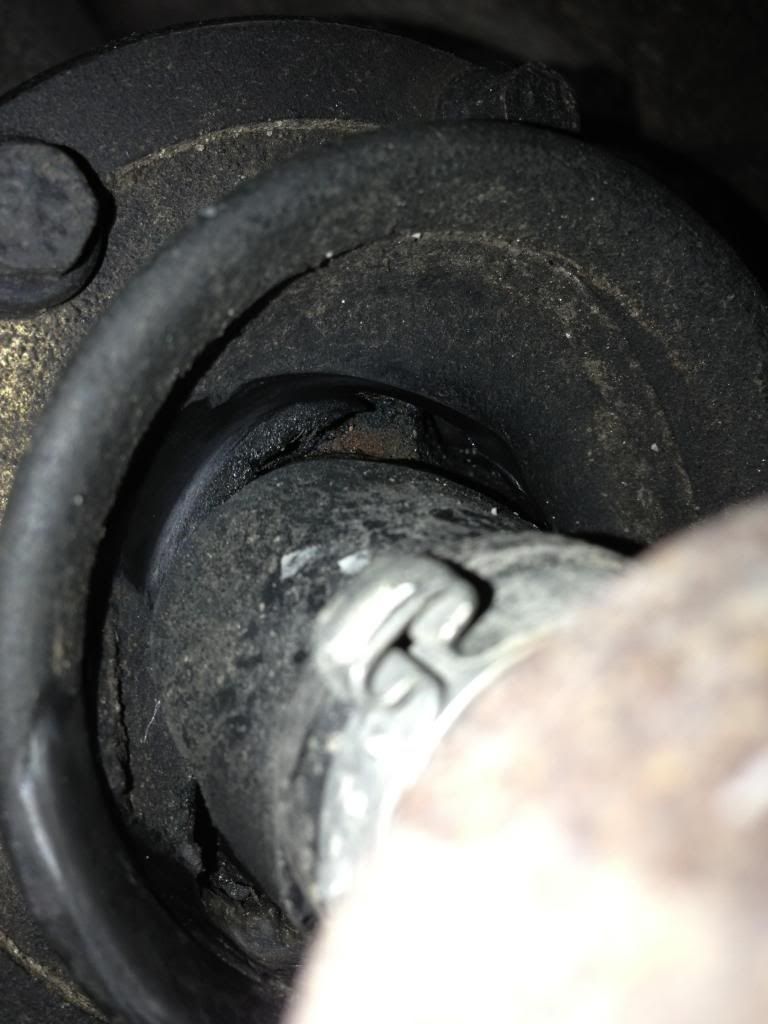

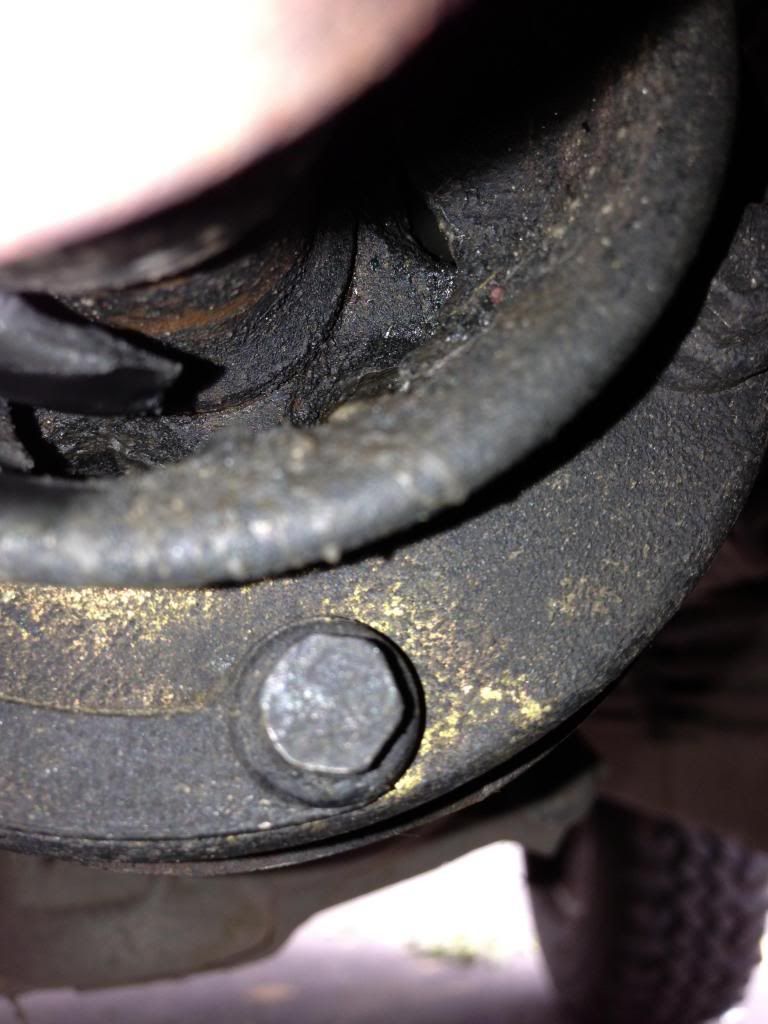

Check other end at transfer case

HedsIc · **Posted:** Sat Jun 15, 2013 4:55 pm

John3:17 wrote:

Check other end at transfer case

Yikes!

Safe to say I found the issue lol time to search how-to's

infernicus · **Posted:** Mon Jun 17, 2013 1:03 am

Exactly the sound mine made, and how I described it.
Mine looked the same way too.
Here is all the info you need.
Good luck.
viewtopic.php?f=16&t=56917&start=0

dude1116 · **Posted:** Wed Jun 19, 2013 9:05 am

So familiar... :goink:

4x4bullet · **Joined:** Mon Jul 01, 2013 7:50 pm **Posts:** 17

Hey fellas great write up my question is I'm having a sound also when I drive from like 20 mph up its makes a vibrating sound then goes away when I slow down back to 20mph to stop it does it again for a split second could this be my transfer case head going bad also?

JIMMY JEEP · **Posted:** Sat Oct 05, 2013 4:33 pm

Does the 2.8 crd use the same inner cv part as the petrol versions ? Think your description of fault may be what I'm experiencing , will get under jeep I'm next couple of days , seen some cv 's on eBay and want to be sure it will fit my crd.
Thanks

JIMMY JEEP · **Posted:** Sun Oct 06, 2013 11:53 am

Popped under jeep earlier , and mine is shot too.

JIMMY JEEP · **Posted:** Wed Oct 09, 2013 2:20 pm

Fitted a new cv joint today , old one was shot with lots of play and not a lot of grease left. Wasn't too bad of a job , more fiddly than anything else.

sooty · **Joined:** Fri Jun 05, 2015 4:33 am **Posts:** 10

Got something very similar only under acceleration from about 40km/h up, then when I take my foot off the gas the sound stops. CV joint symptom?

Arkie · **Posted:** Tue Jun 16, 2015 8:13 am

Had a customer in last week with the same issue. When he called he said bad CV axle. When we got it on a lift it was the driveshaft. Quite a lot of difference in price, axle about $60, drive shaft bumping $400!

Easy enough to install, bolted in place on both ends and plenty of room to slide it out.

Bob
