 Post subject: ATH WINCH BUMPERS 2008-2012 JEEP LIBERTY
PostPosted: Tue Apr 05, 2016 11:57 pm
Offline
Lifetime Member & Advertising Vendor
Lifetime Member & Advertising Vendor
User avatar

Joined: Mon Sep 06, 2010 5:52 pm
Posts: 2204
Location: NEVADA
At The Helm front winch bumpers for the 2008-2012 Jeep Liberty KK are bolt on replacements for the flimsy plastic factory 'bumper' and designed to give maximum approach angle, superior strength and rugged looks. Built heavy duty from cnc cut 3/16" HRPO steel plate with 1/4" mounts. 3/4" thick shackle tabs, slots for Hi-Lift jacking points, two light tabs (center hoop only) AND integrated radiator/power steering cooler skid plate come STANDARD on every bumper along with all grade 8 mounting hardware. The winch bumper option features a 1/4" thick recessed winch plate with standard 4.5"x10" bolt pattern welded directly to the mounts for maximum strength. Uses EIGHT solid bolt locations in the unibody 'frame' but only requires drilling one hole for the bumper and two holes for the turn signal brackets . Ships bare steel, ready for the coating of your choice. These are built to order, which allows them to be built to your specs! Just choose your hoop option.

All winch bumpers now include holes for flush mount LED pod lights. All flush mount LEDs including Rigid and import will fit the holes. The radiator skid has also been changed to have small ATH logo instead of the round holes.

Bumper orders are taken on a deposit system. It is $100 to take your order, and the balance plus shipping due upon completion. Payments are taken through PayPal, if you are ready to order contact me at ATHFABRICATION@hotmail.com and I will send you an invoice..

If you have any questions, would like a shipping quote, or lead time estimate email at ATHFABRICATION@hotmail.com

Pricing: (plus shipping)

Winch Bumper: $835

-Add center hoop $85
-Add prerunner hoop $135

INCLUDED ON ALL FRONT BUMPERS
-Radiator Skid
-Shackle Tabs
-Slots for Hi-Lift
-Light tabs on center hoop
-Holes for flush mount LED's
-All hardware

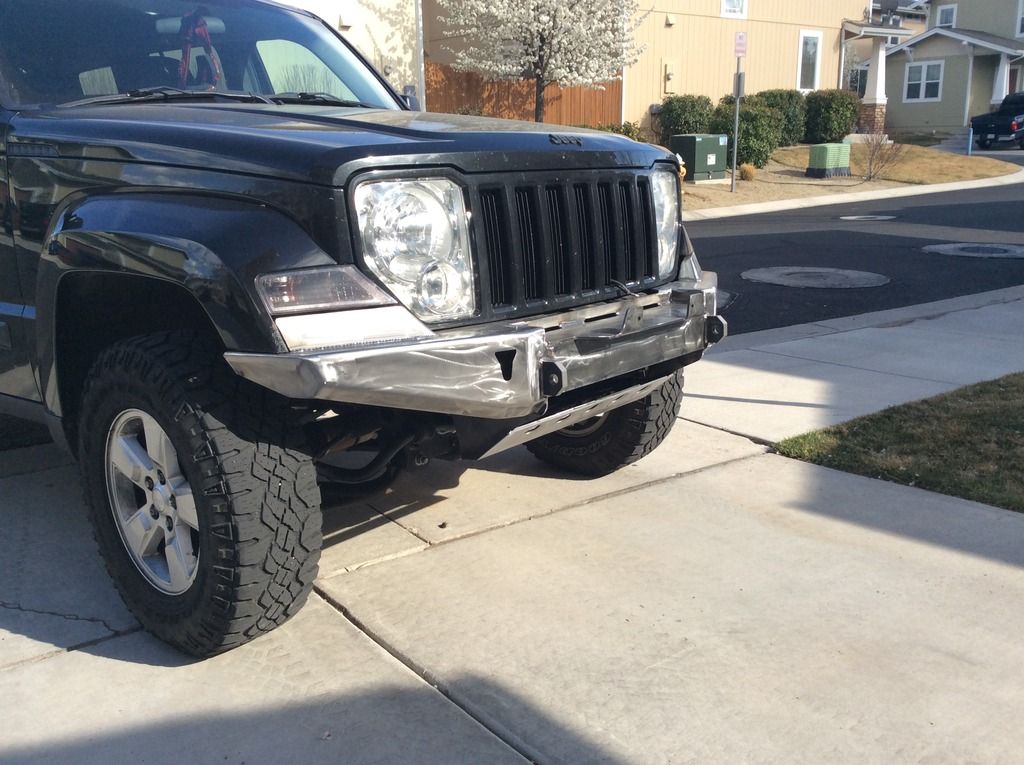

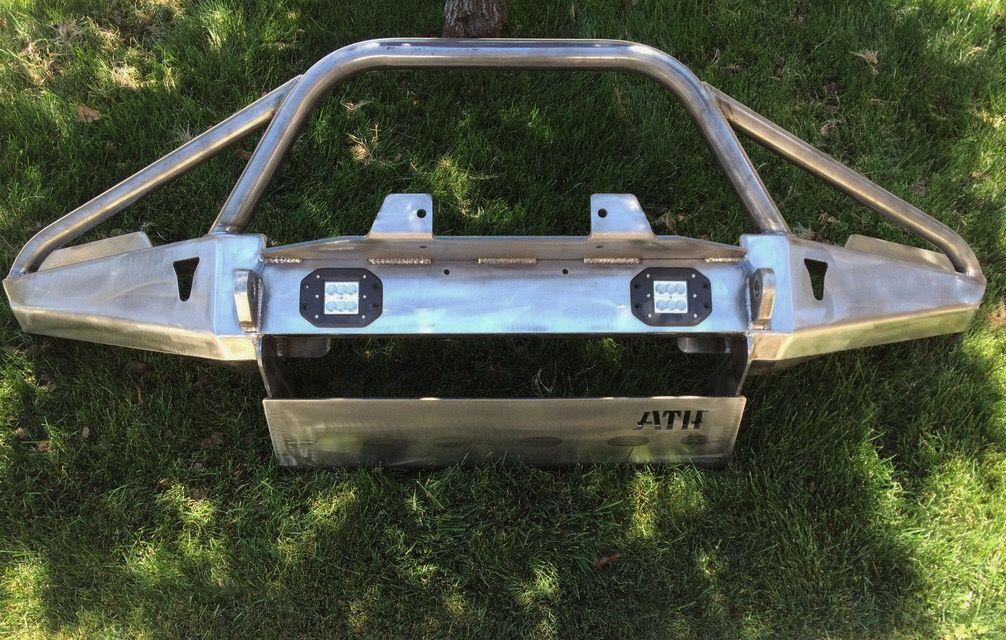

Updated version:

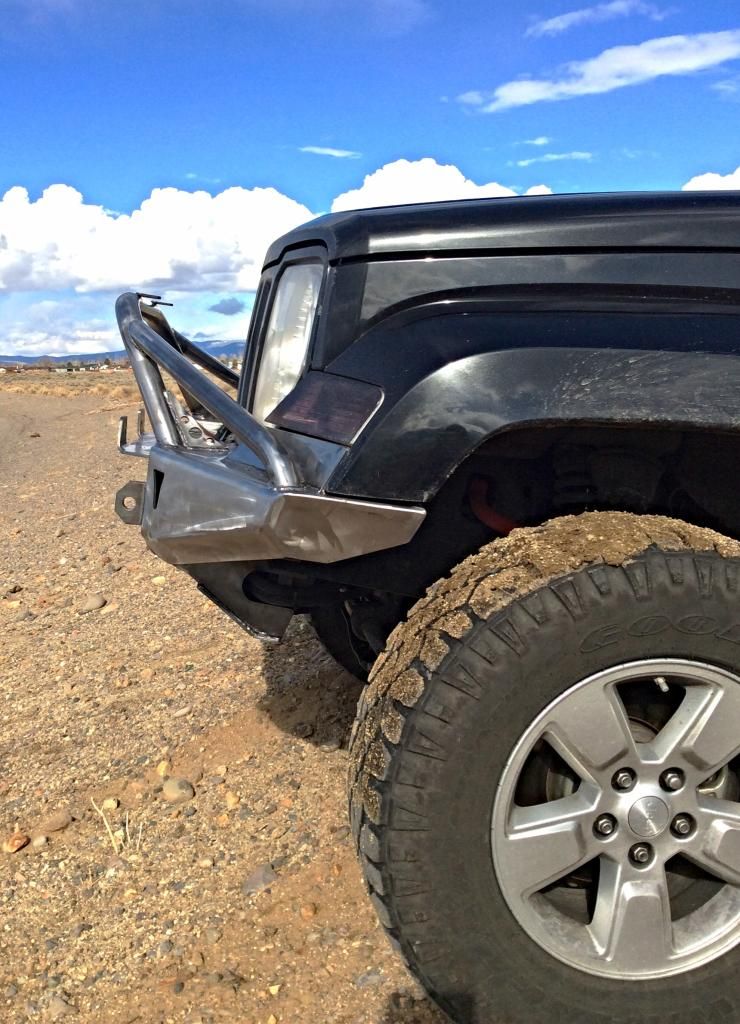

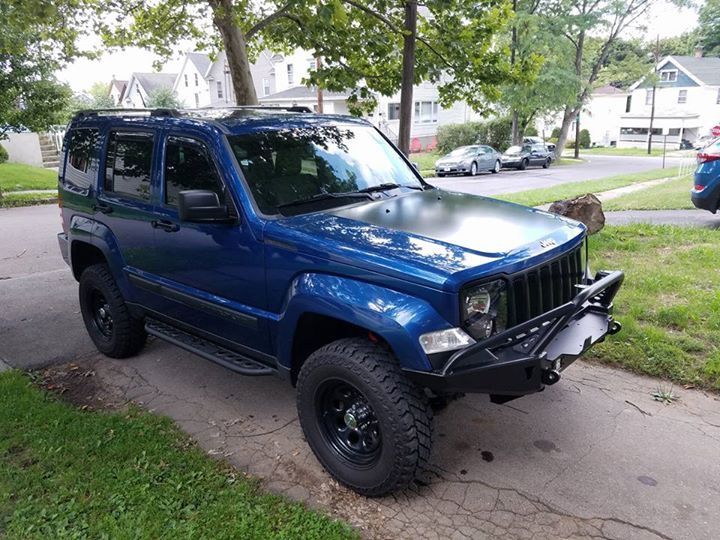

SHOWN WITH PRERUNNER HOOP

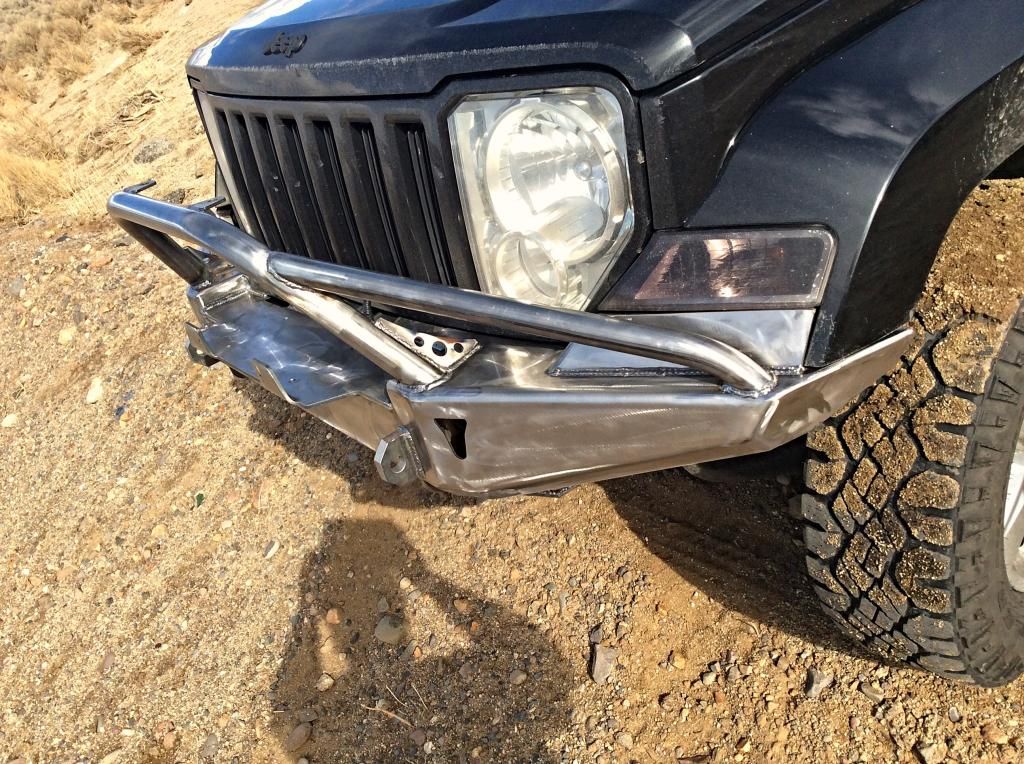

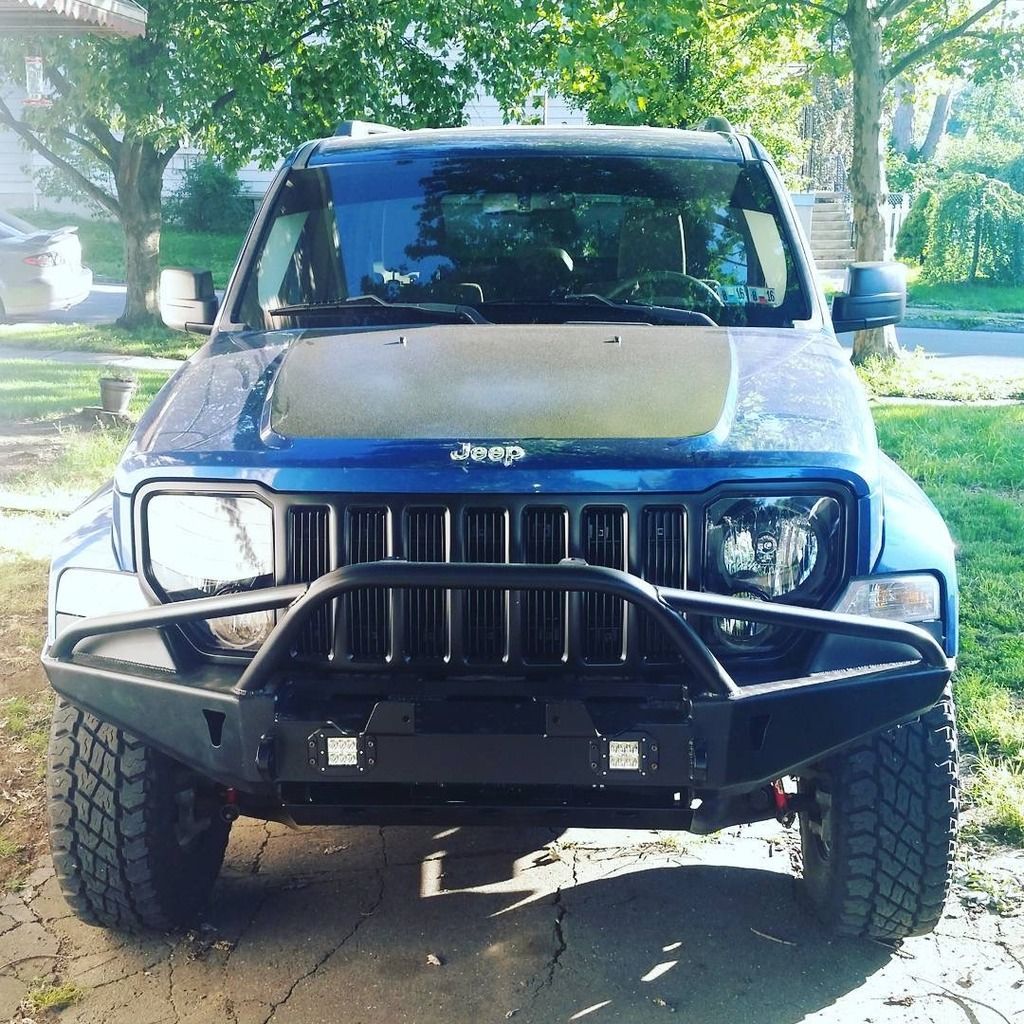

SHOWN WITH CENTER HOOP




SHOWN WITHOUT HOOP
