KJ Electrical - Gauge Cluster, Temp control etc.

tedo2007 · **Joined:** Mon Sep 03, 2012 1:43 pm **Posts:** 14

Was wondering if anyone could provide me with some information.

I am looking to swap out my dash lights for blue led.

If you could please tell me which style and how many it takes to do the following?

Gauge Cluster (I think 9 but not sure on which style)
Temp Control (Have no clue on this one)
P R N D etc Lights (not sure on this one either)

All help would be greatly appreciated. Thanks!

kskj · **Posted:** Thu Sep 20, 2012 5:45 pm

This will get you the bulb part numbers.https://www.sylvania.com/en-us/applicat ... gmain.aspx

tjkj2002 · **Posted:** Thu Sep 20, 2012 6:01 pm

kskj wrote:

This will get you the bulb part numbers.https://www.sylvania.com/en-us/applicat ... gmain.aspx

Be warned they list alot of the wrong bulb #'s for the KJ,mostly the ones the OP is looking for.The shifter light,last I've seen,is a dealer part only.

tedo2007 · **Joined:** Mon Sep 03, 2012 1:43 pm **Posts:** 14

Well thanks, I can at least order the cluster ones now.

tjkj, I know the shifter light is dealer - but im wanting to swap to led so just need to know fitting style, or maybe ill have to wire somthing else in. But swear i seen a guide on exactly what im wanting to do just cant find it now.

tedo2007 · **Joined:** Mon Sep 03, 2012 1:43 pm **Posts:** 14

Looks to be on another from a #74 bulb will work for the shifter, not just to figure out the heater controls.

tjkj2002 · **Posted:** Thu Sep 20, 2012 6:21 pm

tedo2007 wrote:

Well thanks, I can at least order the cluster ones now.

tjkj, I know the shifter light is dealer - but im wanting to swap to led so just need to know fitting style, or maybe ill have to wire somthing else in. But swear i seen a guide on exactly what im wanting to do just cant find it now.

That link lists the wrong cluster lights for a KJ.

tedo2007 · **Joined:** Mon Sep 03, 2012 1:43 pm **Posts:** 14

Can anyone inform the correct bulbs then? :CAMPING:

surfRenegade · **Posted:** Fri Sep 21, 2012 3:18 pm

Ive actually been trying to figure out the same thing for a while now. a cluster bulb and one in the heater controls died on me. If we dont get an answer Ill eventually just tear everything apart and go to a store and try and match them up

tjkj2002 · **Posted:** Fri Sep 21, 2012 8:51 pm

For the life of me I can not find my invoice and I'm not pulling my IC out the see if the LED's have a part# on them but I do know for a fact the bulbs listed for the IC for a KJ are wrong.I have 9 LED's that they listed sitting in my junk drawer because they are not even close to fitting.

I broke out my micrometer and compared measurements from the bulbs I needed to superbriteleds.com website where they have measurements for there bulbs.

tedo2007 · **Joined:** Mon Sep 03, 2012 1:43 pm **Posts:** 14

Well any info would be helpful! I have been unable to find anything.

:furious:

which sucks because I am ready to order now

tjkj2002 · **Posted:** Sun Sep 23, 2012 7:45 pm

Well I dug around some more last night,didn't find the invoice but did find the extra one I bought.Sorry it did not have a part # on it but got a pic.

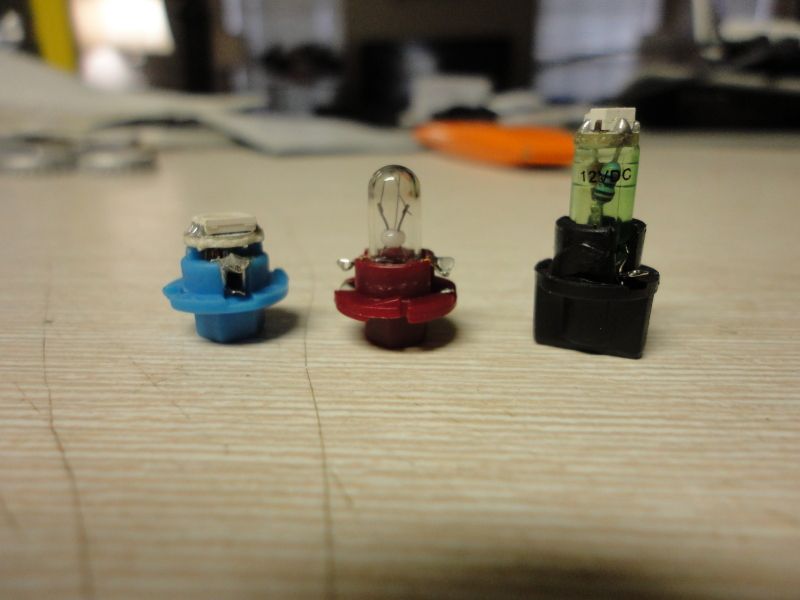

Going from left to right........

Correct LED for IC
Stock lamp for IC
LED lamp listed for the KJ's IC which is wrong

tedo2007 · **Joined:** Mon Sep 03, 2012 1:43 pm **Posts:** 14

tjkj2002 wrote:

Well I dug around some more last night,didn't find the invoice but did find the extra one I bought.Sorry it did not have a part # on it but got a pic.

Going from left to right........

Correct LED for IC
Stock lamp for IC
LED lamp listed for the KJ's IC which is wrong

Do you know if the cluster and hvac controls use same light?

tedo2007 · **Joined:** Mon Sep 03, 2012 1:43 pm **Posts:** 14

Man the pic is great but i cant find anything in regards to it, could you check your email for invoice? Hell id even paypal ya 3 bucks for checking for me.

tedo2007 · **Joined:** Mon Sep 03, 2012 1:43 pm **Posts:** 14

http://www.superbrightleds.com/moreinfo ... 03/#images

May be it

tjkj2002 · **Posted:** Sun Dec 23, 2012 10:20 pm

B8.4D is superbrightleds.com part # for the correct one.

surfRenegade · **Posted:** Fri Jan 11, 2013 12:33 am

Does any one know the regular bulb number for the heater controls?? I took mine apart tonight to replace a burnt bulb. I thought the bulb came out of the holder so I made the bad choice of using my teeth to pull the bulb out. It broke and I got a mouth full of glass. where could I even get this bulb? I hope its not a dealer thing
Here is the photo of the bulbs

surfRenegade · **Posted:** Fri Jan 11, 2013 12:38 am

Dealer part number #L0000074 is what is listed on the web
