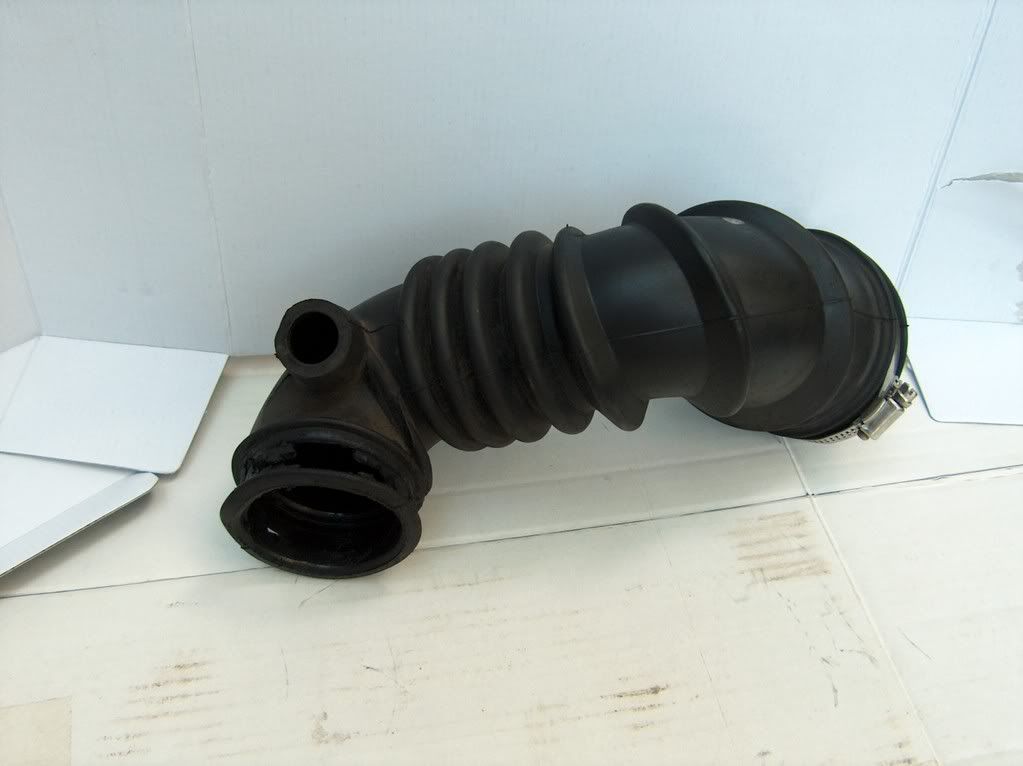

Far be it from me to cry 'wolf', but while investigating a suitable location for an EGT thermocouple probe, I found this:


I sincerely believe, as the gynecologist said, that this bears looking into:

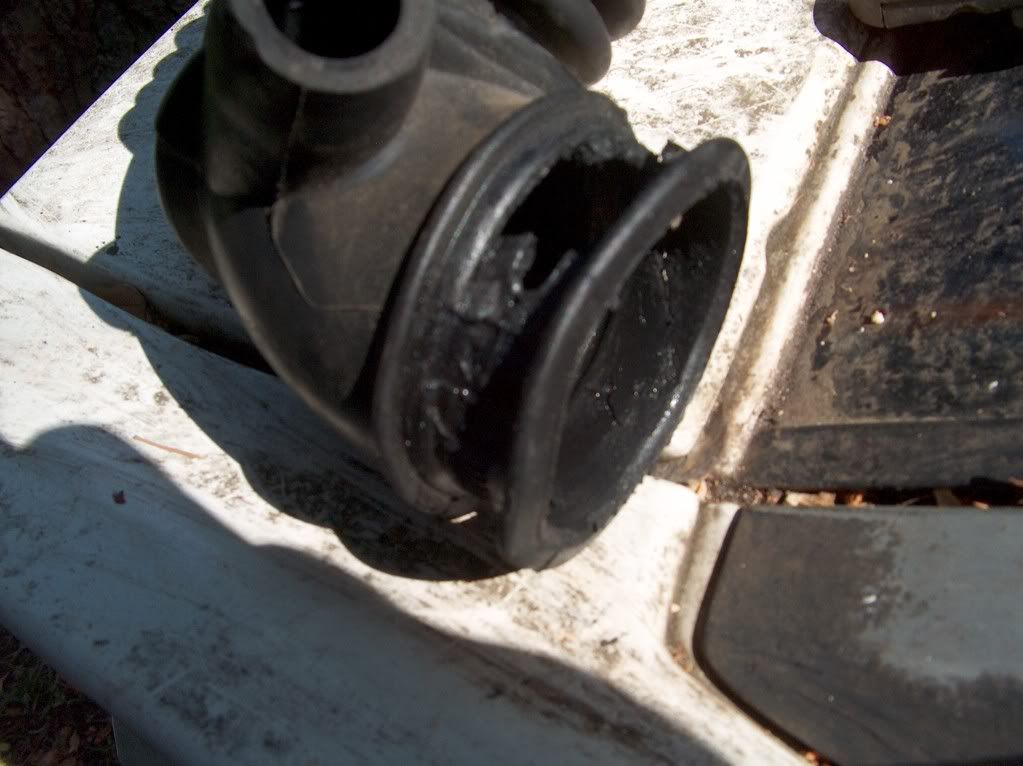

This is normal wear'n'tear for the compressor inlet duct at 68kmi, having been subjected to crankcase effluent for a good portion of those miles - it might behoove you guys to have a look at yours, as this won't play, clean air filter, or no.

Did find a suitable boss on the turbo exhaust flange, which would require removing the t\c for drilling\tapping, plus a matching hole in the exhaust manifold for the probe - it's between the two mounting-bolt holes on the cartridge-side of the flange

_________________
'05 CRD Limited
Pricol EGT, Boost
GDE Hot '11; EDGE Trail switched
SEGR; Provent; Magnaflow;
Suncoast T\C, Transgo Tow'n'Go switch;
Cummins LP module, Fleetguard filter, Filterminder
2.5" Daystar f, OME r; Ranchos; K80767's, Al's lifted uppers
Rubicons, 2.55 Goodyears
Four in a row really makes it go

Once again, a choice tidbit of information to push us 4 cylinder dieselers onward.
Have decided that after the impending T/C install and before the magic power reflash, trans. temp, boost and EGT gauges will be installed.
You are the man.

Just Want More Power(JWMP)

_________________
'06 Jeep Liberty Sport CRD with: GDE Hot Flash and Tranny Flash, ehm, Cummins fuel pump, 3" Magnaflow muff, Moog K3199's, Skids, 225-75-16 10 ply, OME springs, Euro T/C, Shift kit, Trans cooler w/thermal bypass, Bigboy bkt, Samco CAC, Brake controller, Trans temp gauge, Al's Upper Arms

Looks like we will be hitting mopar online for this part ......

Anyone find this part number or description?

Maybe samco will make one of these for us

_________________
----------------------------------------------------------------------
06 CRD LTD - Suncoast TC- Shift Kit - Spicer UJ - FRKNLIFT - F37 - Magnaflow - 22.0 City - 24@65MPH - Fumoto F-102 - AUX T Cooler - Tank Lift Pump

53013104AC - $37 ur cost at DCPARTSONLINE should just about do it

Also, FYI: I didn't think I would like crow, but it's not bad with some fava beans and a nice chianti.................

_________________
'05 CRD Limited
Pricol EGT, Boost
GDE Hot '11; EDGE Trail switched
SEGR; Provent; Magnaflow;
Suncoast T\C, Transgo Tow'n'Go switch;
Cummins LP module, Fleetguard filter, Filterminder
2.5" Daystar f, OME r; Ranchos; K80767's, Al's lifted uppers
Rubicons, 2.55 Goodyears
Four in a row really makes it go

FYI - I did kill one of those hoses - but I chalked it up to pulling the Provent for dealer service trips - but it looked just like that.

_________________
2005 CRD
stuff
Skeptic quod gratis asseritur, gratis negatur
