 Post subject: McNally gauges in pillar pod - install details
PostPosted: Thu Aug 18, 2011 11:41 pm
Offline
LOST Addict
User avatar

Joined: Thu Oct 20, 2005 5:42 am
Posts: 2044
Location: Fort Collins, CO
Last weekend I installed a pair of gauges in a Lotek A pillar pod. I like these Mcnally gauges because they can show 2 things at once. One reading on the dial and one on the digital display. They are all electrical and self dimming via a photo sensor in the face, so you don't need to find a dimmer wire to splice into.
http://www.mcnallyelectronics.com

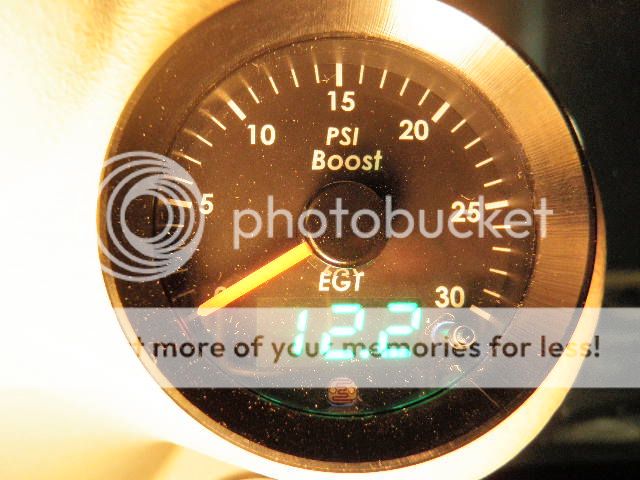

Here is the boost/egt gauge.

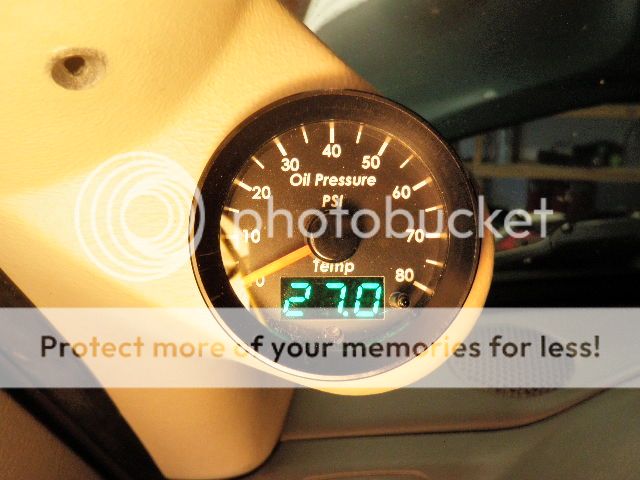

And the oil pressure/temp gauge. Reading degrees C at the time of the picture.

These are kind of cool because they have a peak recall feature where you just tap the button in the face and it zooms to the last high readings since restarting. Tap once more and it shows current battery voltage. The dials also do a cool dance when you key on, that is very sci-fi.

So far the highest egt I saw just fooling around a little was 715F. Normal driving is like 500F. Highest boost was 21psi with the GDE hot tune.

I got two parts from Dieselmanor.com. One is just a fitting to T a thermocouple into a transmission fluid line. That way I won't have to take my pan off again and drill that. This is a fitting you could build yourself with parts from mcmaster.com but oh well. The part I really wanted from there was the boost bolt, which they make to replace a bolt in a cummins manifold. It's drilled through and has 1/8" NPT female at the top end for your sensor.
http://www.dieselmanor.com/dm_products/FTG-MFD.asp
http://www.dieselmanor.com/dm_products/DM-BSTBLT.asp

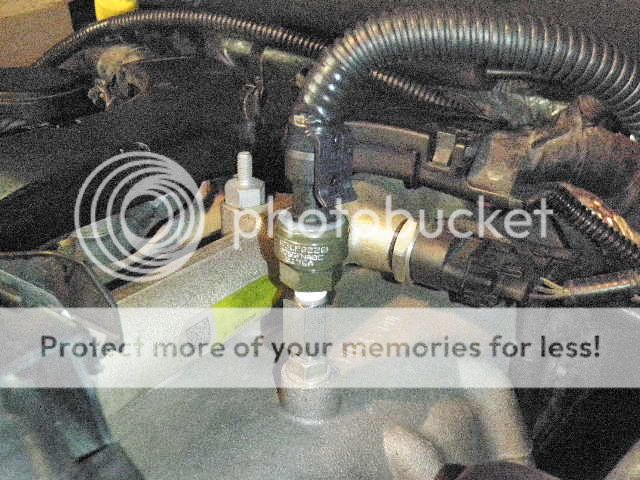

Here is the Boost Bolt from Diesel Manor.

I unscrewed one of the posts that holds the factory engine cover, which I don't use. This has the same threads as the boost bolt. It's a little long for the hole that's already in the valve cover, and I didn't want to drill and tap for that, or deal with cutting the bolt, so I just used a nut to space it a little.

I drilled the manifold with a 5/64 bit, put some pipe dope on the threads and installed the boost bolt. I snugged the nut downward to keep it tight. The Mcnally MAP sensor is installed with some pipe tape. I used wire conduit for everything for a factory look. You can hardly pick out the new sensors in the engine bay.

Here you can barely see the hole I cut in the turbo heat shield to pass the thermocouple wire through. It goes in to a 1/8 NPT compression fitting where I drilled and tapped the manifold in the same way as warp2diesel. (Thanks for posting that diagram). I didn't run the engine while drilling or anything like that. just a shop vac right near the hole and a small magnet down in afterwards.

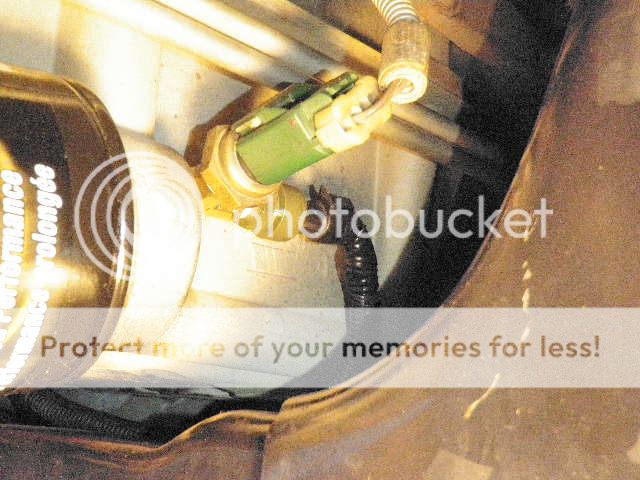

This is a shot of the oil pressure sensor which is Teed in with the factory oil pressure switch, which just happens to be 1/8" NPT. I got a male-female-female brass tee from Mcmaster.com


Credit goes to a couple people including warp2 and Glend whose writeups I modeled mine on.
viewtopic.php?f=5&t=32256
http://www.ausjeepoffroad.com/forum/sho ... hp?t=92305
http://www.cumminsforum.com/forum/acces ... berty.html

_________________
05CRD: GDE Hot ECU & TCM tunes, Provent, Cat filter, Facet lift pump, TransGo kit, Suncoast TC, Samcos, stainless brake lines, HDS thermostat,
RL super sliders, Frankenlift IIP, Al's Gen 4.5 Arms, 235/85-16 Duratracs, DTT rear, EVIC+TPMS, Turbo timer, McNally pillar gauges, Weeks Stage II kit.


Last edited by CATCRD on Sat Sep 19, 2015 12:32 am, edited 1 time in total.

Top
 Profile

 Post subject: Re: McNally gauges in pillar pod - install details
PostPosted: Fri Aug 19, 2011 4:34 am
Offline
Lifetime Member
Lifetime Member
User avatar

Joined: Tue Sep 22, 2009 10:16 pm
Posts: 3021
Location: Oxford, Connecticut
Looks good, nice work.

_________________
2006 Liberty Limited CRD, Deep Beryl Green, Yeti tune, Arp studs, new cams, rockers, lifters, TB. "Green Monster"
2005 Liberty Sport CRD, Deep Beryl Green, GDE Hot Tune, ARP studs. "Rocket"
1982 Fiat 124 Spider Convertible. "Fiona"


Top
 Profile

 Post subject: Re: McNally gauges in pillar pod - install details
PostPosted: Fri Aug 19, 2011 6:58 am
Offline
LOST Addict
User avatar

Joined: Thu Dec 29, 2005 5:25 am
Posts: 2028
Location: El Paso TX/Friedrichsdorf DE
OK why is it that your photos never upload and if I click on them and it redirects I can only see them?

_________________
No longer a CRD or Jeep owner. Selling everything I have, needs to go as I need the room for a project.


Top
 Profile

 Post subject: Re: McNally gauges in pillar pod - install details
PostPosted: Fri Aug 19, 2011 12:15 pm
Offline
Lifetime Member
Lifetime Member
User avatar

Joined: Thu Apr 16, 2009 2:17 pm
Posts: 1356
Location: Cle Elum, Washington
Great looking gauges. Question, how can that boost/egt gauge work when the egt only uses three digits? Egt's go into the thousands.

_________________
2006 KJ CRD Ltd - Suncoast, GDE Eco, EGR Delete, After market T-Stat, Skid Row skids, V6 airbox, 2.5" Turbo back
2005 KJ CRD Sport-Suncoast, Transco, GDE Hot-GDE Trans, EGR Delete, Skid Row skids, V6 airbox, 2.5" Turbo back, After market S-Stat
1987 Suzuki LWB Samurai -diesel powered, custom 4 link coil suspension 38.5 SX Swampers


Top
 Profile

 Post subject: Re: McNally gauges in pillar pod - install details
PostPosted: Fri Aug 19, 2011 2:48 pm
Offline
LOST Addict
User avatar

Joined: Thu Oct 20, 2005 5:42 am
Posts: 2044
Location: Fort Collins, CO
CRD Joe wrote:
Great looking gauges. Question, how can that boost/egt gauge work when the egt only uses three digits? Egt's go into the thousands.


When it gets above 1000 it just truncates the last digit, so 1200 would show as 120, but without a decimal pont. 120F shows up with a decimal point.

jinstall, are you viewing the web page through a company firewall or something? That keeps the imageshack pictures from showing up if I'm at work.

_________________
05CRD: GDE Hot ECU & TCM tunes, Provent, Cat filter, Facet lift pump, TransGo kit, Suncoast TC, Samcos, stainless brake lines, HDS thermostat,
RL super sliders, Frankenlift IIP, Al's Gen 4.5 Arms, 235/85-16 Duratracs, DTT rear, EVIC+TPMS, Turbo timer, McNally pillar gauges, Weeks Stage II kit.


Top
 Profile

 Post subject: Re: McNally gauges in pillar pod - install details
PostPosted: Fri Aug 19, 2011 4:52 pm
Offline
LOST Addict
User avatar

Joined: Tue Apr 03, 2007 2:07 am
Posts: 6205
Location: Colorado Baby!
jinstall wrote:
OK why is it that your photos never upload and if I click on them and it redirects I can only see them?


Are you using internet explorer?

_________________
http://www.Colorado4Wheel.com
"Its not about what you can DO with your Jeep, its about where you can GO with your Jeep."
Knowledgeable - But Caustic


Top
 Profile

 Post subject: Re: McNally gauges in pillar pod - install details
PostPosted: Fri Aug 19, 2011 5:02 pm
Offline
LOST Junkie
User avatar

Joined: Mon Jan 25, 2010 7:33 pm
Posts: 501
Location: Wheeling WV
Nice work, I have been wanting a oil pressure gauge. Where did you put the oil temp probe?

_________________
TWO Identical 2005 Liberty Sport CRDS
#1 CRD, 174,000 miles. Eco tune, Samco hoses. Mobil1 0-40w used since day one
#2 CRD 143,000 miles. Bought used (unknown history) with 100,000 miles. Samco hoses.
Eco tune, new rockers, and 5 volt glow plugs installed at 124,000 miles


Top
 Profile

 Post subject: Re: McNally gauges in pillar pod - install details
PostPosted: Fri Aug 19, 2011 5:21 pm
Offline
LOST Addict
User avatar

Joined: Thu Oct 20, 2005 5:42 am
Posts: 2044
Location: Fort Collins, CO
jeepdan wrote:
Nice work, I have been wanting a oil pressure gauge. Where did you put the oil temp probe?


I have actually not installed it yet. If I had gotten the 4" thermocouple probe I could stack another brass T in with the pressure sensor and install the probe so it would reach right into the filter head. The 2" one I have won't reach into the actual flow. Otherwise I might drill the pan.

_________________
05CRD: GDE Hot ECU & TCM tunes, Provent, Cat filter, Facet lift pump, TransGo kit, Suncoast TC, Samcos, stainless brake lines, HDS thermostat,
RL super sliders, Frankenlift IIP, Al's Gen 4.5 Arms, 235/85-16 Duratracs, DTT rear, EVIC+TPMS, Turbo timer, McNally pillar gauges, Weeks Stage II kit.


Top
 Profile

 Post subject: Re: McNally gauges in pillar pod - install details
PostPosted: Fri Aug 19, 2011 6:53 pm
Offline
Lifetime Member
Lifetime Member
User avatar

Joined: Sun Feb 01, 2009 2:29 am
Posts: 6016
Location: Hillsborough, NC / Petersburg VA
those gauges are slicker than a recreational area.. roger that?

real nice!

_________________
03 Renegade (Black)
177k miles 3.7L gas - 45RFE
Command Trac / 4.10s
Lift: ft. 790+ rr. JBA4+
The last of the TrailReady Front&Rear Bumpers and TR Rock Rails
Jarhead Offroad light covers
31x10.5R15 RedLetter Grabbers on Blackrock Dunes
L.O.S.T #KD098632


Top
 Profile

 Post subject: Re: McNally gauges in pillar pod - install details
PostPosted: Sat Aug 20, 2011 7:00 am
Offline
Lifetime Member
Lifetime Member
User avatar

Joined: Wed May 24, 2006 6:52 am
Posts: 3442
Location: Columbus, Ohio. USA
Sir Sam wrote:
jinstall wrote:
OK why is it that your photos never upload and if I click on them and it redirects I can only see them?


Are you using internet explorer?


Sam
I'm running IE9 64 bit and have the same problem :dizzy:
Some times, rarley, it works. Like once you "testing" your intercooler for leaks showed up but only once.

Any idea what setting e/I need to change?

Joe

_________________
Atlantic Blue 06 CRD Limited (his)
Joined by a 2000 XJ Classic (hers)


Top
 Profile

 Post subject: Re: McNally gauges in pillar pod - install details
PostPosted: Sat Aug 20, 2011 7:52 am
Offline
Lifetime Member
Lifetime Member
User avatar

Joined: Tue Sep 22, 2009 10:16 pm
Posts: 3021
Location: Oxford, Connecticut
jinstall wrote:
OK why is it that your photos never upload and if I click on them and it redirects I can only see them?


1st check that your antivirus isn't blocking JPG's for some reason.

If that is ok then try this:

If the Show Pictures option in Internet Explorer is turned off, you won't see pictures on a webpage. Here's how to make sure it's turned on:

1.Open Internet Explorer by clicking the Start button , and then clicking Internet Explorer.

2.Click the Tools button, and then click Internet Options.

3.Click the Advanced tab.

4.Scroll to the Multimedia section, and then select the Show Pictures check box.

5.Click OK.

Also try this if your using Internet explorer 9, turn on compatability view.

Test running your browser in compatibility view.

Internet Explorer Compatibility view:
http://support.microsoft.com/default.aspx/kb/956197/

Or try this if your using window defender.

Go to Start-Control Panel-Windows Defender.

Click on Tools at the top, then select Options.

Look on the left side and click Real Time protection.

Uncheck the box and click Save.


Or you may need to download and install flash player to see some pictures.

http://get.adobe.com/flashplayer/

_________________
2006 Liberty Limited CRD, Deep Beryl Green, Yeti tune, Arp studs, new cams, rockers, lifters, TB. "Green Monster"
2005 Liberty Sport CRD, Deep Beryl Green, GDE Hot Tune, ARP studs. "Rocket"
1982 Fiat 124 Spider Convertible. "Fiona"


Top
 Profile

 Post subject: Re: McNally gauges in pillar pod - install details
PostPosted: Sat Aug 20, 2011 9:36 am
Offline
Lifetime Member
Lifetime Member
User avatar

Joined: Wed May 24, 2006 6:52 am
Posts: 3442
Location: Columbus, Ohio. USA
Racetracker.

With trouble I was finally able to get adobe 10. whatever versionb to install but still no joy.
I also tried the other things you listed.
Now when I click in the link that appears instead of the picture I could previously get I get this
Error: Object doesn't support property or method 'getContext'
I think it's some kind of java error so I'm off to the Windows7 forum.
The last time I checked, a couple of months ago, Adobe didn't have a 64 bit IE9 version so I may need to figure how to get back to the 32 bit version.

Thanks
Joe

_________________
Atlantic Blue 06 CRD Limited (his)
Joined by a 2000 XJ Classic (hers)


Top
 Profile

 Post subject: Re: McNally gauges in pillar pod - install details
PostPosted: Sat Aug 20, 2011 9:45 am
Offline
Lifetime Member
Lifetime Member

Joined: Sun Mar 28, 2010 9:15 am
Posts: 5430
Location: Tallahassee, Florida
Something happened with pictures with the upgrade to IE9. They worked fine in IE8 but I've never been able to get them to appear on their own in IE9. Tried all of racertracer's fixes with no success. About all I can add is if I open a chat with pictures in IE9 and immediately "hover" the cursor over the little yellow picture square I see a "loading" message but nothing loads and the message eventually stops appearing. I also can see the link to the picture appear at the bottom of the screen and I can right click on the yellow picture square and open the picture by selecting one of the 3 "open" options.

Frankly I gave up on IE9 for the LOST site and just use Firefox as the pictures load just fine in Firefox.

Nice install which I've saved for possible future use.

_________________
Sold to LOST member my 05 Ltd, GDE Stg II turbo + TCM tune, SunCoast TC w. Transgo kit, Steiger window regulators, Samcos, Fumoto valve, 2nd gen filter head with Lub. Spec. bleeder, Hayden clutch & 11 blade fan, inverted spare, P-1 battery, BF Goodrich Long Trail TAs, Etecno1 glow plugs, timing belt at 50K miles/8 yrs


Top
 Profile

 Post subject: Re: McNally gauges in pillar pod - install details
PostPosted: Mon Aug 22, 2011 6:40 am
Offline
Lifetime Member
Lifetime Member
User avatar

Joined: Wed May 24, 2006 6:52 am
Posts: 3442
Location: Columbus, Ohio. USA
UPDATE
I loaded Google Chrome and can now see the pictures.
I have no Idea what version of IE it's using :juggle:

Nice dual function gauge :SOMBRERO:

_________________
Atlantic Blue 06 CRD Limited (his)
Joined by a 2000 XJ Classic (hers)


Top
 Profile

 Post subject: Re: McNally gauges in pillar pod - install details
PostPosted: Sun Oct 01, 2017 5:19 pm
Offline
LOST Newbie

Joined: Mon Jul 27, 2015 9:56 pm
Posts: 11
Location: Shreveport, LA
So I've been looking through many of the gauge install posts on the forum, and decided on this method with the Lotek pillar 2 gauge pod. I would like to install a boost gauge using CATCRD's method with the Cummins boost bolt in one of the unused bosses in the intake manifold. However, I would also like to continue to use the engine cover to retain the factory look. Anyone know what type of 90 degree adapter that would allow a configuration with the adapter first > boost bolt > sender? In my mind this would allow the setup to lay flat and route under the factory engine cover vs. CATCRD's pics with the boost bolt > sender going vertical. I will most likely be using an inexpensive mechanical 30 or 35 psi Glowshift gauge to start, with one of the more expensive McNally combination oil pressure/temp gauges to come later. Thanks for any recommendations.


Top
 Profile

 Post subject: Re: McNally gauges in pillar pod - install details
PostPosted: Sun Oct 01, 2017 8:44 pm
Offline
LOST Addict
User avatar

Joined: Sat Aug 24, 2013 11:36 pm
Posts: 5021
Location: Central GA
This is what I did!
I drilled a 1/8 hole into the intake through the boss pictured below and then tapped it out to 1/8 pipe threads and installed a 90 deg. fitting!
It feeds a Glowshift gauge mounted on the pillar and works great and fits below the OEM plastic engine cover with no issues...

See this post for full details:> viewtopic.php?f=98&t=84670&hilit :wink:



_________________
Proud Supporting Vendor of LOST
05 Jeep Liberty CRD Limited :JEEPIN:

Ironman Springs/Bilstein's
Yeti Stg4 MaxTune
Weeks ElbowKit/BatteryTray
No FCV/EGR
Samcos/ProVent
SunCoast/Transgo
Carter Intank-pmp
2mic.Sec.Fuel Filter
Flowmaster/NOcat
V6Airbox
GM11 bld fan/NAPA HDclutch
IronrockArm/Cust.Mount
DodgeCummins,5"exh. Viair, Huge K&N


Last edited by WWDiesel on Fri Apr 20, 2018 2:34 pm, edited 1 time in total.

Top
 Profile

 Post subject: Re: McNally gauges in pillar pod - install details
PostPosted: Tue Oct 03, 2017 3:23 pm
Offline
LOST Newbie

Joined: Mon Jul 27, 2015 9:56 pm
Posts: 11
Location: Shreveport, LA
WWDiesel wrote:
This is what I did!
I drilled a 1/8 hole into the intake through the boss pictured below and then tapped it out to 1/8 pipe threads and installed a 90 deg. fitting!
It feeds a Glowshift gauge mounted on the pillar and works great and fits below the OEM plastic engine cover with no issues...

See this post for full details:> viewtopic.php?f=98&t=84670&hilit :wink:


Great! So your method eliminates the need for the boost bolt? Just the 1/8 npt 90 deg fitting then boost sender installed directly into the fitting? Thanks for the update.

Sent from my XT1650 using Tapatalk


Top
 Profile

 Post subject: Re: McNally gauges in pillar pod - install details
PostPosted: Wed Oct 11, 2017 9:24 pm
Offline
LOST Newbie

Joined: Tue Oct 16, 2007 10:54 pm
Posts: 38
Location: VT
The McNally Boost/EGT gauge is great, mine is mounted in the Sasquatch vent pod. Love it.


Notice the lack of decimal point, hehe. Guess that was a warm pull.

_________________
06 Liberty Limited CRD - homemade airbox intake, scotchbrite CCV+EHM, Weeks Stage1+2, Yeti stage 2 ECM, GDE ECO TCM, FTC billet TC, Transgo kit, no mechanical fan, Cummins lift pump, 2.5" catback, OME 790/948 springs, JBA top plate and UCAs, 3 upper rear insulators, Bilstein 24-139168 front, 24-186704 rear, 255/70R16, 1.25" wheelspacers


Top
 Profile

 Post subject: Re: McNally gauges in pillar pod - install details
PostPosted: Mon Sep 16, 2019 5:25 am
Offline
LOST Newbie

Joined: Mon Sep 16, 2019 5:21 am
Posts: 1
Excellent thread! Helpful! Keep up!

_________________
C++ Programming Online Course


Top
 Profile

Display posts from previous:  Sort by
Post new topic Reply to topic  [ 19 posts ]

All times are UTC - 5 hours [ DST ]


Who is online

Users browsing this forum: TKB4 and 30 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum

Search for:
Jump to:
Powered by phpBB © 2000, 2002, 2005, 2007 phpBB Group. Color scheme by ColorizeIt!
Logo by pixeldecals.com
