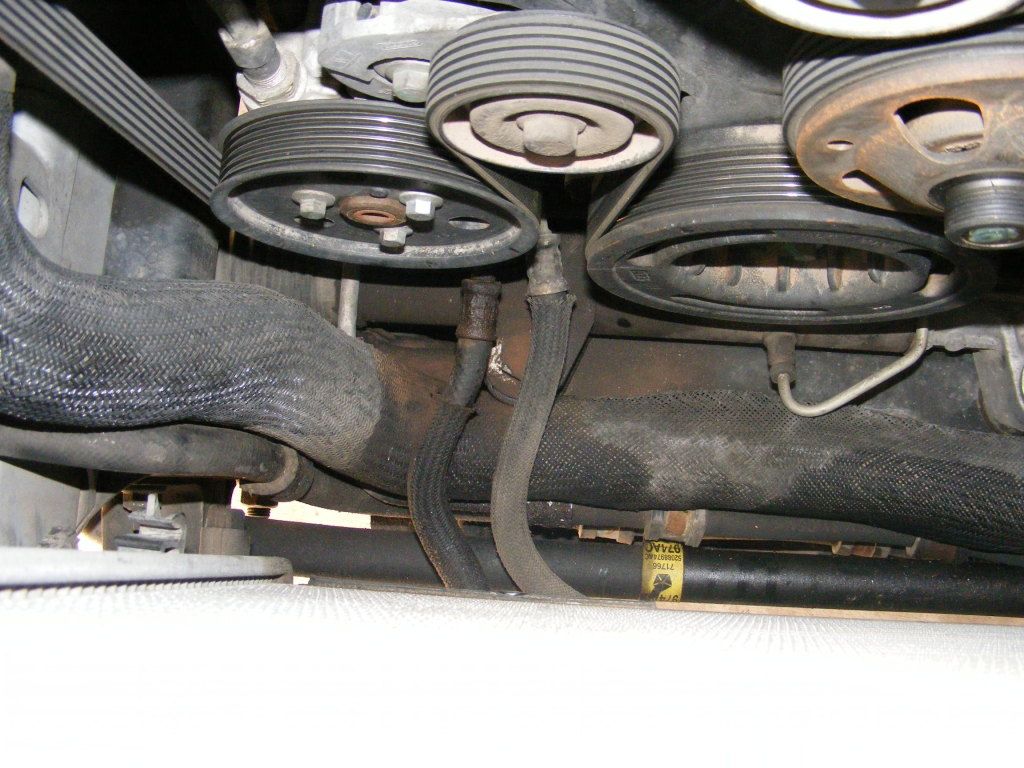

Decided to remove fan for winter and found these leaks. I'll take it to the car wash to get things clean enough to make sure only the hose ends are leaking. The FSM calls these quick-connects (they work as well the the fuel line quick connects near the fuel tank) and recommends special tool for removal. It sounds like what they describe is similar to an AC hose removal tool, which I have.

Does anyone know if the connectors can be made to stop leaking? I read a thread that used screw type hose clamps (Cherokee), and another KJ thread where the guy paid major bucks to a dealer to remove elec. fan, cooler, replace lines, etc, etc.

The radiator return hose is oily along with the sway bar (very oily. . . or would it be fluidy???) The oil spots seem to be located near the leaky connectors. Again, I'll clean things up and should know more.




BTW, the third time removing the fan was easy. . . due to the anti-seize on the threads.

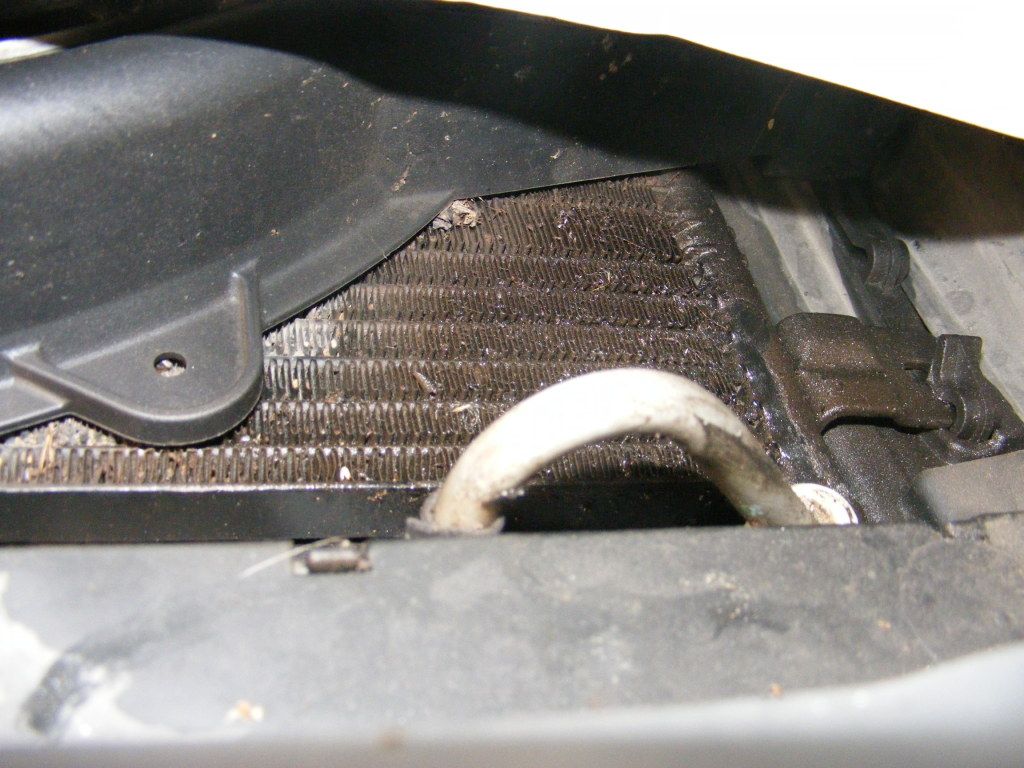

PS Just got back from car wash. The top of the left hose is leaking where the metal connector was crimped (dirty looking one). That's the end the Cherokee was fixed by clamping, so it said. The other hose is leaking at the quick connect into the cooler. I pried the dust cap off it and the end wiggled around like it wasn't connected by anything. It felt like it would come out with a gentle tug. So, each hose is leaking. . . at opposite ends making replacement of both hoses necessary to stop the leak. I'll see what the transmission ends of them look like tomorrow. Hmmm. . .

TIA

_________________
'05 Sport CRD 107k miles. NOBODY knows everything.

You can carefully cut and pry the hose clamp/crimp gizmos off of the hoses with a Dremel cut off wheel and a screw driver. Then replace with quality transmission cooler rated hose with screw type clamps.
I had to replace them all on both of my CRDs during the 100,000 mile service.
I don't know if you can replace the O-rings on the quick connect fittings or not, check with the dealer. You will need a special tool to unhook the fittings.
One of my transmission lines flops around loosely at the cooler also, but it hasn't leaked yet (noticed it over a year ago).
I think that the rubber hose sections are not long enough to absorb the shake of the diesel engine. That said, I couldn't figure out a way to make them longer as there is limited room.

_________________
TWO Identical 2005 Liberty Sport CRDS
#1 CRD, 174,000 miles. Eco tune, Samco hoses. Mobil1 0-40w used since day one
#2 CRD 143,000 miles. Bought used (unknown history) with 100,000 miles. Samco hoses.
Eco tune, new rockers, and 5 volt glow plugs installed at 124,000 miles

It's probably not the connectors, but the lines into the cooler itself. I just pulled mine, connections were perfectly sealed, the leak was in the cooler. I sawed off the connectors and plumbed in an aftermarket cooler. I'm now leak free.

_________________
'05 Liberty CRD B100, SEGR - SOLD

'01 Beetle TDi B100, EGR delete
'83 Mercedes 240D B100, no EGR

--- SEGR Builder ---

Which aftermarket cooler did you use? was it a good fit?

_________________
2005 CRD "Ol' Blue"
Red Ryder carbine-action, two hundred shot range model air rifle with a compass in the stock and this thing which tells time.
My build page- RL Komodo Rear and TJM Front Bumper, armored, lifted, JBA Steel D30, 4.10s and ARB air lockers.

There are several posts on installing an aftermarket tranny cooler out there. Try http://liberty.eurekaboy.com/transcooler.htm or viewtopic.php?t=43019&postdays=0&postorder=asc&start=20 or viewtopic.php?f=98&t=44267&p=482204&hilit=cooler#p482204

At a glance those installs are a horizontal mount. IIRC there is a vertical (driver's side) example also but I don't immediately see the link.

_________________
Sold to LOST member my 05 Ltd, GDE Stg II turbo + TCM tune, SunCoast TC w. Transgo kit, Steiger window regulators, Samcos, Fumoto valve, 2nd gen filter head with Lub. Spec. bleeder, Hayden clutch & 11 blade fan, inverted spare, P-1 battery, BF Goodrich Long Trail TAs, Etecno1 glow plugs, timing belt at 50K miles/8 yrs

The tranny coolers leaking are a pretty common thing to see these days. I ditched mine and put in an aftermarket cooler.

http://colorado4wheel.com/forum/viewtopic.php?f=6&t=45

_________________
http://www.Colorado4Wheel.com
"Its not about what you can DO with your Jeep, its about where you can GO with your Jeep."
Knowledgeable - But Caustic

And here is mine.

viewtopic.php?f=5&t=69453&p=742547#p742547
