Here's my crazy thought for the week. I so hate the inability to unlock my hubs that I was thinking, since I have the parts, could an old 4runner IFS be transplanted into a CRD? Or, an IFS setup out of any other vehicle that has manually locking hubs? And, would this require a lot less modification than a SFA swap? If it's just as much expense in fabrication, then SFA makes more sense I guess, although I like the smooth ride on the terrible roads I drive. I have no need for more than 2.5" lift also, so SFA doesn't make much sense does it?

Thanks for any commentary, especially you fabricators out there

_________________
05 CRD: H.D.S2 stat,WW Ironrock trilink&LCA's, OX rear,ARB front, 4.10's, ARB bumper, Suncoast,OME 3.5, JBA UCA,rock rails, Moabs&265/75 Duratracs, GDE tunes ,FFD fan,ARP's, 2 micron fuel, new valves,sasquatch battery tray & grid heater, tensioner relocated
Mech fan, VH & AC delete

Anything is possible with enough money.

What's wrong with the KJs always locked hubs?
I think it's great. Just like a humvee.
Yes, it's a little bit more wear and tear on the front driveshaft joints and bearings but you never have to stop and think about locking your hubs.

What the CRD really needs is more front suspension travel. Not locking hubs.
A redesigned front axle and cradle with longer control arms and CV axles.

_________________
U.S. Army Retired

I just like simple mostly. Less moving parts, and I like to try and get as many MPG's as possible. All that front drive train moving, and needing fluid change x2, and crap front drive line boot going bad every 50k...

_________________
05 CRD: H.D.S2 stat,WW Ironrock trilink&LCA's, OX rear,ARB front, 4.10's, ARB bumper, Suncoast,OME 3.5, JBA UCA,rock rails, Moabs&265/75 Duratracs, GDE tunes ,FFD fan,ARP's, 2 micron fuel, new valves,sasquatch battery tray & grid heater, tensioner relocated
Mech fan, VH & AC delete

As flash said, you probably could, if you spent enough time and money - especially money. It would probably cost more to do and set up than you would ever save on fuel, fluids and replacing boots etc. I learned that lesson many years ago modding a bike!

One of the most dangerous and expensive thoughts to have, is to ask the question "how hard can it be?"

_________________
Light Khaki 2.8CRD: TJM alloy bumper; Skid Row &Asfir skids;ext. breathers; SAMCO hoses; Grabber At3 235/70/16; Fumoto; Euro TC; Odyssey PC1500;GDE FTEcotune; OME lift; lightforce driving lights;ARB diff cover;nylon fan+Hayden2905;ss vortex exhaust; Airflow snorkel; Frontrunner roofrack; rock rails

Yeah, I must be dreaming out loud again

_________________
05 CRD: H.D.S2 stat,WW Ironrock trilink&LCA's, OX rear,ARB front, 4.10's, ARB bumper, Suncoast,OME 3.5, JBA UCA,rock rails, Moabs&265/75 Duratracs, GDE tunes ,FFD fan,ARP's, 2 micron fuel, new valves,sasquatch battery tray & grid heater, tensioner relocated
Mech fan, VH & AC delete

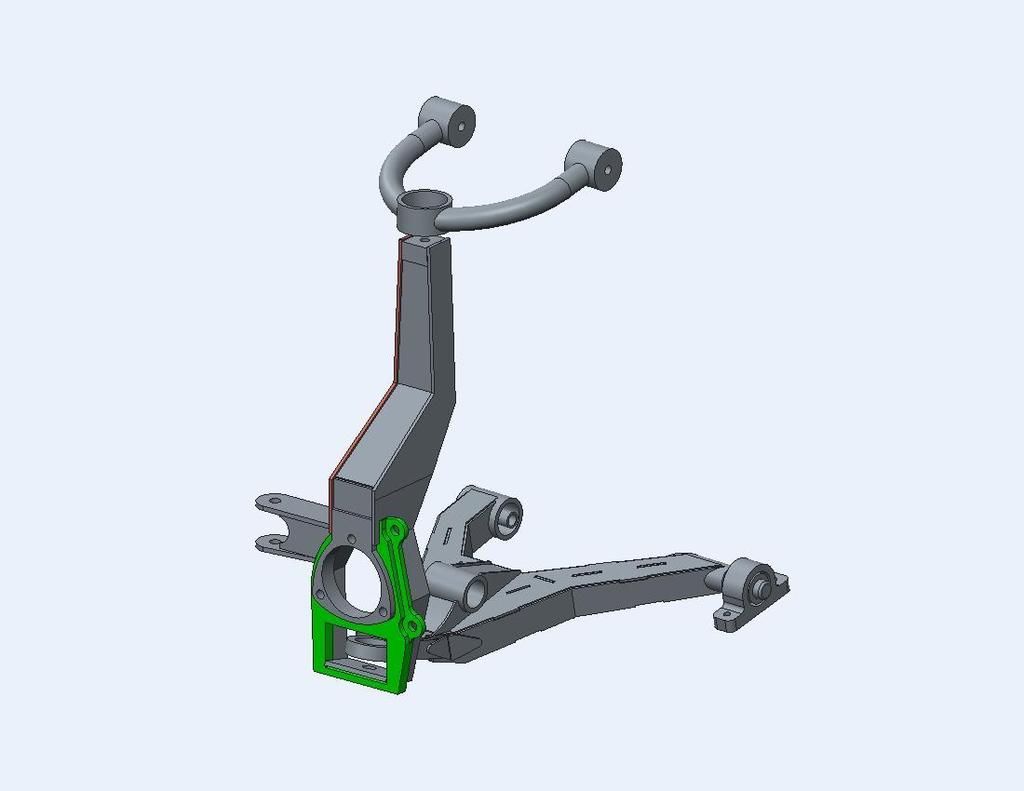

I have thought of doing something like this. I am more leaning to using a Dana 35 hub assembly from a TTB Ranger and building my own Spindle with wider upper and lower control arms. This would keep the same wheel bolt pattern. Not sure if the stock rims would work or not.
This is kind of what I am talking about. I am measuring the stock KJ parts, but don't have anything drawn yet.

_________________
CB Engineering
2014 WK2 EcoDiesel - Wife's - Offroad tune, 304 SS Exhaust, 3" Intercooler, 33" Duratracs.
2008 WK CRD Limited - GDE DPF Delete tune. 3" intercooler, 3.07 gears.
2007 WK CRD Limited - GTB2260VKLR Turbo, custom everything else
2005 KJ CRD Limited - GDE ECO Tune, Fox shocks front & rear, 255/80R17 Cooper S/T Maxx

I drove for over a year with the whole front diff,driveshaft,and CV axles pulled in my KJ and you know how much gas mileage that added up to? Not even enough to accurately measure(less the 1/2%).

The setup the KJ has and every newer IFS setup is vastly stronger then selectable hubs and with these newer systems the mpg loss is not even noticeable.Plus you have the ability to shift into 4wd at any time and not have to stop and get out to lock the hubs in.


Sure I run selectable hubs on my SFA conversion but that was from a engineering standpoint that they are my "weak link" so they are easy to change on the trail and pretty cheap(have lifetime warranty).Plus my front axle u-joints are built for brute strength not daily driving longevity(no needle bearings in u-joints).

Hmm, thanks for setting me strait on this, again.. I guess I just need to find something more worthwhile to modify on my CRD

_________________
05 CRD: H.D.S2 stat,WW Ironrock trilink&LCA's, OX rear,ARB front, 4.10's, ARB bumper, Suncoast,OME 3.5, JBA UCA,rock rails, Moabs&265/75 Duratracs, GDE tunes ,FFD fan,ARP's, 2 micron fuel, new valves,sasquatch battery tray & grid heater, tensioner relocated
Mech fan, VH & AC delete
