 Post subject: Check your ring gear bolts!
PostPosted: Sun Feb 21, 2016 2:45 pm
Offline
LOST Member

Joined: Mon Jan 10, 2011 11:31 am
Posts: 221
Location: Hillsboro. OR

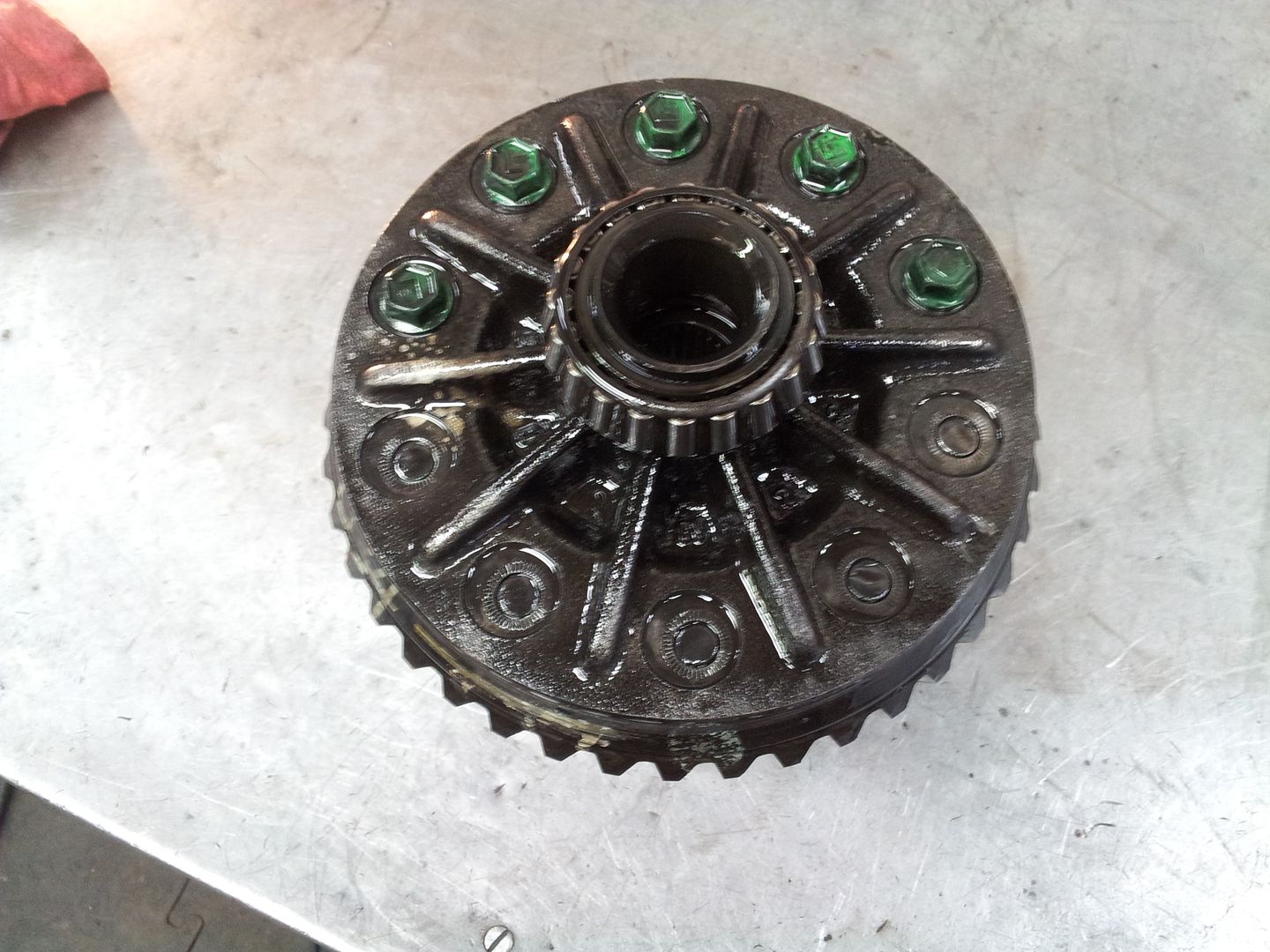

I found quite the surprise when changing my pinion bearings yesterday. Half of the ring gear bolts were sheared off and amazingly did not damage any of the gears. You may want to check yours next time you are changing the fluids.


_________________
2006 Liberty CRD 275K, JBA 2.5 with Fox Shocks, GDE Turbo Kit, GDE TCM Tune, Suncoast TC, OEM fuel filter housing converted to fit Caterpillar Fuel Filter 1R-0749, OEM themostat housing modified to accept Hemi 203 F thermostat.


Top
 Profile

 Post subject: Re: Check your ring gear bolts!
PostPosted: Sun Feb 21, 2016 3:09 pm
Offline
Lifetime Member
Lifetime Member
User avatar

Joined: Tue Jul 29, 2008 6:34 pm
Posts: 2543
Location: America
Wow another possible problem of applying torque to a rear diff intended for a gasser?

Or is it too much pedal to the metal?

_________________
2006 LTD Bright Silver loaded with all the needed mods, CCV intact.
Proudly supporting CRD vendors, and their development of quality parts and accessories.
Equipped with HDS thermostat, plenty of heat, faster warm-ups, increased fuel mileage.


Top
 Profile

 Post subject: Re: Check your ring gear bolts!
PostPosted: Sun Feb 21, 2016 8:53 pm
Offline
Lifetime Member
Lifetime Member

Joined: Sat Apr 01, 2006 9:38 pm
Posts: 12988
Location: Colorado Springs
flman wrote:
Wow another possible problem of applying torque to a rear diff intended for a gasser?

Or is it too much pedal to the metal?

The 8.25 is the same strength as a D44,only weak point is the c-clips.


Top
 Profile

 Post subject: Re: Check your ring gear bolts!
PostPosted: Sun Feb 21, 2016 9:36 pm
Offline
LOST Member
User avatar

Joined: Sun Jul 06, 2014 7:46 pm
Posts: 180
Were the heads in the bottom of the case?

_________________
05 CRD Sport - GDE EcoTune - Samcos - EGR Delete & Elbow kit - ARP Studs - Airtex E7181M


Top
 Profile

 Post subject: Re: Check your ring gear bolts!
PostPosted: Sun Feb 21, 2016 10:11 pm
Offline
LOST Addict
User avatar

Joined: Sat Nov 23, 2013 8:57 pm
Posts: 2663
Location: Boise, Idaho
SargeIndustries wrote:
I found quite the surprise when changing my pinion bearings yesterday. Half of the ring gear bolts were sheared off and amazingly did not damage any of the gears. You may want to check yours next time you are changing the fluids.



Thanks for the post. I had one that ran perfectly fine also, but it had about 1.5 teeth snapped off of one of the spider gears (they made it to the bottom without destroying anything also) I guess they cheaped out on these parts as well? When I upgrade my rear dif to a locker, I'm going to replace the ring and pinion with one of the upgraded ones. Plus, the gear pattern is so much easier to read with new gears. I hope to install it and have it run trouble free for 300k miles...

_________________
05 CRD: H.D.S2 stat,WW Ironrock trilink&LCA's, OX rear,ARB front, 4.10's, ARB bumper, Suncoast,OME 3.5, JBA UCA,rock rails, Moabs&265/75 Duratracs, GDE tunes ,FFD fan,ARP's, 2 micron fuel, new valves,sasquatch battery tray & grid heater, tensioner relocated
Mech fan, VH & AC delete


Top
 Profile

 Post subject: Re: Check your ring gear bolts!
PostPosted: Sun Feb 21, 2016 10:43 pm
Offline
LOST Member

Joined: Mon Jan 10, 2011 11:31 am
Posts: 221
Location: Hillsboro. OR
funnyman06 wrote:
Were the heads in the bottom of the case?


Yes, Three bolt heads were near by the pan and the other two were up near the yoke. I can't believe they didn't find their way into the gears when they were bouncing around.
