 Post subject: Re: How long SHOULD glow plugs last?
PostPosted: Tue Sep 14, 2021 10:05 pm
Offline
Moderator
Moderator
User avatar

Joined: Sat Aug 24, 2013 11:36 pm
Posts: 6197
Location: Central GA
All very good and legitimate questions that we would all love to know the answers to.
If we had the data for the maps for the ambient temperature vs glow plug cycle times, vs voltage, we could build a graph of it and maybe get a little better understanding of how it functions and is controlled. :banghead:

_________________
Supporting Vendor and Moderator of LOST
05 Jeep Liberty CRD Limited :JEEPIN:
Ironman Springs/Bilstein/Shocks
Yeti StgIV Hot Tune
Sasquatch BatteryTray
No FCV/EGR
Samcos/ProVent
SunCoast/Transgo
Carter Intank-pmp
2mic.Sec.Fuel Filter
Flowmaster/NO CAT
V6Airbox/noVH
GM11 bld.fan/NAPAHDClutch
IronrockArms/wwdieselMount


Top
 Profile

 Post subject: Re: How long SHOULD glow plugs last?
PostPosted: Fri Sep 17, 2021 7:36 am
Offline
LOST Member

Joined: Mon Jul 18, 2016 6:33 am
Posts: 345
Location: Central KY
The way I understand it and what little I've noticed and remember from last winter (only driven in two winters) is that the glowplug icon lights up in the dash below a certain temp. Wait til it goes off & start. Sometimes when it was real cold out (teens & twenties here) I'd cycle it twice, just for the fun of it.

_________________
2005 Liberty CRD, with 111,XXX miles. New rockers, exhaust valves, Provent, EGR block & butterfly delete & V6 air box

1998 XJ 4.0L, stock with 109,XXX miles

First Jeep: 1962 Willys CJ-3B


Top
 Profile

 Post subject: Re: How long SHOULD glow plugs last?
PostPosted: Sun Sep 19, 2021 4:44 pm
Offline
LOST Member
User avatar

Joined: Mon Jul 11, 2011 8:06 pm
Posts: 271
Location: Lebanon, KY, USA
Here's a video I just ran across from ID parts: https://www.youtube.com/watch?v=SYWHx65elCU&t=189s

_________________
2005 Liberty Limited CRD; Air Filter Monitor; Samco Hoses; GDE HOT Tune; RL037142AA TC; KJ Interior Rack from All J Products; JBA Adjust-a-strut lift and A-Arms; 245/75R16 Firestone Destination ATs on Moabs; ARB Bumper; ASFIR Skids; FS-2500 Bypass Filter; ARP studs.
2016 Grand Cherokee Overland CRD.


Top
 Profile

 Post subject: Re: How long SHOULD glow plugs last?
PostPosted: Sun Sep 19, 2021 5:04 pm
Offline
LOST Member
User avatar

Joined: Mon Jul 11, 2011 8:06 pm
Posts: 271
Location: Lebanon, KY, USA
user113 wrote:
Here's a video I just ran across from ID parts: https://www.youtube.com/watch?v=SYWHx65elCU&t=189s


So, if the "module" is nothing more than a relay, then it would seem the ECM is actually controlling the voltage.

_________________
2005 Liberty Limited CRD; Air Filter Monitor; Samco Hoses; GDE HOT Tune; RL037142AA TC; KJ Interior Rack from All J Products; JBA Adjust-a-strut lift and A-Arms; 245/75R16 Firestone Destination ATs on Moabs; ARB Bumper; ASFIR Skids; FS-2500 Bypass Filter; ARP studs.
2016 Grand Cherokee Overland CRD.


Top
 Profile

 Post subject: Re: How long SHOULD glow plugs last?
PostPosted: Sun Sep 19, 2021 9:11 pm
Offline
Moderator
Moderator
User avatar

Joined: Sat Aug 24, 2013 11:36 pm
Posts: 6197
Location: Central GA
user113 wrote:
user113 wrote:
Here's a video I just ran across from ID parts: https://www.youtube.com/watch?v=SYWHx65elCU&t=189s

So, if the "module" is nothing more than a relay, then it would seem the ECM is actually controlling the voltage.

Yes, it is a very different type of
relay/module and is controlled by the ECM based on programing/maps stored in the ECM's memory.
I am sure Yeti, aka Marco Giacomelli, could better explain in detail how the maps are programed for control of the GP module and ultimately the Glow Plug Voltage and time spans.
.

_________________
Supporting Vendor and Moderator of LOST
05 Jeep Liberty CRD Limited :JEEPIN:
Ironman Springs/Bilstein/Shocks
Yeti StgIV Hot Tune
Sasquatch BatteryTray
No FCV/EGR
Samcos/ProVent
SunCoast/Transgo
Carter Intank-pmp
2mic.Sec.Fuel Filter
Flowmaster/NO CAT
V6Airbox/noVH
GM11 bld.fan/NAPAHDClutch
IronrockArms/wwdieselMount


Top
 Profile

 Post subject: Re: How long SHOULD glow plugs last?
PostPosted: Mon Sep 20, 2021 7:14 pm
Offline
LOST Member

Joined: Sat Oct 13, 2018 10:09 pm
Posts: 365
Location: Australia
user113 wrote:

So, if the "module" is nothing more than a relay, then it would seem the ECM is actually controlling the voltage.



I suspect the ECM just provides a switching voltage, that is, its on for a part of the time at 12v and off the remainder of the time. Doing this at a reasonable frequency would result in an average voltage of about what is set.
I wonder what would happen if some one removed the ECM supply and replaced it with a 12v supply from the battery?
A part from shortening GP life, they would heat up quicker.

_________________
Australian KJ CRD 2006


Top
 Profile

 Post subject: Re: How long SHOULD glow plugs last?
PostPosted: Mon Sep 20, 2021 10:41 pm
Offline
Moderator
Moderator
User avatar

Joined: Sat Aug 24, 2013 11:36 pm
Posts: 6197
Location: Central GA
Quote:
I wonder what would happen if someone removed the ECM supply and replaced it with a 12v supply from the battery?

You would probably burn them out in short order. They cannot withstand 12v for any length of time.

From manual:
When the ignition is turned on, the ECM activates the glow plug relay for a time period that is determined by engine coolant temperature, atmospheric temperature and battery voltage.
The GP module/relay is wired 12v hot all the time, the voltage going to the glow plugs is pulsed by the ECM based on the 3 above input values it receives.
The module is pulsed by the ECM via a grounding circuit and feedback it receives from the GP module.
Adding a manual switch would be of no use since is already supplied 12v all the time.

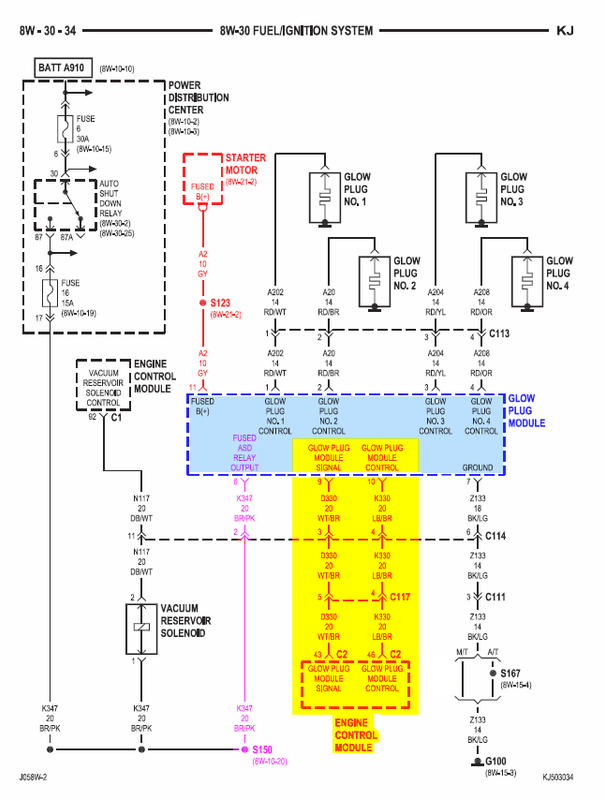

See wiring schematic.
