Transfer case w/n go back in 2wd

blueray · **Joined:** Thu Aug 03, 2017 10:44 am **Posts:** 6

My transfer case will not go back to 2wd. It will shift into all the other positions. I couldn't shift it into 2wd at the transfer case with the cable connected or not. I replaced the transfer case and I can shift it into 2wd without the cable the cable connected. Still can't shift with the shifer into 2wd with cable connected. Looking closer at the cable at the transfer case, the cable bending so it's not going into 2wd. I can manually put it in 2wd with cable attached.

I found a cable part #52060462ag on the forum but I can't find anywhere it works on a Liberty CRD.

Thanks for any help

WWDiesel · **Posted:** Tue Apr 29, 2025 11:11 pm

Which transfer case do you have, depending on model, there were three different options used in the Jeep CRD.
231, 241, & 242. They use different shift lever assemblies depending on model.

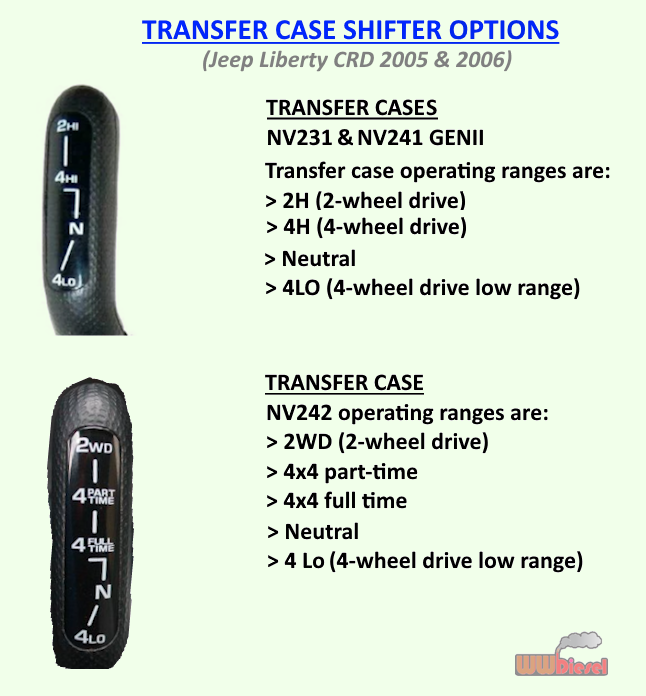

Command Trac System versus Selec-Trac Full Time 4WD System

blueray · **Joined:** Thu Aug 03, 2017 10:44 am **Posts:** 6

I have the Np242.

WWDiesel · **Posted:** Wed Apr 30, 2025 3:29 pm

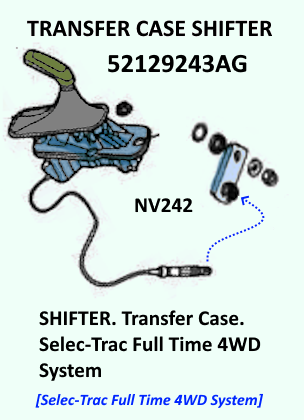

DOES NOT FIT A COMMAND TRAC TRANSFER CASE!
Must be a NV242 Selec-Trac w/full time 4x4 available.

blueray · **Joined:** Thu Aug 03, 2017 10:44 am **Posts:** 6

That's what thought.

Thanks for the help
