 Post subject: HOW TO: Restore Headlights
PostPosted: Sat Feb 08, 2020 5:53 pm
Offline
LOST Addict
User avatar

Joined: Sun Oct 23, 2011 7:32 am
Posts: 3057
Location: Philadelphia, PA
My 2008 KK's headlights were looking pretty shabby. The headlights are not phenomenal anyway on the KK, but in their condition they were scattering light instead of focusing it down the road. New headlights can be $250 each! But a headlight restoration kit is only about $19, so I figured I'd give it a shot. The Sylvania Headlight Restoration Kit has a lifetime warranty, so that's what I got.


Here are the housings removed from the Jeep. You can see how scratched up and faded they are. 11 years of UV and road debris have taken their toll.

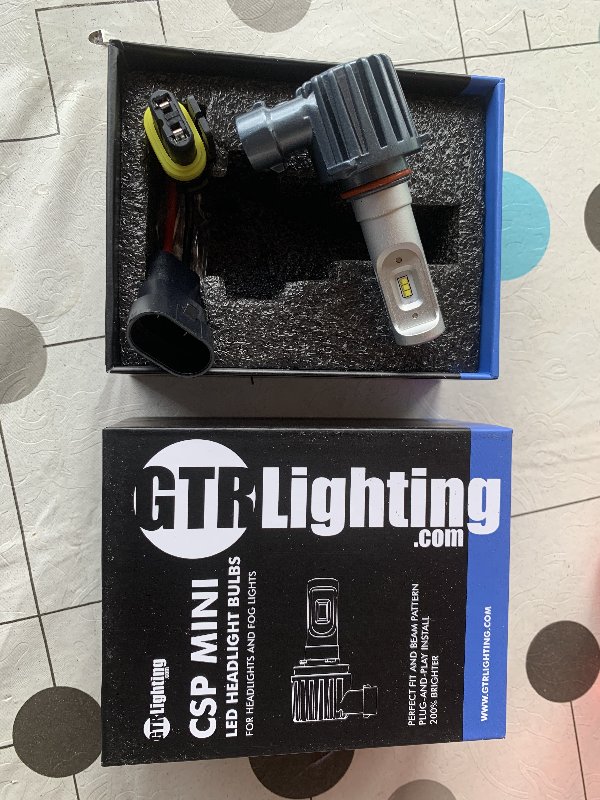

I also had a fog light bulb out, so I decided to replace the fogs while I was at it. I went with LED's from GTR lighting, which get amazing reviews. I have my eye on the GTR Ultra 2 LED headlight bulbs for when the time comes. The Silverstar headlight bulbs are still ok for now.

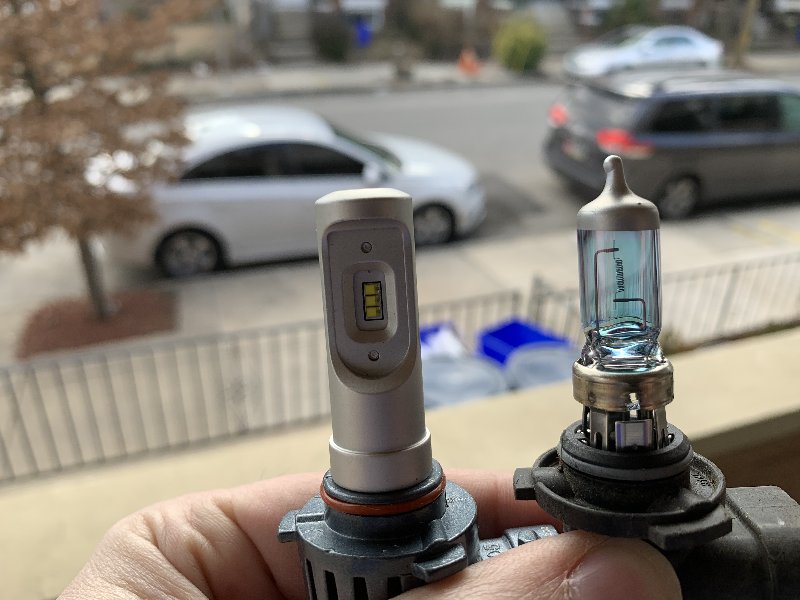

Here is a comparison of the GTR LED fog light bulb on the left with the Sylvania Silverstar fog light bulb on the right. Notice that the height and position of the LED chips mimics the location of the lighting filament in the conventional bulb.

Fogs installed. Note I have them positioned so the light gets thrown sideways, not up and down which would blind oncoming drivers. The GTR bulbs have an adjustable allen key screw that allows you to fine tune the bulb's direction.

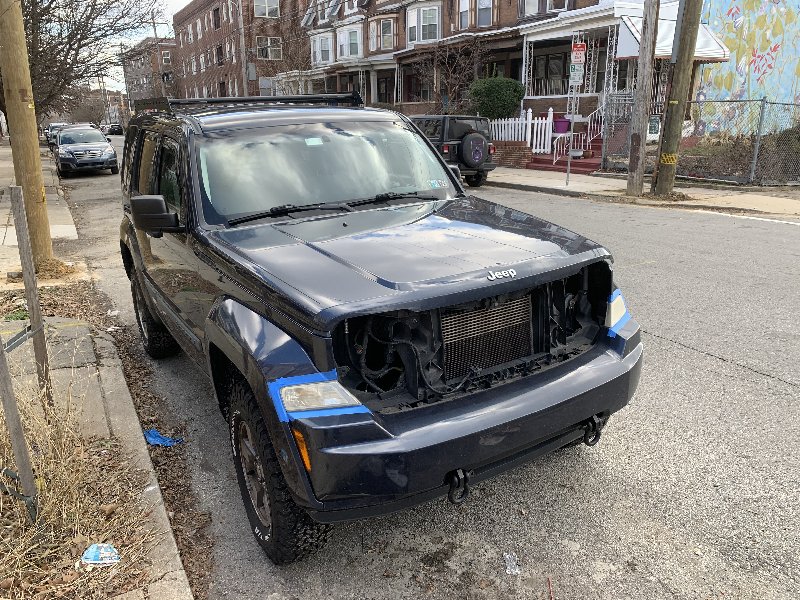

Here's the Jeep with the grille and headlights removed. I'm starting to mask off the turn signals with painter's tape so that I won't damage the Jeep's paint when I am sanding them.

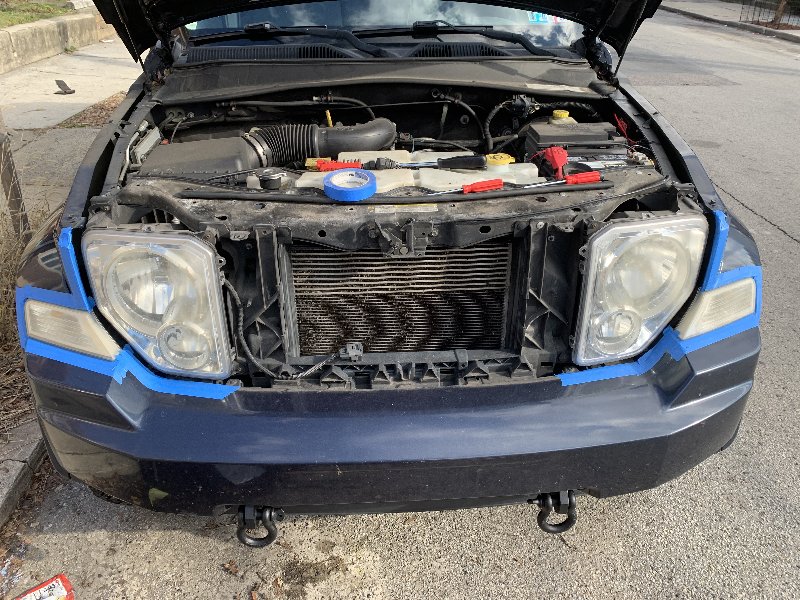

I reinstalled the headlights and masked off the rest of the paint. I wanted to be able to work in a single area to simplify the headlight restoration process. Thus, I put all the light housings back on the vehicle.

The headlight restoration kit came with just about everything needed to perform the work, except for the painter's tape and a spray bottle with water. (All of the sanding is wet sanding.) Follow the directions and you will be good.
1. Spray the headlight activator on the plastic and let sit 30 seconds. This dissolves the yellow oxidized plastic from the outside of the housings. Then wash.

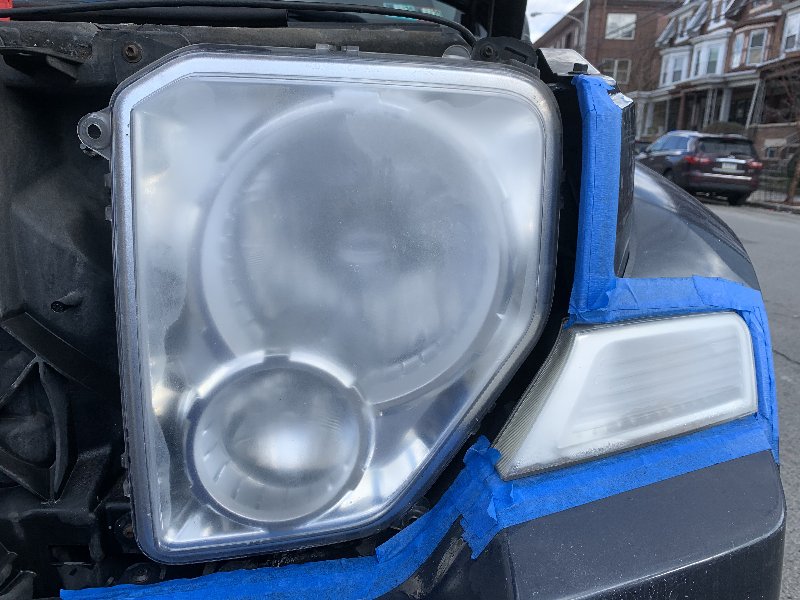

2. Wet sand with 400 grit sandpaper for 5 minutes. Here's what it looked like after this stage. Pretty hazy.

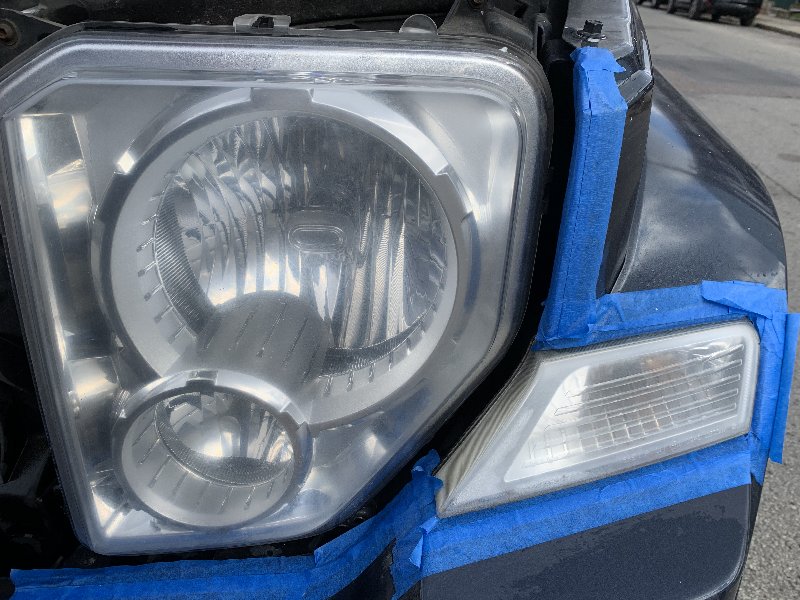

3. Repeat the previous step with 1000 grit and then 2000 sandpaper. Things are looking better.


4. Repeat again using the polishing compound, then wash and dry.
5. Spray the activator on it again, let sit 30 seconds, then wash and dry.

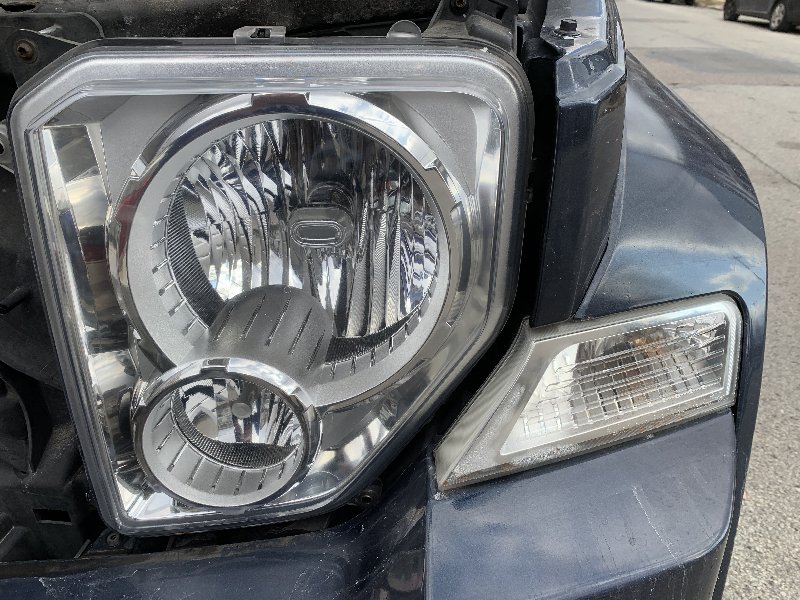

6. The final treatment is the UV resistant coating. This needs to be applied with a rubber glove because it isn't good for you. You put it on a folded paper towel and wipe across the lens in a single direction, just once. You do several passes from top to bottom. What a difference!


So, how much of a change did we get?

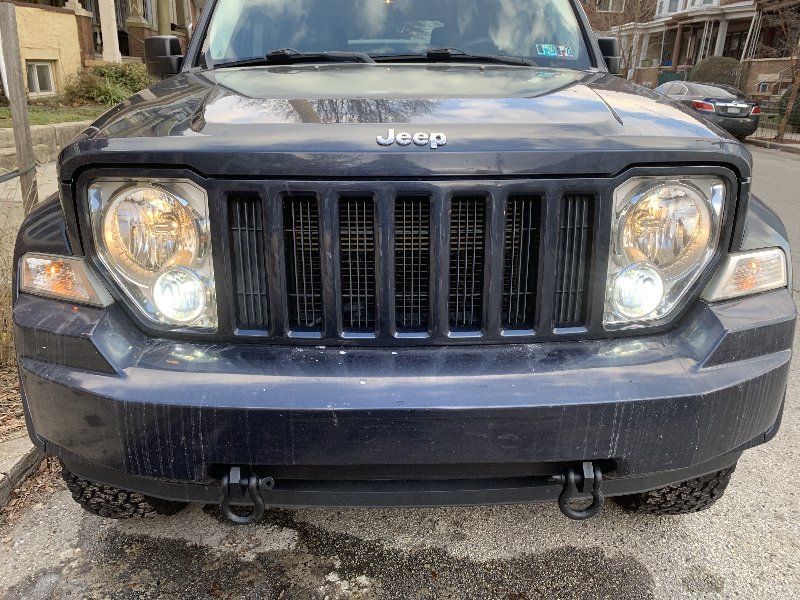

Before restoring (but with GTR fog lights):

After restoring:

I'm very happy with how things turned out. You have to wait 6 hours before driving, so that the UV resistant coating can cure. I think I'll take it through a car wash tomorrow to get rid of the tan "mud" which is actually just plastic dust from the sanding.

_________________
2008 Liberty Sport 4x4 Automatic
Jeepin By Al 4" Lift Kit
BFG KO2’s 245/75R16
Full MOPAR skid plates
Rock Lizard Skink Super Sliders
AtTheHelm Front Recovery System & Roof Rack

M116A3 Trailer build thread: viewtopic.php?f=72&t=77997


Top
 Profile

 Post subject: Re: HOW TO: Restore Headlights
PostPosted: Sat Feb 08, 2020 6:13 pm
Offline
LOST Addict
User avatar

Joined: Sun Oct 23, 2011 7:32 am
Posts: 3057
Location: Philadelphia, PA
Mods, this was supposed to go in the KK tech section. Would you please move it? Thanks.

_________________
2008 Liberty Sport 4x4 Automatic
Jeepin By Al 4" Lift Kit
BFG KO2’s 245/75R16
Full MOPAR skid plates
Rock Lizard Skink Super Sliders
AtTheHelm Front Recovery System & Roof Rack

M116A3 Trailer build thread: viewtopic.php?f=72&t=77997


Top
 Profile

 Post subject: Re: HOW TO: Restore Headlights
PostPosted: Sun Feb 09, 2020 3:18 pm
Offline
LOST Newbie
User avatar

Joined: Tue Aug 26, 2014 10:56 pm
Posts: 60
Location: NYC
Looks good! I'll have to give that one a try. I used Meguiar's and not too happy with the results.

_________________
The sea is a cruel mistress.

2012 Liberty Latitude 4x4
MOPAR Skids
ATH Front Recovery System, Roof Rack, Rock Rails, and Rear Bumper with Carrier
JBA 4" Lift
4.56 Yukon, Eaton-E Front Locker
255/75R17 Duratracs on Rubicon Wheels


Top
 Profile

 Post subject: Re: HOW TO: Restore Headlights
PostPosted: Tue Feb 11, 2020 6:30 pm
Offline
LOST Newbie

Joined: Wed Jun 21, 2017 4:53 pm
Posts: 16
Hi there, can you please post a link to Amazon, so I can purchase, those led bulbs...?

As well for the main head lights, if possible....

It would be easier and cheaper than going on test/error/test, etc...

Thanks,

Sent from my SNE-LX3 using Tapatalk

_________________
For my Mall Crawling Stock Beast



Chereveco9 a.k.a Chereveco


Top
 Profile

 Post subject: Re: HOW TO: Restore Headlights
PostPosted: Tue Feb 11, 2020 8:36 pm
Offline
LOST Addict
User avatar

Joined: Sun Oct 23, 2011 7:32 am
Posts: 3057
Location: Philadelphia, PA
Hi Neil,

I got the LED headlights direct from the manufacturer, GTR Lighting. (Links below.)

Here are the LED headlight bulbs I want to buy when I have the $$$. They are pricey but get great reviews.
https://gtrlighting.com/h13-9008-gtr-lighting-ultra-2/

A good YouTube review of the headlights: https://youtu.be/uO8Nuj6tPy4

Here are the fog lights I got that you see installed above. They really are an incredible improvement.
https://gtrlighting.com/gtr-lighting-csp-mini-led-headlights-9005-9145-bulbs/

And finally, here is the Sylvania headlight restoration kit I used to make the lenses clear again.
https://www.amazon.com/dp/B00429NKWK/ref=cm_sw_r_cp_awdb_t1_oB0qEbH4ESZGC

_________________
2008 Liberty Sport 4x4 Automatic
Jeepin By Al 4" Lift Kit
BFG KO2’s 245/75R16
Full MOPAR skid plates
Rock Lizard Skink Super Sliders
AtTheHelm Front Recovery System & Roof Rack

M116A3 Trailer build thread: viewtopic.php?f=72&t=77997


Top
 Profile

 Post subject: Re: HOW TO: Restore Headlights
PostPosted: Wed Feb 12, 2020 1:02 pm
Offline
LOST Newbie

Joined: Wed Jun 21, 2017 4:53 pm
Posts: 16
lfhoward wrote:
Hi Neil,

I got the LED headlights direct from the manufacturer, GTR Lighting. (Links below.)

Here are the LED headlight bulbs I want to buy when I have the $$$. They are pricey but get great reviews.
https://gtrlighting.com/h13-9008-gtr-lighting-ultra-2/

A good YouTube review of the headlights: https://youtu.be/uO8Nuj6tPy4

Here are the fog lights I got that you see installed above. They really are an incredible improvement.
https://gtrlighting.com/gtr-lighting-csp-mini-led-headlights-9005-9145-bulbs/

And finally, here is the Sylvania headlight restoration kit I used to make the lenses clear again.
https://www.amazon.com/dp/B00429NKWK/ref=cm_sw_r_cp_awdb_t1_oB0qEbH4ESZGC



Hello There!!

Checked your links, and WOW, they are pricey in deed, saved the links, after the brake job is done, and I get back on my feet, perhaps I will give a go, on those led... they look real good, the guy in the video explained really well. Also I have some paint retouching in mind...

Been surfing the web for some used leather seats ( gray ), but none!!!

Thanks again for your intel.

_________________
For my Mall Crawling Stock Beast



Chereveco9 a.k.a Chereveco


Top
 Profile

 Post subject: Re: HOW TO: Restore Headlights
PostPosted: Wed Feb 19, 2020 11:10 am
Offline
LOST Newbie

Joined: Sat Apr 13, 2019 9:12 am
Posts: 55
Location: Ohio, USA
Nicely done! I have used the 3M kit in the past on a WJ, and was pleased, but your results seem just a bit better.

_________________
Until the next dimension,
Admiral "Coluch"
------------------------------------------
Lando Liberty 2011 Kk
