aux lights on bumper or grill???

DoubleK · **Posted:** Mon Jan 03, 2011 12:11 am

Elt31987 wrote:

Front with ghetto vinyl application.

Side View

Front upclose

Turned on

Hole in the Firewall to pass the wires through

And the rubber grommet that simply pops out of the firewall

And couple of install pics

that looks amazingggggggg! nice job! :BINGO:

geene519 · **Posted:** Mon Jan 03, 2011 4:14 pm

Looks good ELT. I'm finally starting mine, test fitted the lights today on the bar. I have to put a few spacers in order to make the lights not point up because they are contacting the bar, no biggie. Also i'm not going to put a screw into the plastic, i'm going to drill a hole in the metal about 6 inches below and use a rather large bolt to hold them in place.

Elt31987 · **Posted:** Mon Jan 03, 2011 4:35 pm

ya i needed to get a few washers also

Jeepin_it_real · **Posted:** Mon Jan 03, 2011 6:54 pm

are those the changing color turn signals/ running lights?

DetroitKK · **Posted:** Mon Jan 03, 2011 7:29 pm

So I've been following this thread for a while cuz I'm definitely planning on adding some fogs to my bumper. The one thing holding me back is that I wanna keep the "Blacked out" look goin, so I've been hesitant to purchase any lights. I've always been a fan of Hellas and I plan on put 4 Hella 550s(The rectangular ones) on the roof. I noticed Hella makes a new series of driving light called the "Black Magic"... pretty awesome looking lights, but since I'm going with driving lights up top, it doesn't solve my foggie problem. I did a bit of digging, and even though the part number is hard to find, you can actually order the black magic black rock shields... I also checked the dimensions and it seems the black magics are the exact size as the 500s.

Thennn I came across these Color Shieldz, which are just a thin laminate that you stick over the light. These laminates come in a "smoke" variety. So now that I've found what seem to be two pretty viable options, I think I'm gonna order my Hella fogs this week. I'll probly end up buying both covers just so I can play around and see which ones look the best, but anyone have a preference?

The Front of my KK

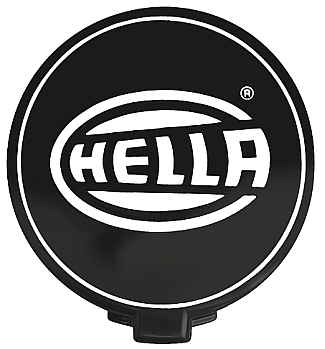

Black Magic Covers

Smoke Laminate

And the Standard Hella 500 covers that come with the kit

Elt31987 · **Posted:** Mon Jan 03, 2011 10:30 pm

Jeepin_it_real wrote:

are those the changing color turn signals/ running lights?

There some cheepo bulbs i bought on ebay that are made by Cycolite or something similar to that. They looked blue when turned off but white when turned on

DoubleK · **Posted:** Mon Jan 03, 2011 10:31 pm

Detroit, i love what u did with the turn signals, looks maaaaad niceeeee :!:

Jeepin_it_real · **Posted:** Tue Jan 04, 2011 1:19 am

Detroit get the hella 500 blak magics... i have them they are excellant.... the cols limit light output.... if your gunna do lights on top consider black magic ralleyes

Sent from my Dell Streak using Tapatalk

Elt31987 · **Posted:** Tue Jan 04, 2011 10:40 am

Daytime Shot

geene519 · **Posted:** Tue Jan 04, 2011 5:03 pm

Hey ELT...do you have to remove the light bar in order to get the grill off?

did a quick test fit today...

Elt31987 · **Posted:** Tue Jan 04, 2011 5:35 pm

Ya when you cut the lightbar it fits snug against the grill. So basically, if you want to use all 4 screws you need to pull the bumper because the grill wont go back on with the bar bolted on. I just used the 2 front screws for the bumper and it actually is holding quite nicely. If needed ill pull the bumper and bolt down all 4.

geene519 · **Posted:** Tue Jan 04, 2011 6:15 pm

Yea i'm going to use 4 screws *just going to put a piece of metal underneath so the bumper doesn't rip*. I noticed after i test fitted it, all i need to do is put a slight diagonal cut and i should be able to slide the grill on with the lightbar in place.

geene519 · **Posted:** Wed Jan 05, 2011 3:45 pm

Its mounted up now...not wired up yet though. Best part is, i can take the grill off and put it on without removing the lights or bar.

Elt31987 · **Posted:** Wed Jan 05, 2011 3:52 pm

How close did you put the lights to the grill? did you cut the bar so that it would slide inbetween the bumper and grill?

DirtyKK · **Posted:** Wed Jan 05, 2011 3:55 pm

i hate our giant turn signals!

other then that, ya'll got some good lookin grills. kinda makes me miss mine and wish i didnt have the winch.... but.... NAAA :jester:

geene519 · **Posted:** Wed Jan 05, 2011 4:05 pm

here is a top view and side view. I cut the bar to allow it to slide under the grill slightly.

Elt31987 · **Posted:** Wed Jan 05, 2011 4:16 pm

Thats about how close mine is, but i only cut the bar enough so that its flush against the grill.

geene519 · **Posted:** Wed Jan 05, 2011 4:28 pm

yea...mine is pushed out probably 1/2 more than yours is by looking at your pictures. i did it this way for the easy of getting the grill off. Now i'm trying to decide if i want to paint my grill black or line-x it. hmmmm, decisions.

geene519 · **Posted:** Fri Jan 07, 2011 5:03 pm

Finished up the install today.

here is where i mounted the switch.

And of course...all the lights on...

Elt31987 · **Posted:** Fri Jan 07, 2011 5:35 pm

very nice
