I completed mounting my brake controller. Here are a few tips for the next guy

The Mopar factory 7 pin harness uses a red wire for the trailer brake. To find the end you need to connect to, pull the driver side kick panel. It secures to the body with 3 or so metal clips - just pull it out. (It also snaps at the back side to the next section of plastic trim.) Find the main wire bundle and look for a red wire with green marking tape (see pic):

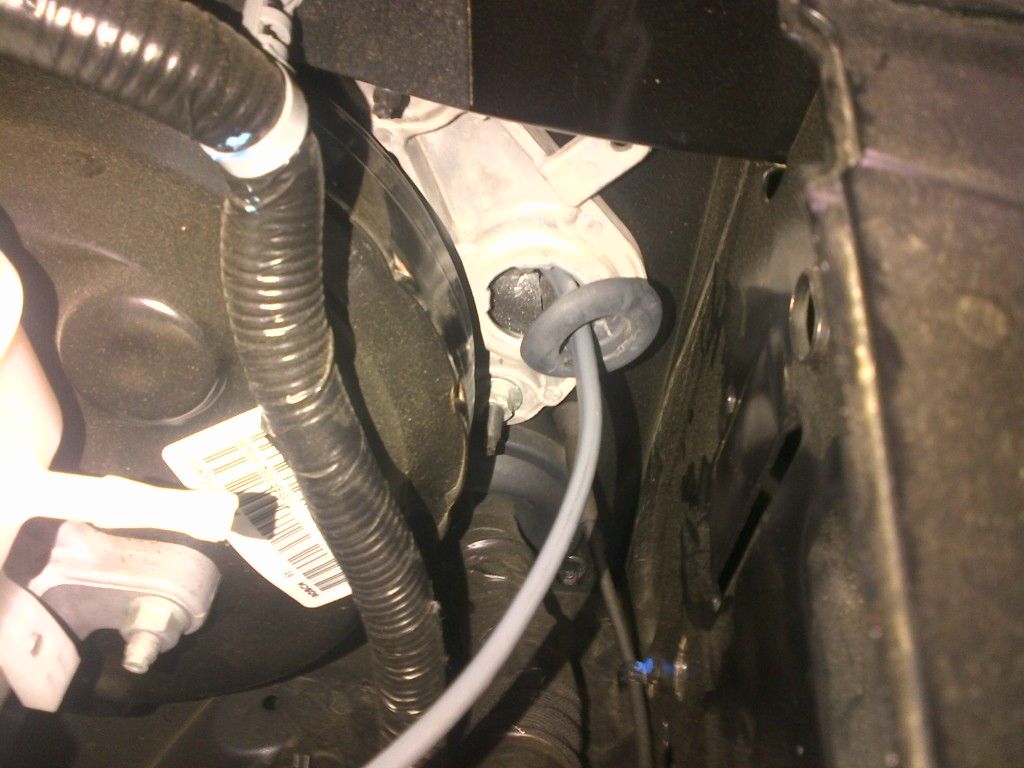

I mounted a 20A breaker behind the dash and fed the +/- connections to the battery through this firewall grommet:


I used a quick splice connector to tap the brake light switch at the pedal. I checked it with a multi-meter to ensure I got the correct wire... (I think it was white with a green tracer stripe.)

Finished:

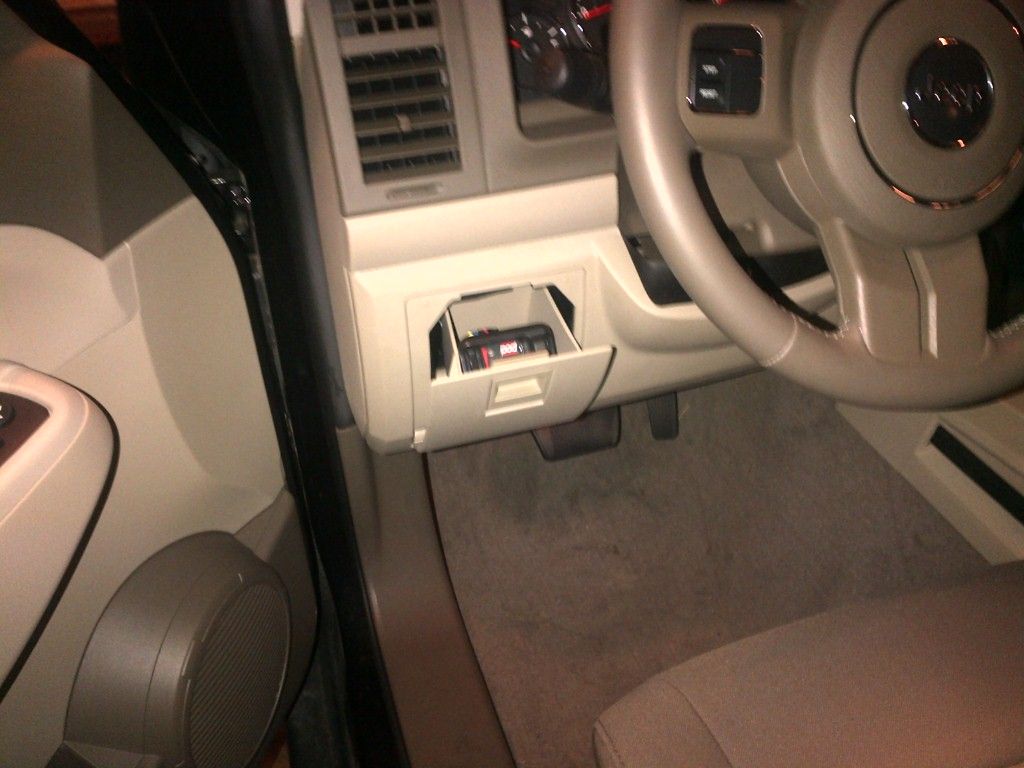

Now u c it:

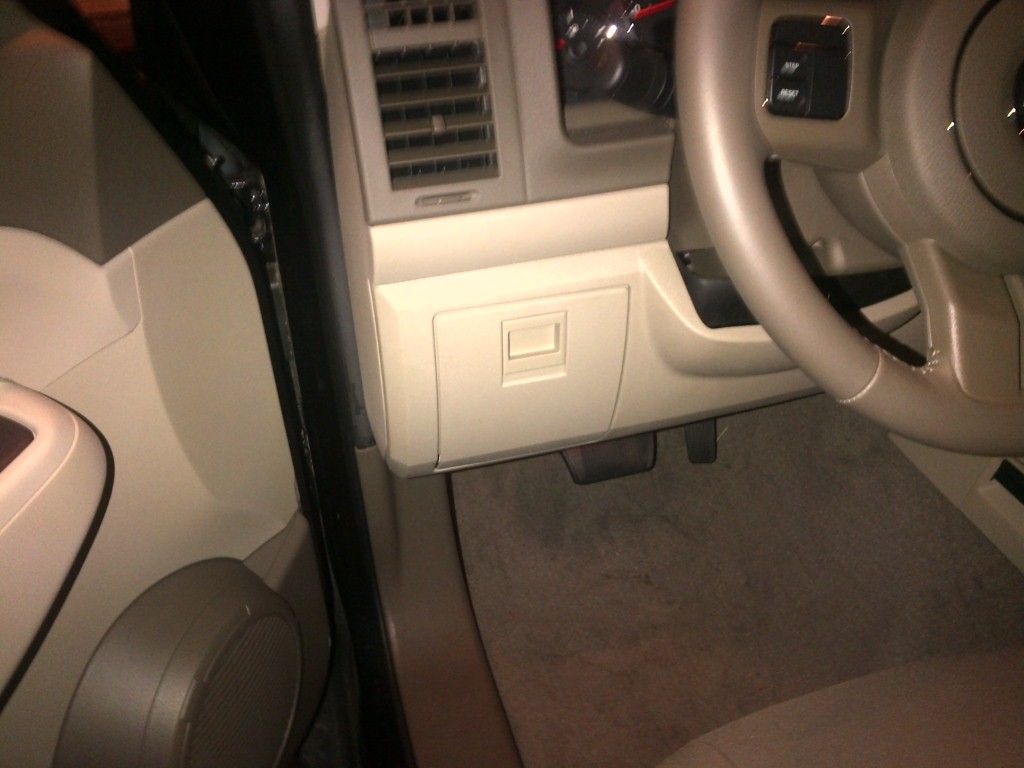

Now u don't:

_________________
1995 YJ 2.5L 5 speed, 4.88's, Aussie Locker D30, 35" Mud Rovers, Herculined tub, TKH rear bumper, Ford 8.8, JB Conv. SYE, Sylvania Silver Stars, T-MAX 9K winch, MORE 1" body lift, Turbo City oil pan skid, Rubicon Express 4" lift...

2012 KK Black all stock.

That's a clean install!! Nice job, man.

_________________
2008 Liberty Sport 4x4 Automatic

Jeepin By Al 4" Lift Kit
BFG KO2’s 245/75R16
Full MOPAR skid plates
Rock Lizard Skink Super Sliders
AtTheHelm Front Recovery System & Roof Rack
M116A3 Trailer build thread: viewtopic.php?f=72&t=77997

Well done on the install. Thanks for taking the time to take and post the Pics. I'm sure it will help someone down the road.
