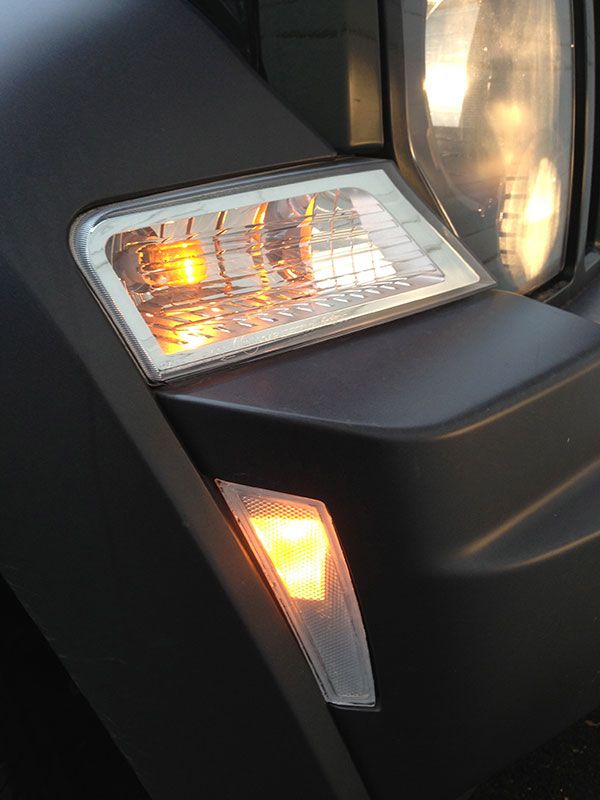

i wanted the clear side markers, but also wanted to keep the actual lights… so i did just that.

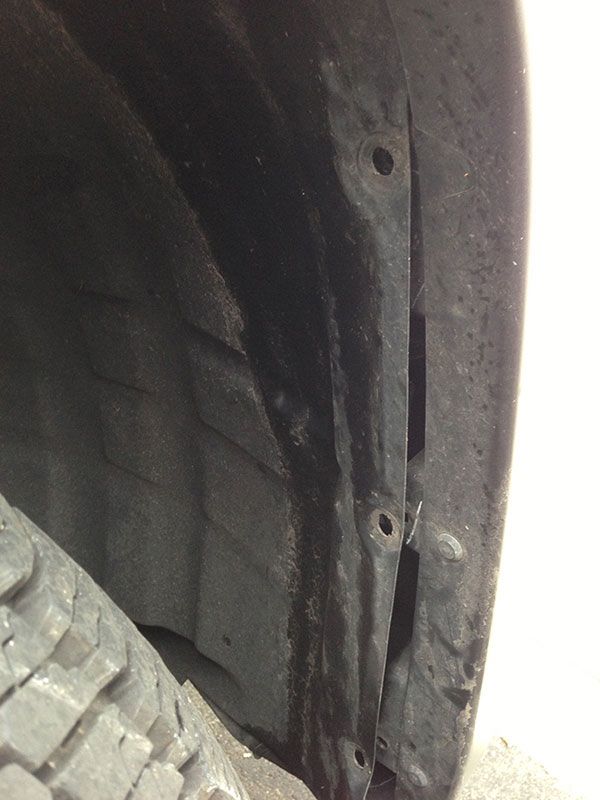

1) remove side marker from jeep. pop out 3 black plastic holders inside fender.

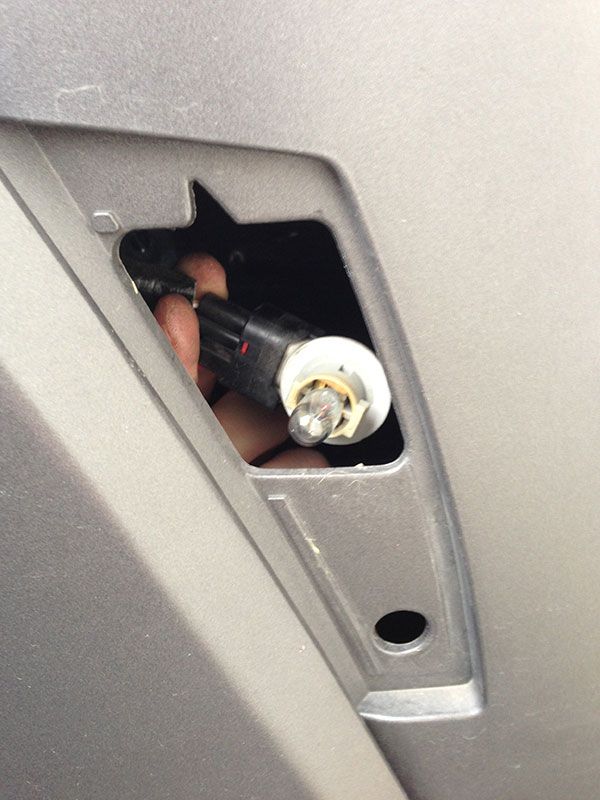

2) remove 11mm holder nut & light wire plug from housing.

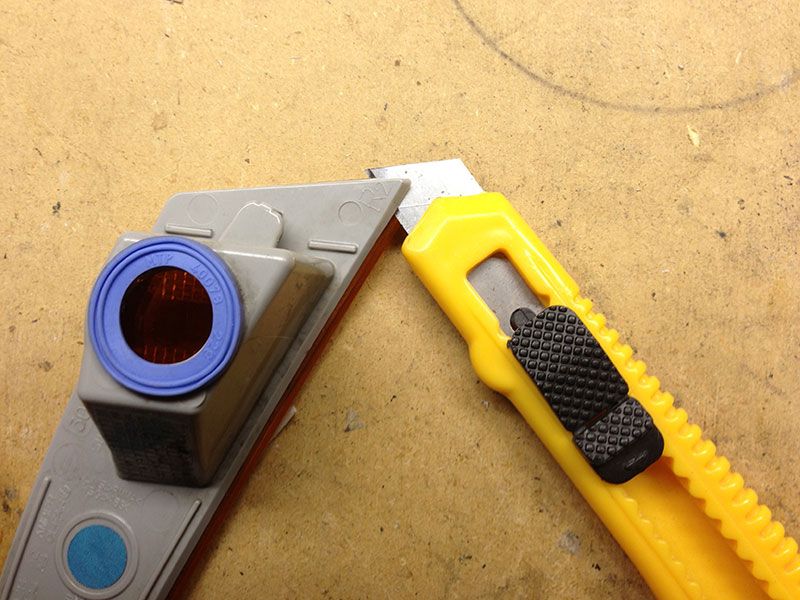

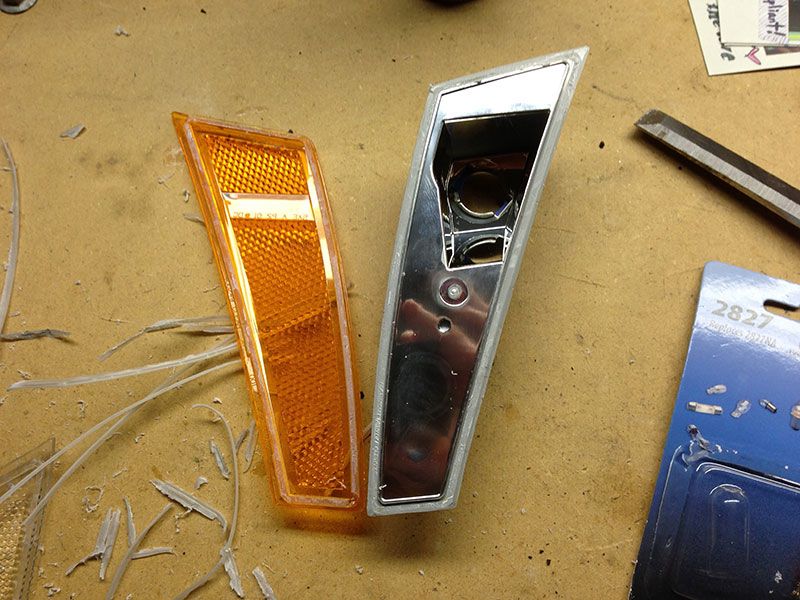

3) remove amber plastic from back reflective light housing, i used a razor knife and sharp wood chisel carefully to not break or crack the plastic.

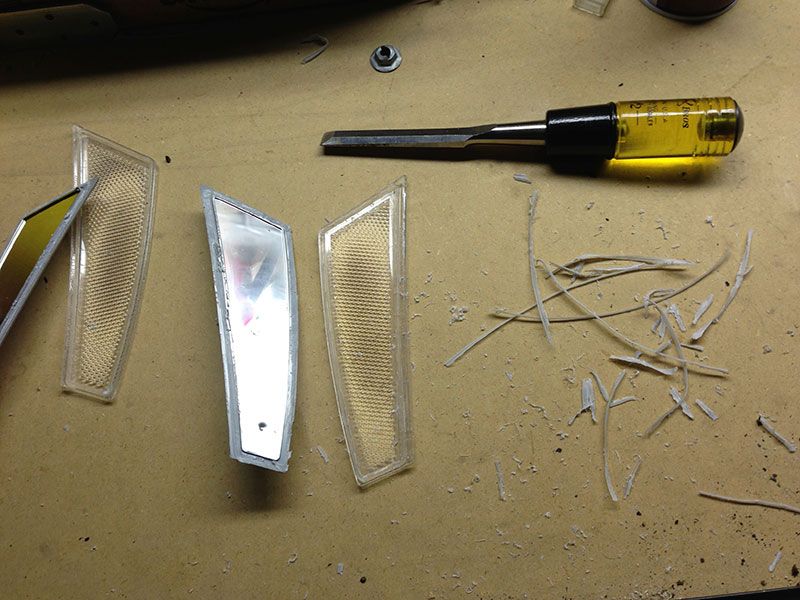

4) clean/scrape excess glue from plastic.


5) remove clear plastic from back reflective plastic [same procedure].

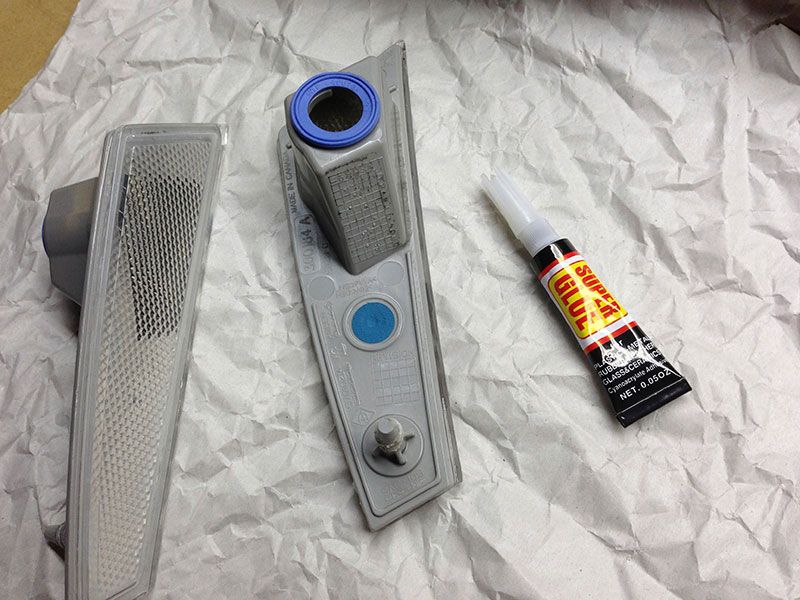

6) apply super glue bead and press clear plastic to reflective back plastic with light mount.

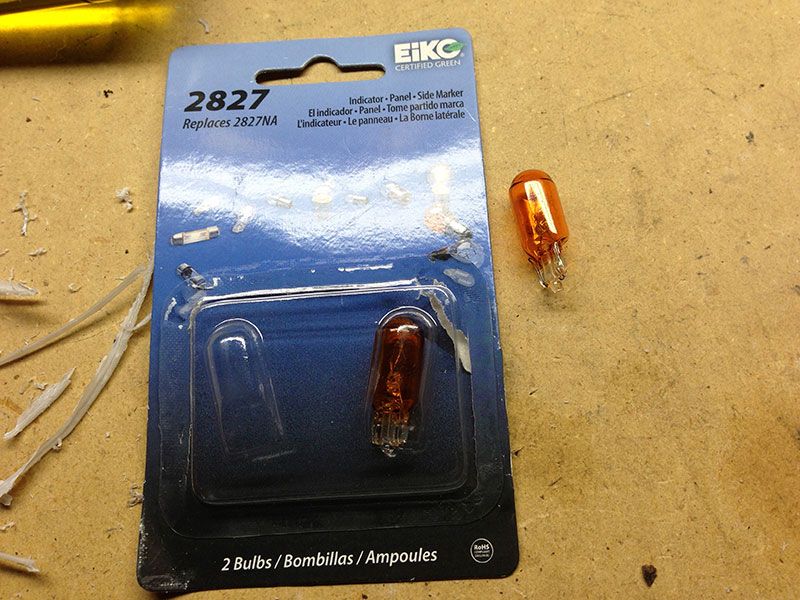

7) replace clear light bulbs with amber ones.

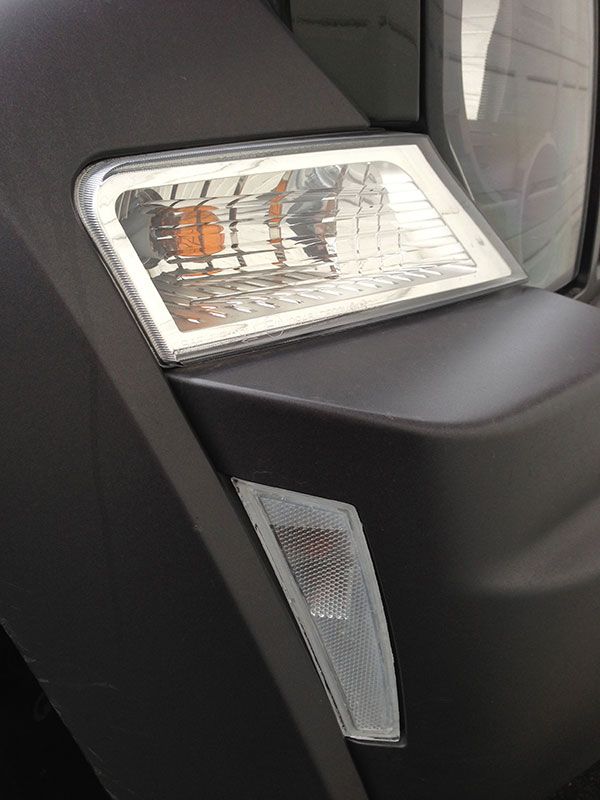

8 ) install.

I was thinking of doing the same thing!! You beat me to it, plus ill have mine in another day or so and I'll have my jeep back by the end of the week.... Nice write up too and now after seeing it done, believe it or not I might not do it now. Not to crazy of the half lit. My only thing I would do different is put a hyper white bulb In there, hate amber.
Main question is, what did you use to seal it back up?

check out step #6. i used a bead of super glue, plastic to plastic.

Nice! Thanks for the write up and guts to rip those apart.

where did you get the clear sidemarker?

i did see that but I guess they are done buying them. I tried clicking on the order form but it makes me log into some gmail account.

Thanks again for the write-up. Razor knife and sharp wood chisel worked great. I wasn't confident with super glue though. I used LOCTITE Stik'n Seal Extreme Conditions (Water, UV, vibration & impact resistant).


Also, I left the white light (though it does look kinda amber in the cell phone pic). I'm not sure about NC laws and side marker color but I doubt I'll fail an inspection or ever get a ticket for it.

Perfect I was about to go do this when I got my markers but now weather is just too cold for outside work. Wait till spring now

Too cold?!? It takes mere minutes and you could put some gloves on.

To clarify, a minute or two to get out and reinstall but cutting and removing the glue takes some time. Start with the clears, get them apart and cleaned up first.

great work fellas I shall do the same

_________________
2012 KK Cherokee * Arctic by Musclez * Mineral Gray
- Too Much to list BUILD THREAD

Found them on eBay. Expensive but this is the ONLY set out there. I have searched everywhere.

http://www.ebay.com/itm/2008-2012-Jeep- ... 2ec770a444

Those photos look awfully familiar lol.

_________________
2008 Black Liberty Sport 4X4 - Red and Black wheels and trim - Painted headlight bezels - Magnaflow Exhaust.

I think that's about the price we paid in the "Group Buy", maybe it was $10 cheaper.
But yeah, ebay seller stole those pics. I'm not feeling like the ebay police today but wrong36 could get the auction pulled, or at least the pictures removed, if he reported it.
