Wiring led light bar to high beams?

At The Helm · **Posted:** Thu Jan 30, 2014 1:53 am

Anyone ever try wiring auxilliary lights to come on with the high beams? I'd like to wire my new 20" chinese led light bar to come on with the high beams, turn on solo whether the Jeep is turned on or not, and also be able to use the high beams/low beams just the way it came. I have my reverse lights circuitry rigged up similar to this, so I understand how the wiring would work. Here is a diagram for what I'd like to do.
http://www.cumminsforum.com/forum/07-5- ... beams.html

What I'm afraid of is it interfering with the canbus system. I remember a couple years ago a bunch of people trying to install hids in kk's and having problems even when using relays.
Also I haven't looked around to see where I could tap in to trigger the relay for this set up.

lammarco · **Joined:** Sun Mar 18, 2012 3:37 pm **Posts:** 274

This is what I did to control the DRL. full brightness when light is off, and dim it when headlight is on. It's very similar to your setup.

silverkk · **Joined:** Mon Feb 04, 2013 12:27 pm **Posts:** 637

Morgan I can't view that link but I always wanted to wire my bottom light to flash when I lock and unlock my kk

Sent from my iPhone using Tapatalk

silverkk · **Joined:** Mon Feb 04, 2013 12:27 pm **Posts:** 637

Have it work like the headlights stay on when unlock and shut off when locked and work with a switch normally

Sent from my iPhone using Tapatalk

At The Helm · **Posted:** Mon Feb 03, 2014 12:51 am

silverkk wrote:

Morgan I can't view that link but I always wanted to wire my bottom light to flash when I lock and unlock my kk

Sent from my iPhone using Tapatalk

Not sure if thats possible without your light bar flashing when you use your turn signals too.

At The Helm · **Posted:** Mon Feb 03, 2014 1:00 am

I did look at the wiring for the headlights the other day. The wire that powers the high beams has 3.8 volts running through it while the low beams are on. When the high beams get switched on, it goes up past 12. I read that most relay's coil closes at around 8 volts so I think this might work.
For anyone wondering why I want to run it like this, my commute involves a bit of rural highway driving with a lot of deer. Yes I do plan on using this on a public highway BUT I will know way in advance that there is oncoming traffic.

infernicus · **Posted:** Mon Feb 03, 2014 6:11 pm

This is what you're looking for. I've been using this method for years with my different lights (fog, auxiliary reverse)
Very easy to do, all you need is a standard relay, and an ON-OFF-ON switch.

viewtopic.php?f=45&t=63132

Any questions, let me know!

At The Helm · **Posted:** Mon Feb 03, 2014 7:19 pm

Awesome thanks Infericus, I'll use your diagram. I have all the wire, connectors, switch and relay in posession. Just haven't had time to do it.

JeepMorrison · **Joined:** Thu Jul 16, 2009 11:34 am **Posts:** 1236

Let us know if the relay works....I wanna hook mine up like that. I live out in the backwoods

Sent with the power of children's screams!!!

At The Helm · **Posted:** Tue Feb 04, 2014 11:38 pm

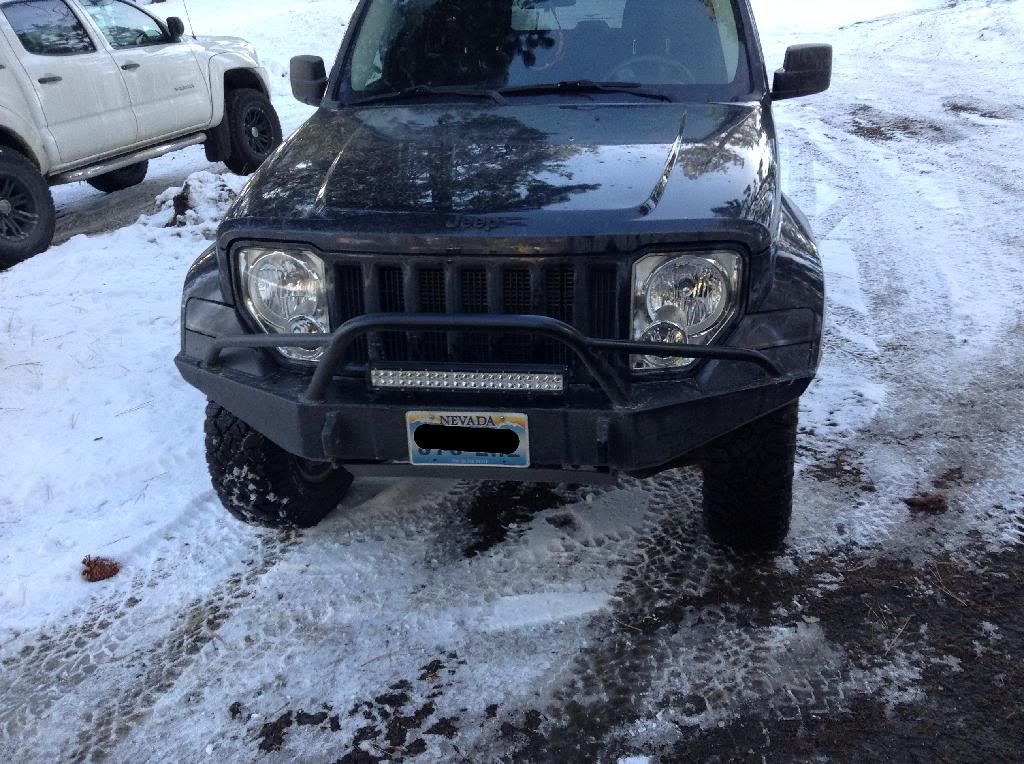

Got the wiring finished today on my lunch break (in a parking lot). The switch set up works great! The only change I made to Infericus' diagram was tying the two + hots together having one fused connection at the battery. The light itself is bright as a mofo. It's a lot brighter than it looks in the pics.

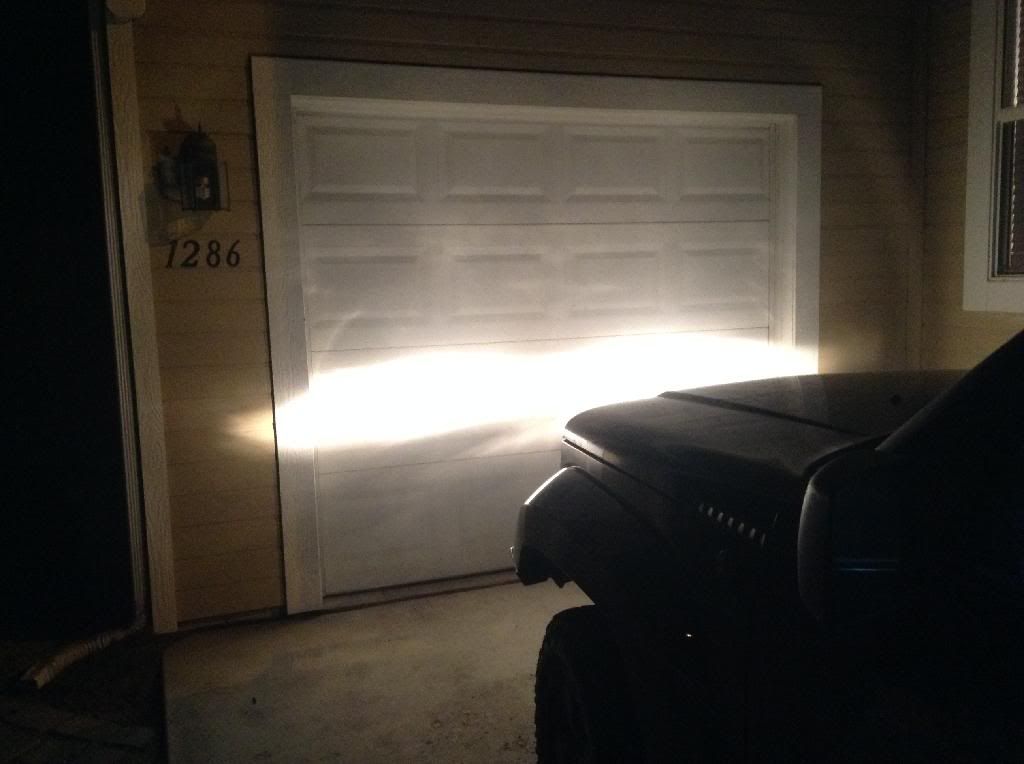

Low beams only

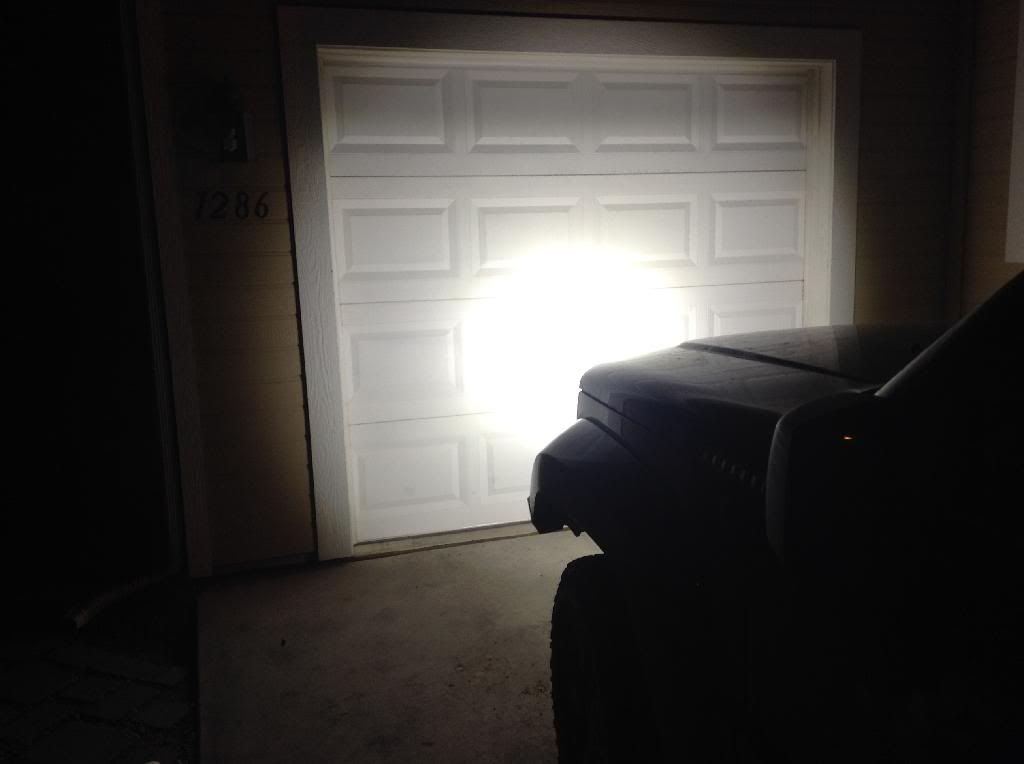

Light bar only

silverkk · **Joined:** Mon Feb 04, 2013 12:27 pm **Posts:** 637

That's not bright lol jk

Sent from my iPhone using Tapatalk

silverkk · **Joined:** Mon Feb 04, 2013 12:27 pm **Posts:** 637

Sent from my iPhone using Tapatalk

At The Helm · **Posted:** Sun Feb 23, 2014 2:38 pm

Well last night when driving home my headlights went out... Thankfully I have fogs or I would have been screwed.
I disconnected the wire from the highbeam circuit and returned it to stock but its still not working. The headlight just flickered a little.
Any ideas?

JeepMorrison · **Joined:** Thu Jul 16, 2009 11:34 am **Posts:** 1236

Maybe the headlight relay or a fuse id check first. Im sure you did that

Sent with the power of children's screams!!!

At The Helm · **Posted:** Sun Feb 23, 2014 6:22 pm

Can't find any fuses or relays related to the headlights, I seems to be controlled by the tipm.
The high beams work normally now, but still no headlights.
I took readings with my multimeter, only 3.8v going to the low beams.

silverkk · **Joined:** Mon Feb 04, 2013 12:27 pm **Posts:** 637

Disconnect the battery let the computer reset then try it

lfhoward · **Posted:** Sun Feb 23, 2014 8:42 pm

Hi Morgan,

I found the headlight troubleshooting section in the FSM. It looks like you might have more than a fuse or relay problem, as a lot of issues can be caused by loss of connection with the TIPM or CAN. See below.

Lauren

Quote:

HEADLAMPS
NOTE: As part of the exterior lighting failsafe feature, upon ignition ON, all exterior park lamps and the headlamp low beams will illuminate regardless of the left multi-function switch control knob position if the SCM cannot detect an input from the left multi-function switch, or if there is a loss of communication between the left multi-function switch/SCM and the EMIC or between the EMIC and the TIPM. Diagnose and repair those problems before attempting to repair the Headlamps. In addition, the TIPM will store a Diagnostic Trouble Code (DTC) for an open or shorted headlamp circuit.

CONDITION
POSSIBLE CAUSES
CORRECTION

HEADLAMP DOES NOT ILLUMINATE
1. Ineffective or missing bulb.
1. Test and replace headlamp bulb if required.

2. Ineffective ground circuit.
2. Test and repair open headlamp ground circuit if required.

3. Ineffective feed circuit.
3. Test and repair open headlamp low beam or high beam feed circuit if required.

4. Ineffective EMIC (CCN) inputs or outputs.
4. Use a diagnostic scan tool to test the EMIC (CCN) inputs and outputs. Refer to the appropriate diagnostic information.

5. Ineffective TIPM inputs or outputs.
5. Use a diagnostic scan tool to test the TIPM inputs and outputs. Refer to the appropriate diagnostic information.

HEADLAMP DOES NOT EXTINGUISH
1. Ineffective feed circuit.
1. Test and repair shorted headlamp low beam or high beam feed circuit if required.

2. Ineffective EMIC (CCN) inputs or outputs.
2. Use a diagnostic scan tool to test the EMIC (CCN) inputs and outputs. Refer to the appropriate diagnostic information.

3. Ineffective TIPM inputs or outputs.
3. Use a diagnostic scan tool to test the TIPM inputs and outputs. Refer to the appropriate diagnostic information.

HEADLAMPS ILLUMINATE WITH IGNITION ON AND HEADLAMP SWITCH OFF (FAIL-SAFE OPERATION)
1. Loss of LIN or CAN data bus communication.
1. Test and repair the LIN or CAN data bus if required. Refer to the appropriate diagnostic information.

HEADLAMPS WILL NOT SWITCH FROM HIGH TO LOW BEAMS, OR FROM LOW TO HIGH BEAMS
1. Ineffective EMIC (CCN) inputs or outputs.
1. Use a diagnostic scan tool to test the EMIC (CCN) inputs and outputs. Refer to the appropriate diagnostic information.

2. Ineffective TIPM inputs or outputs.
2. Use a diagnostic scan tool to test the TIPM inputs and outputs. Refer to the appropriate diagnostic information.

At The Helm · **Posted:** Sun Feb 23, 2014 11:54 pm

LF
Thank you so much for posting that. I did test everything I could with a multimeter, I really wasn't looking forward to going to the dealership for them to use a starscan or tell me I eff'd up big time.

:BANANA:

Good news though. :BANANA:

I left the battery disco'd all day and everything works normal for now. Hopefully it stays that way. Last night I disconnected it for ten mins or so, apparently it takes longer.

lfhoward · **Posted:** Mon Feb 24, 2014 12:32 am

Glad to hear it seems to have resolved itself! A similar thing happened when I was putting in a light switch in my trunk area. I accidentally shorted my interior lights, and they all went out. I couldn't get them to turn on using the switch on the light stalk up front, or by opening doors. I checked the fuses and they were good. I thought I was in to real trouble, but disconnecting the battery for a while somehow reset the breaker!
