 Post subject: Transmission Fluid Leak
PostPosted: Mon Apr 13, 2015 11:33 am
Offline
LOST Member
User avatar

Joined: Wed Feb 12, 2014 12:40 pm
Posts: 154
Location: York, PA
So I was crawling around under the jeep yesterday installing the OEM hitch wiring harness (PITA!) when I noticed the crossmember under the Transmission / Transfer case was oily. When I took a closer look, I noticed a small drip of Transmission Fluid hanging from the transmission.... So now I'm worrying a bit.

I believe I have narrowed it down to a pressure related leak since i'm not leaving any drip marks on the ground on my driveway, so I think I can rule out oil pan / pan gasket issues. I spent a good 30-40 minutes under there trying to find where it is coming from, and I haven't ruled out that it could be my transfer case leaking too.

In the past on other vehicles, I have found transmission leaks using that UV Dye, but I don't know where I would put it on the KK. Would it hurt anything if I poured it right into the service port in the engine bay?

Any other ideas where I should start looking for leaks?

_________________
--Erik--
2008 Jeep KK Sport - Red Rock Crystal Pearl
ATH Front Recovery System
3" OME Lift Kit + Al's A-Arms
Cooper Adventurer A/T - 245/75R16


Top
 Profile

 Post subject: Re: Transmission Fluid Leak
PostPosted: Mon Apr 13, 2015 11:53 am
Offline
LOST Addict
User avatar

Joined: Tue Aug 12, 2014 7:01 pm
Posts: 1054
Do you have the transmission cooling lines running up to the front? I'd check those. Check all connections going in and out of the transmission and transfer case.

_________________
Custom Bumper & Rock Rails-JBA 4.5" Lift-Custom 4.5" HD Springs-16x8 M13 Rims-265/75 Pro Comp MT2s-Yukon 4.56s-Front DTT-Rear OX Air Locker


Top
 Profile

 Post subject: Re: Transmission Fluid Leak
PostPosted: Mon Apr 13, 2015 12:13 pm
Offline
LOST Addict

Joined: Sat Sep 17, 2005 9:56 am
Posts: 1773
Location: Detroit or Ypsilanti, MI
Call me crazy, but I recently had a trans fluid leak, and it just so happened to be the transmission cooler itself. Trans fluid went everywhere.

_________________
Me - '17 KL Trailhawk 4x4, Rhino, P245/65R17 Destination A/Ts, Stock Skids, waiting for mods...
Sis - '18 Cherokee Trailhawk 4x4 - Black - Dents - Scratches - STOCK


Top
 Profile

 Post subject: Re: Transmission Fluid Leak
PostPosted: Mon Apr 13, 2015 1:04 pm
Offline
LOST Member
User avatar

Joined: Wed Feb 12, 2014 12:40 pm
Posts: 154
Location: York, PA
I'm off work tomorrow, so I will try to spend some more time cleaning the old oil to try and figure out where it is coming from. It's not a whole lot of fluid leaking, but I want to pinpoint the leak before it becomes a major problem.

Where do the cooler lines run in to the transmission? are they more towards the top, front? Anyone have a good diagram of the transmission that shows all the connections? maybe I can use that as a checklist to make sure I looked at everything?

_________________
--Erik--
2008 Jeep KK Sport - Red Rock Crystal Pearl
ATH Front Recovery System
3" OME Lift Kit + Al's A-Arms
Cooper Adventurer A/T - 245/75R16


Top
 Profile

 Post subject: Re: Transmission Fluid Leak
PostPosted: Mon Apr 13, 2015 1:44 pm
Offline
LOST Addict
User avatar

Joined: Tue Aug 12, 2014 7:01 pm
Posts: 1054
Starting at the front-you'll see a small heat sink under the front crossmember with two lines (send/return) these lines run along the driver's (ish) side. They plug more in the front and top of the transmission. I'll look for some photos these lines may have made as I was replacing my rack and pinion...

EDIT: can't find anything useful...sorry

_________________
Custom Bumper & Rock Rails-JBA 4.5" Lift-Custom 4.5" HD Springs-16x8 M13 Rims-265/75 Pro Comp MT2s-Yukon 4.56s-Front DTT-Rear OX Air Locker


Top
 Profile

 Post subject: Re: Transmission Fluid Leak
PostPosted: Thu Apr 16, 2015 1:49 am
Offline
LOST Newbie
User avatar

Joined: Sat Aug 30, 2014 2:27 pm
Posts: 63
Location: The 49th
Just had my tranny coolant lines replaced under warranty... they were leaking right at the fitting.

_________________
2011 KK 4x4 Sport
- Green Pearl
- Mopar Skid Plates
- Blacked-out Headlights


Top
 Profile

 Post subject: Re: Transmission Fluid Leak
PostPosted: Thu Apr 16, 2015 9:04 am
Offline
LOST Member
User avatar

Joined: Wed Feb 12, 2014 12:40 pm
Posts: 154
Location: York, PA
I haven't had any time to find the leak yet. I think the coolant lines are the first place I'm going to look when I get back under there. I have read a lot, and seems quite a few people have a leak from there.

meanwhile, the Jeep is parked in my driveway, and I'm driving my wife's Dodge Journey back and forth to work and school.

_________________
--Erik--
2008 Jeep KK Sport - Red Rock Crystal Pearl
ATH Front Recovery System
3" OME Lift Kit + Al's A-Arms
Cooper Adventurer A/T - 245/75R16


Top
 Profile

 Post subject: Re: Transmission Fluid Leak
PostPosted: Tue Apr 21, 2015 11:56 am
Offline
LOST Member
User avatar

Joined: Wed Feb 12, 2014 12:40 pm
Posts: 154
Location: York, PA
so I'm about 90% certain the leak is coming from the seal between the transmission and the transfer case adapter. It's hard to tell for sure with the crossmember in the way, but there's really no other place it could be coming from. Anyone have any experience replacing this seal? I know I'd have to pull the driveshafts, the t-case, t-case adapter, and the crossmember to get to it, but not sure if it's worth it, or if I should just shell out the money and let the dealership do it ($300 labor for a $20 part... :roll: ).

_________________
--Erik--
2008 Jeep KK Sport - Red Rock Crystal Pearl
ATH Front Recovery System
3" OME Lift Kit + Al's A-Arms
Cooper Adventurer A/T - 245/75R16


Top
 Profile

 Post subject: Re: Transmission Fluid Leak
PostPosted: Tue Apr 21, 2015 3:25 pm
Offline
Lifetime Member
Lifetime Member

Joined: Sat Apr 01, 2006 9:38 pm
Posts: 12988
Location: Colorado Springs
Erikg84 wrote:
so I'm about 90% certain the leak is coming from the seal between the transmission and the transfer case adapter. It's hard to tell for sure with the crossmember in the way, but there's really no other place it could be coming from. Anyone have any experience replacing this seal? I know I'd have to pull the driveshafts, the t-case, t-case adapter, and the crossmember to get to it, but not sure if it's worth it, or if I should just shell out the money and let the dealership do it ($300 labor for a $20 part... :roll: ).

Which seal is leaking? You got the trans output seal and the t-case input seal and you should replace both when your in there.Both use ATF+4 so could be either one.


Top
 Profile

 Post subject: Re: Transmission Fluid Leak
PostPosted: Tue Apr 21, 2015 4:17 pm
Offline
LOST Member
User avatar

Joined: Wed Feb 12, 2014 12:40 pm
Posts: 154
Location: York, PA
It's leaking from here, but towards the bottom, middle of the transmission. Correct me if I'm wrong, but both of the seals you mentioned are located within this adapter, right? the trans output towards the front, and the t-case input towards the rear. I haven't had the chance to take it to the dealer to check the transmission fluid levels, but I did check the t-case levels, and they were fine, which is telling me that the t-case seal is not leaking.

From what I understand, there should not be any fluid in the adapter itself, the fluid I'm seeing is from the trans output seal, and leaking through a weep hole in the adapter.

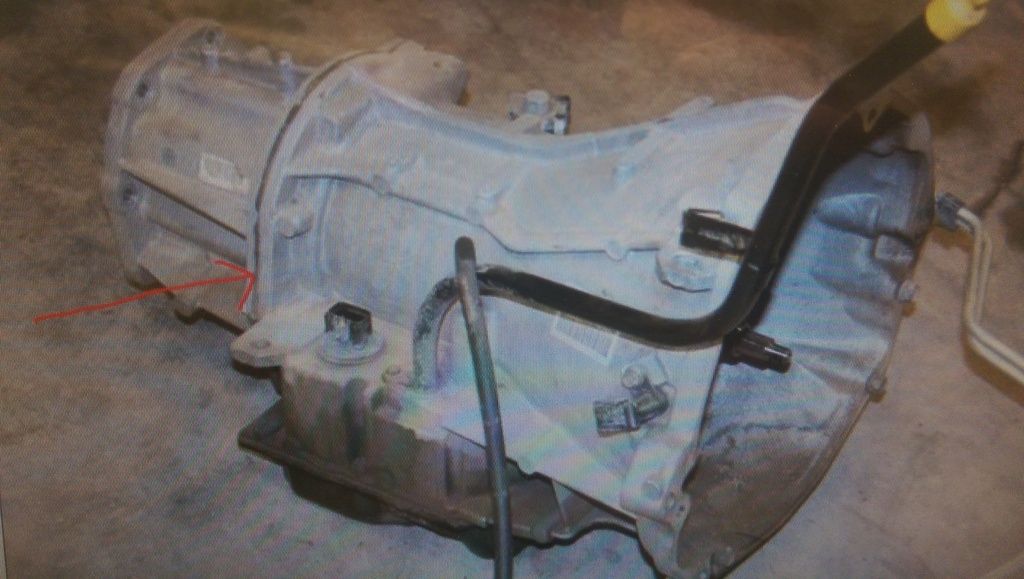

Sorry for the crappy pic... I found it on google.

Image[/URL]

_________________
--Erik--
2008 Jeep KK Sport - Red Rock Crystal Pearl
ATH Front Recovery System
3" OME Lift Kit + Al's A-Arms
Cooper Adventurer A/T - 245/75R16


Top
 Profile

 Post subject: Re: Transmission Fluid Leak
PostPosted: Thu Apr 23, 2015 1:51 am
Offline
LOST Newbie

Joined: Fri Aug 16, 2013 4:09 am
Posts: 26
Just had my 11 KK on the rack for tire rotation and my pan gasket is leaking. It only has 34k on it and I find it incredible that it is leaking since I had the tranny rebuilt by the stealership about 4K ago. Guess it goes back to them but you may look at the gasket.


Top
 Profile

 Post subject: Re: Transmission Fluid Leak
PostPosted: Thu Apr 23, 2015 2:37 pm
Offline
Lifetime Member
Lifetime Member

Joined: Sat Apr 01, 2006 9:38 pm
Posts: 12988
Location: Colorado Springs
70AnvKK wrote:
Just had my 11 KK on the rack for tire rotation and my pan gasket is leaking. It only has 34k on it and I find it incredible that it is leaking since I had the tranny rebuilt by the stealership about 4K ago. Guess it goes back to them but you may look at the gasket.

There shouldn't be a gasket between the trans pan and trans case,if there is that is the reason for the leak.ATF safe RTV only.
