 Post subject: Rear LOWER Control Arms Options on KJ
PostPosted: Tue Nov 05, 2019 10:47 pm
Offline
Moderator
Moderator
User avatar

Joined: Sat Aug 24, 2013 11:36 pm
Posts: 5615
Location: Central GA
In case anyone needs this information.

Measured the factory Mopar replacement Rear Lower Control Arm sent for the recall.

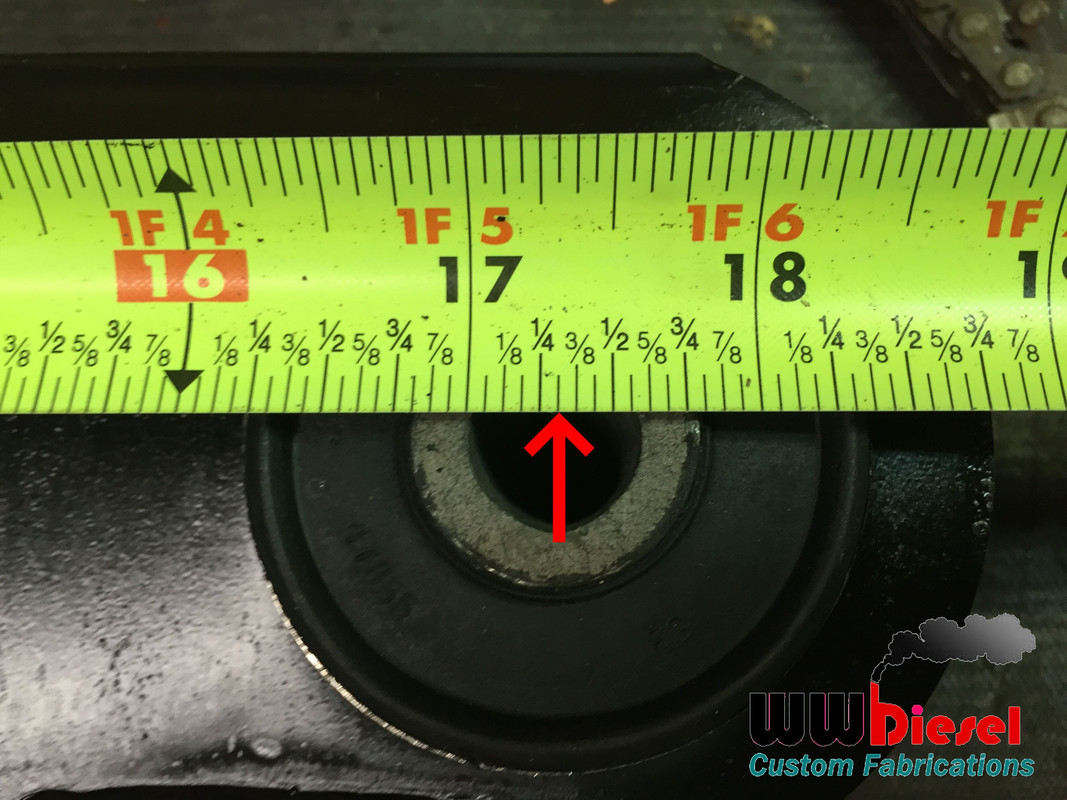

Center to center of eye, 17 5/16" as pictured below.

IronRock sales some adjustable rear lower control arms for the WJ, they are adjustable for Length range 15 3/4" to 19 3/8"
Fixed on one end, adjustable HEIM Joint on other end.
Would have to figure out how to mount the sway bar to them. (weld on some mounting plates?)
This option would allow more pinion angle adjustment for lifted vehicles along with some tracking adjustment if needed.



_________________
Supporting Vendor and Moderator of LOST
05 Jeep Liberty CRD Limited :JEEPIN:
Ironman Springs/Bilstein/shocks
Yeti StgIV Hot Tune
Sasquatch BatteryTray
No FCV/EGR
Samcos/ProVent
SunCoast/Transgo
Carter Intank-pmp
2mic.Sec.Fuel Filter
Flowmaster/NO CAT
V6Airbox
GM11 bld. fan/NAPA HDclutch
IronrockArms/wwdieselMount


Top
 Profile

 Post subject: Re: Rear LOWER Control Arms Options on KJ
PostPosted: Wed Nov 06, 2019 10:42 pm
Offline
LOST Member

Joined: Fri Apr 08, 2011 3:21 pm
Posts: 244
Location: Chillicothe, Ohio
Try Doberman racing.....a little pricey though.

_________________
________
06 Renegade, 265-70-16 Duratracs on Moab's/OMF, RL sliders ,roof rack, On board air, JBA-UCA, adjust-a strut, Rear-OME 948 two uppers ,Sensatrac shocks, Boiler rad. skid, Mopar/4x guard skid,Terra-flex 4:1,HD cooling,more lights, gauges. ARB/Warn, Mudds Rear Bumper.


Top
 Profile

 Post subject: Re: Rear LOWER Control Arms Options on KJ
PostPosted: Thu Nov 07, 2019 1:26 am
Offline
LOST Junkie

Joined: Sat Apr 17, 2010 3:29 pm
Posts: 952
FOLLOWING...
