I believe the correct thread for the wheel lugs is 1/2 x 20. I had an original lug nut fail, the chrome cover came off, which is probably okay after 20 years of northeast salt and grime. I ordered new ones, Dorman brand, from Amazon (sorry, my bad). The ones they sent did not fit. It looked about right, fit the wrench, but I only got about 1/4 turn before it bound up. The studs are in good shape.

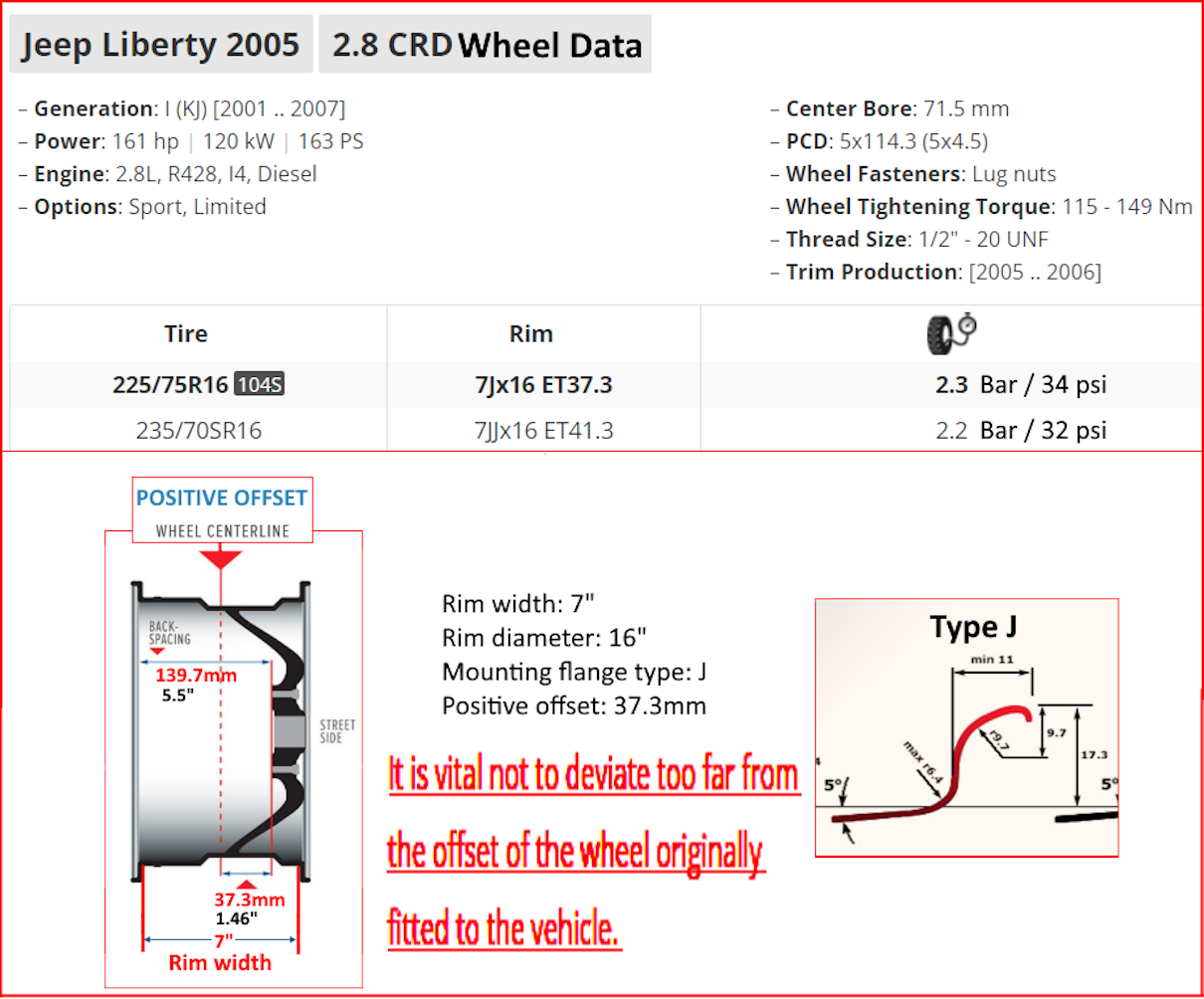

I looked carefully at the nut and it is stamped 12 x 1.5. So obviously it is a metric nut, very close to 1/2 x 20, but obviously not close enough. I sent them back, no problem I assume. But I got to wondering. I actually found a website, wheeloffset.net, that lists the spec for Jeep lugs as both M12-12 and 1/2-20.

https://wheeloffset.net/lugnuts/jeep/liberty/2006/

So it got me thinking, and I have a few questions:

Is there any way this is right? Had I forced the nuts, would they have held without damaging the studs?

Did Amazon just say, well the size is close enough, we’ll just send this one?

Assuming the size is not okay, is wheeloffset.net just mistaken? Were Jeeps produced with both sizes?


All just idle curiosity now; I’m buying the right size.

Thanks.

_________________
2006 Liberty CRD.

Everything I have on file says 1/2 x 20 UNC thread.

_________________
Supporting Vendor and Moderator of LOST
05 Jeep Liberty CRD Limited
Ironman Springs/Bilstein/Shocks
Yeti StgIV Hot Tune
Week's BatteryTray
No FCV/EGR
Samcos/ProVent
SunCoast/Transgo
Carter Intank-pmp
2mic.Sec.Fuel Filter
Flowmaster/NO CAT
V6Airbox/noVH
GM11 Bld.fan/HDClutch
IronrockArms/wwdieselMount
98 Dodge Cummins 24 Valve

Thanks VW. So I wonder, does a guy that runs a wheel website really not know that?! Was AI involved? Does AI not know that? Did Amazon make a mistake, or did they just not care and figure I would keep the wrong nuts? All so strange.

_________________
2006 Liberty CRD.

No Idea! But what I gave you is legit.

_________________
Supporting Vendor and Moderator of LOST
05 Jeep Liberty CRD Limited
Ironman Springs/Bilstein/Shocks
Yeti StgIV Hot Tune
Week's BatteryTray
No FCV/EGR
Samcos/ProVent
SunCoast/Transgo
Carter Intank-pmp
2mic.Sec.Fuel Filter
Flowmaster/NO CAT
V6Airbox/noVH
GM11 Bld.fan/HDClutch
IronrockArms/wwdieselMount
98 Dodge Cummins 24 Valve

I have found a little gorilla glue works wonders to hold the aluminum cap on.

_________________
20 year owner of Libby CRD!
2006 LTD Bright Silver loaded with all the needed mods, CCV intact.
Equipped with HDS thermostat, plenty of heat, faster warm-ups, increased fuel mileage.

Thanks Flman. The lug nut was pretty tight, and in getting it loose I kind of twisted off the aluminum cap, and mangled it in the process. I plan to replace all the nuts with solid ones.

_________________
2006 Liberty CRD.
