Well I have 31/10.5R15s on my Libby and it was rubbing bad! So I decided to do some cutting and welding on my libby! I ended up cutting the pinch weld
completely off and grinding it down.

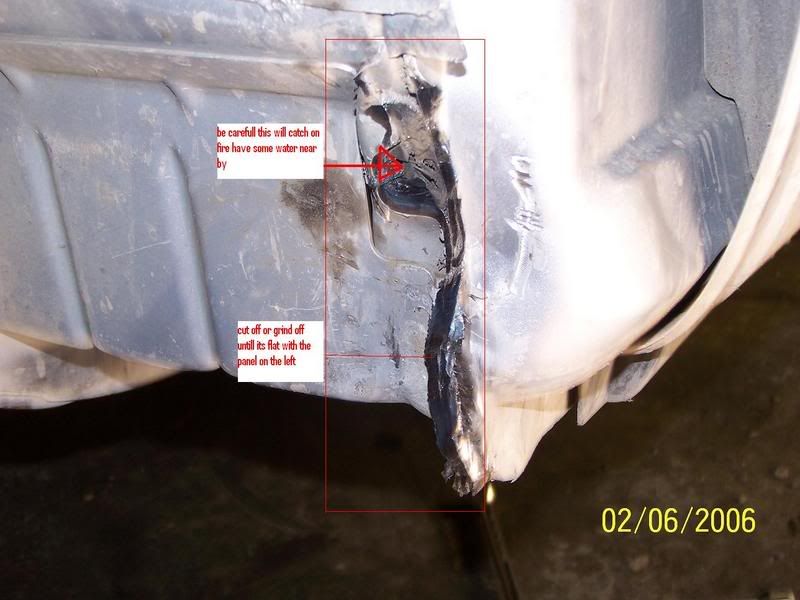

If Your weld is folded then un fold it and cut it down till its flat also you will be cutting a bit off the top to left side if weld I cut it off about 4 inches from the bottom.

once that is done it should look something like this

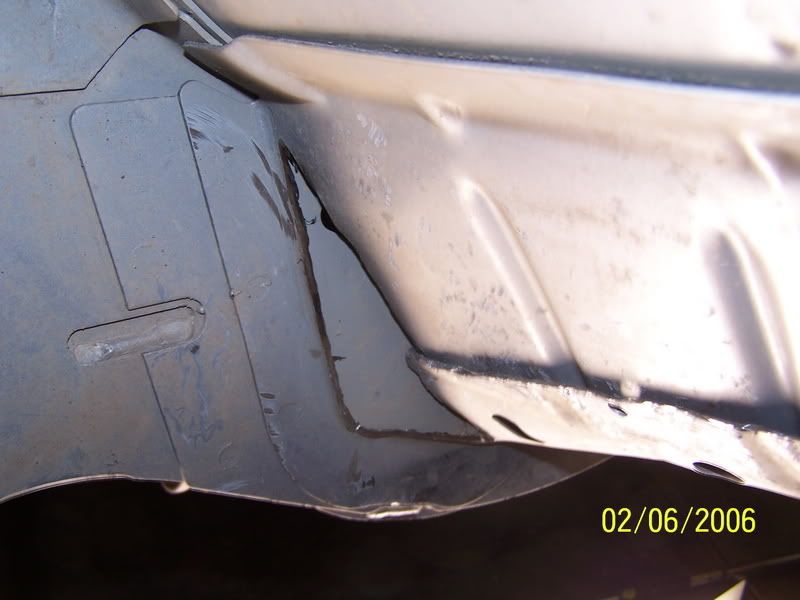

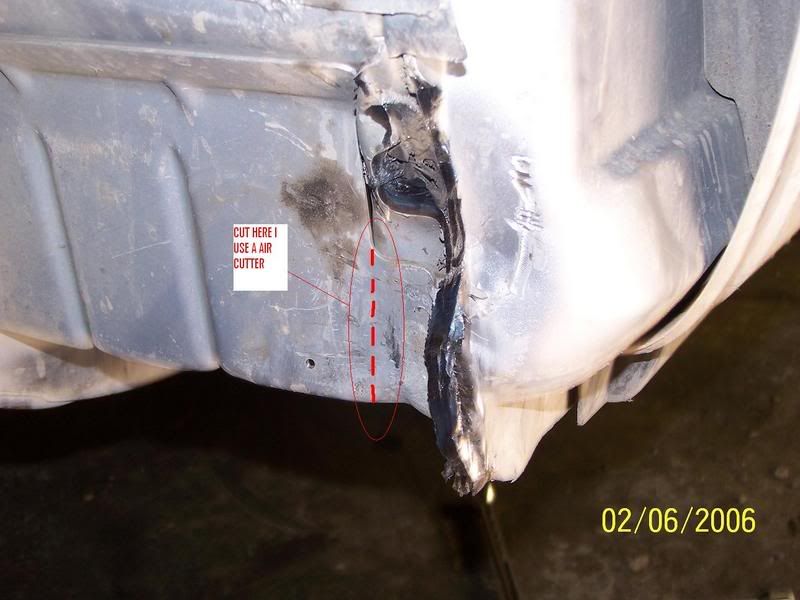

Next I worked on the wall to the left of the pinch weld I used a Air Cutter to do this.

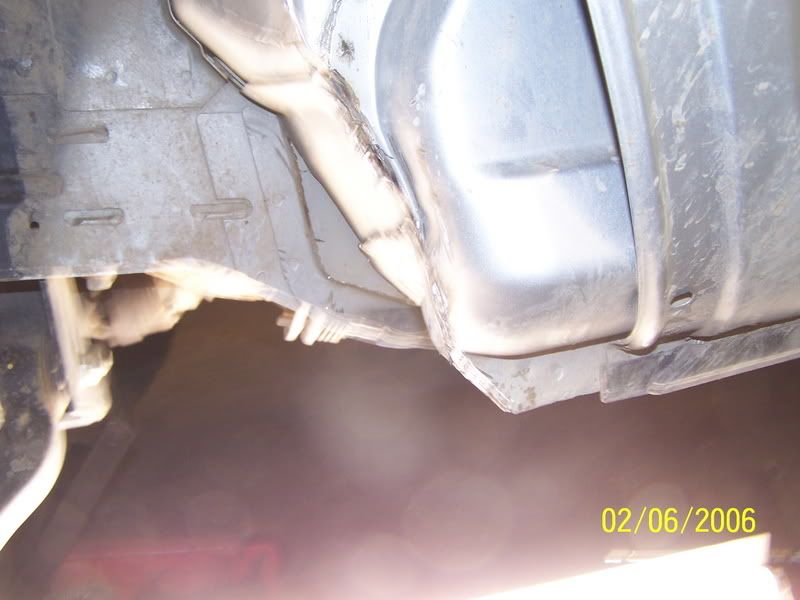

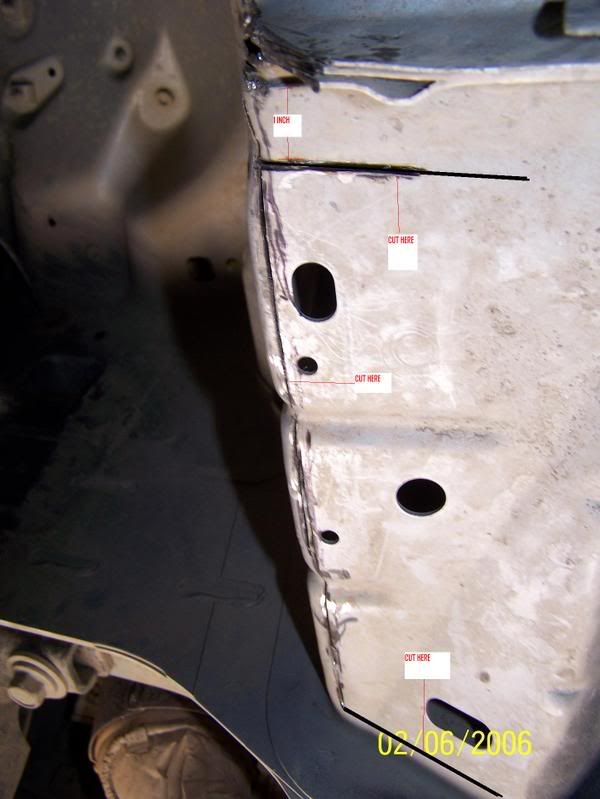

Next Cut the one and right up against the wall to the far left ( Remember this is the driver side of the Jeep) Next your going to do the bottom cuts!^

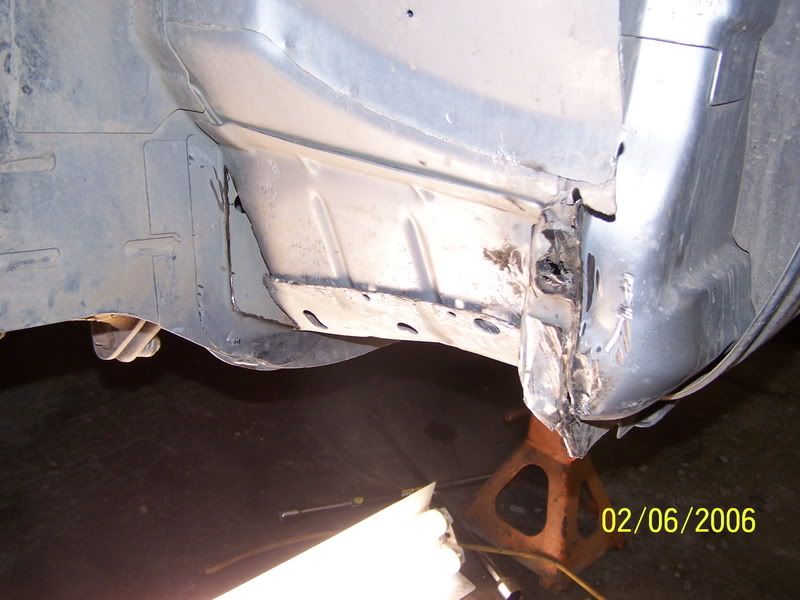

Once the bottom Cuts are done you will need to do some hammering I used are very large Sludge Hammer and beat the crap out off the pinch weld, the upper wall IN and the bottom wall UP! It look like this after the hammering.

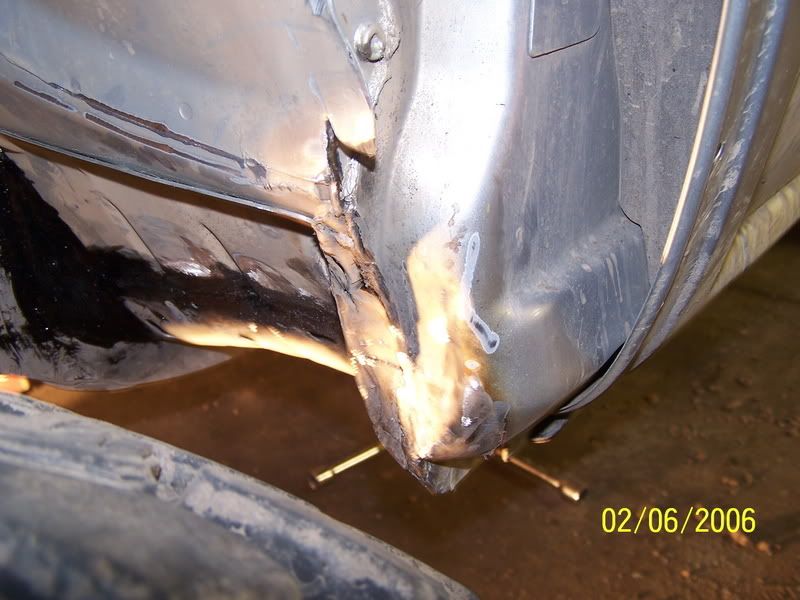

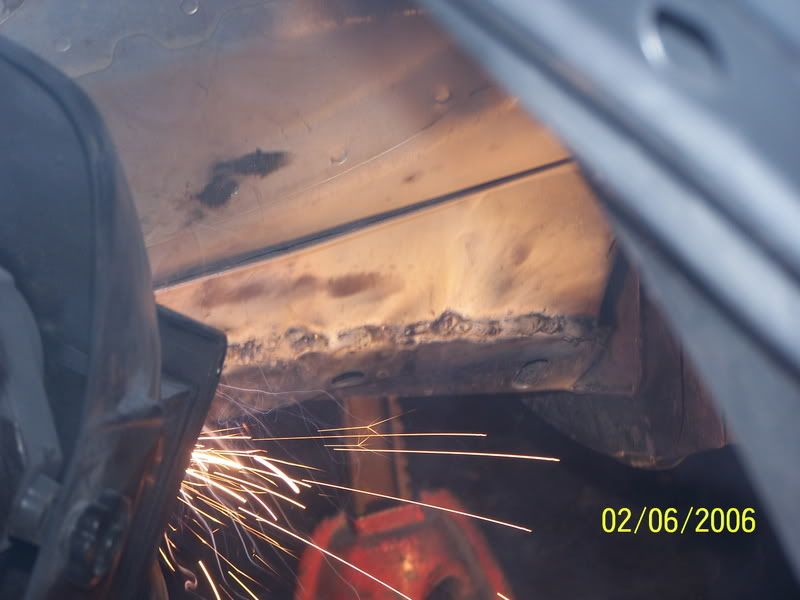

Once all that is done you will need a Migwelder..... Weld all that up and fill in the dents on the pinch weld then grind it so it looks good and fill some more. till its nice and smooth.

once my welds looked good and was smooth I used this Windo-Weld Super Fast Urethane.

I covered all the weld filled all the holes and the whole area where the pinch well was.

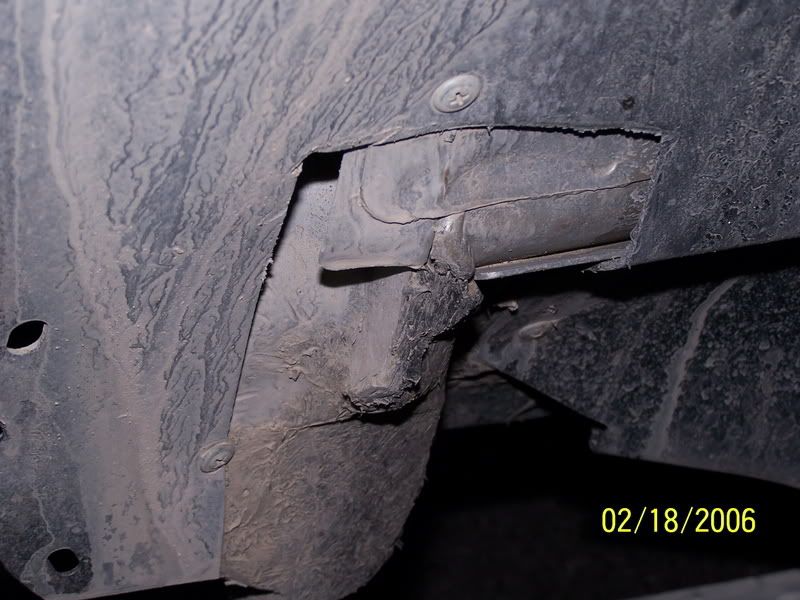

Then I did some cutting on the liners that was very easy after I reinstall the liners and flares I used some self tapping screws to push the liner up inside there so the tire will not hit the wall or the liner. Final results looked like this.

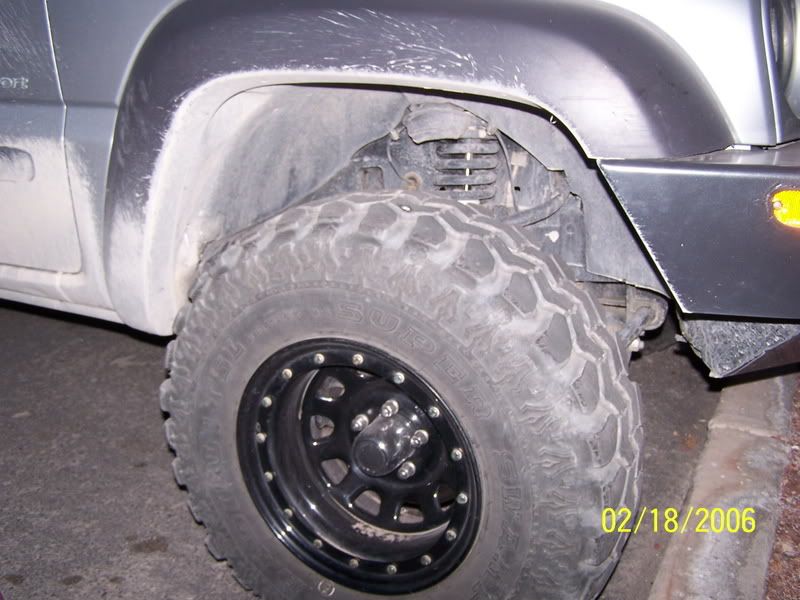

this is after 2 weeks of driving and playing in the desert


ALL 3 PICS ARE OF THE PASSENGER SIDE OF JEEP.

I still have some work to do on the Flares. I think over all it was worth it they have not rubbed since the work was done but i have lots of work for the rear to do still.

_________________
2003 KJ Sport

Frankenlift with Spacer in the rear
Jeepin Al's A-Arms
31x10.5R15 Super Swampers TSL Radials
ARB Front Bumper
Warn Winch M8000
Rock Lizard Fab Rear Bumper

Nice looking KJ.Good job on the front wheelwells,at least you welded everything up,hope it works out good.What is the BS on those rims?I ran those same rims but in 16X8 with 3.75" BS,I had to switch to 16X7 with 4.25" BS to get ride of rubbing up front with 265/75R16's.The back is a pain in the rear,I had to remove the rear flares and hammer the outer edge up and out of the way.Now the rear tires tuck nicly in the rear with the inner liners taken out.Just thought I'd share what I did in the rear,if you come up with a better idea please let me know.Again looking good.

They are Series 152 Wheels 5 on 4 1/2s.


Thanks ya thats kinda what i was planning on doing with the rear end do you have any of the spacers you can get from all J for the rear? I have 1 and was thing about getting one more so i have 2 on each side.

_________________
2003 KJ Sport

Frankenlift with Spacer in the rear
Jeepin Al's A-Arms
31x10.5R15 Super Swampers TSL Radials
ARB Front Bumper
Warn Winch M8000
Rock Lizard Fab Rear Bumper

Nice write-up. I always appreciate it when ppl who take time while doing jobs to take detaled pix and share them with less experienced noobs such as myself.

Thanks!!!

_________________
[_|_, [""""""]
l--- L---ollllllo-
( )_)-( )_)-o-)_) Liberator

....o_o_o_o
../| ,[_____],
|¯¯¯L--↨|||||||↨
()_)¯ ()_) ¯¯¯ )_)

(\__/)
(='.'=) <]{
(")_(")

( . )( . )

Hare on my Chest

I love it looks tough as nails great walk through as well

_________________
Shawn

04 liberty Sport 3.7L with tow package
Rusty's 2.5 coil w/science guy mod and OME Long shocks
Rusty's engine/tranny & transfer case skids
245 75 R16 Timberline MTs
More in the plans
Lockers and rocker guards soon

"What we do in life echoes in eternity"

3505

Very nice! I'm sure that people who'll try this out will appreciate the "be careful it might catch on fire part". Hope you had the water close by.
